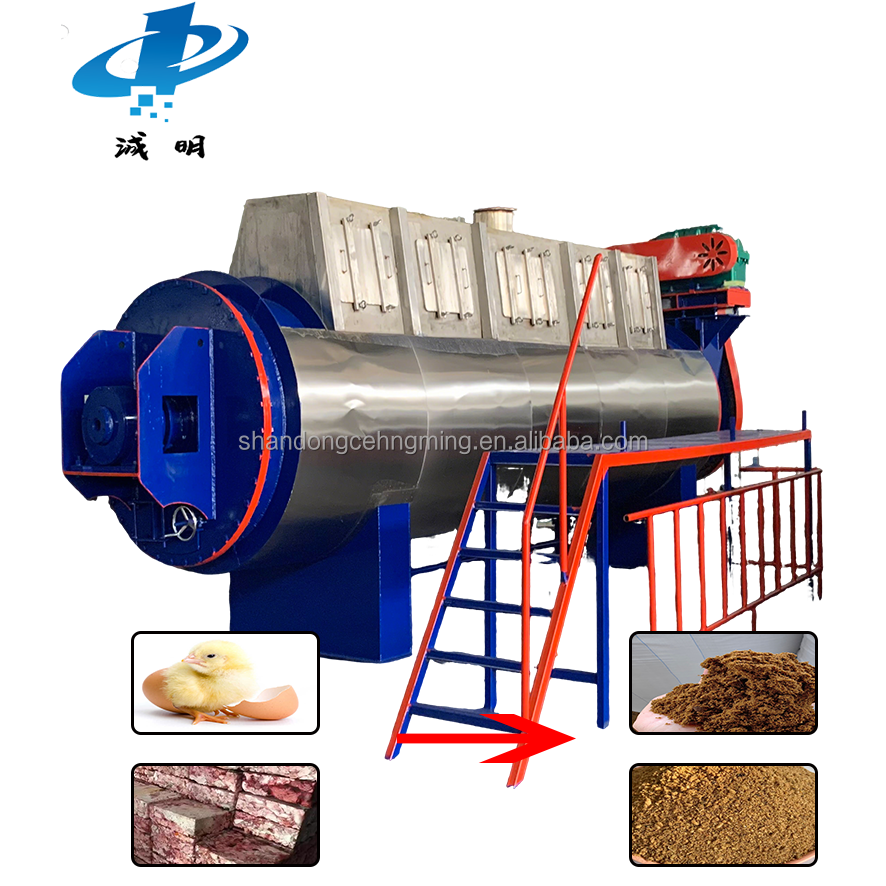

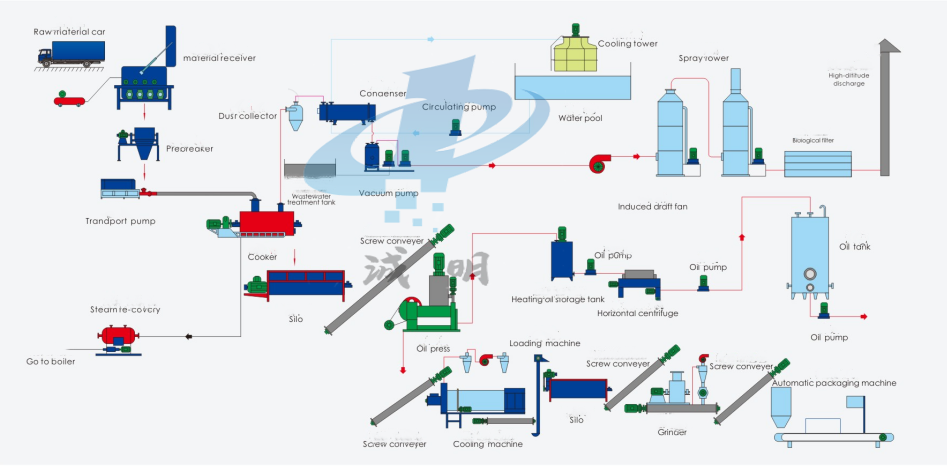

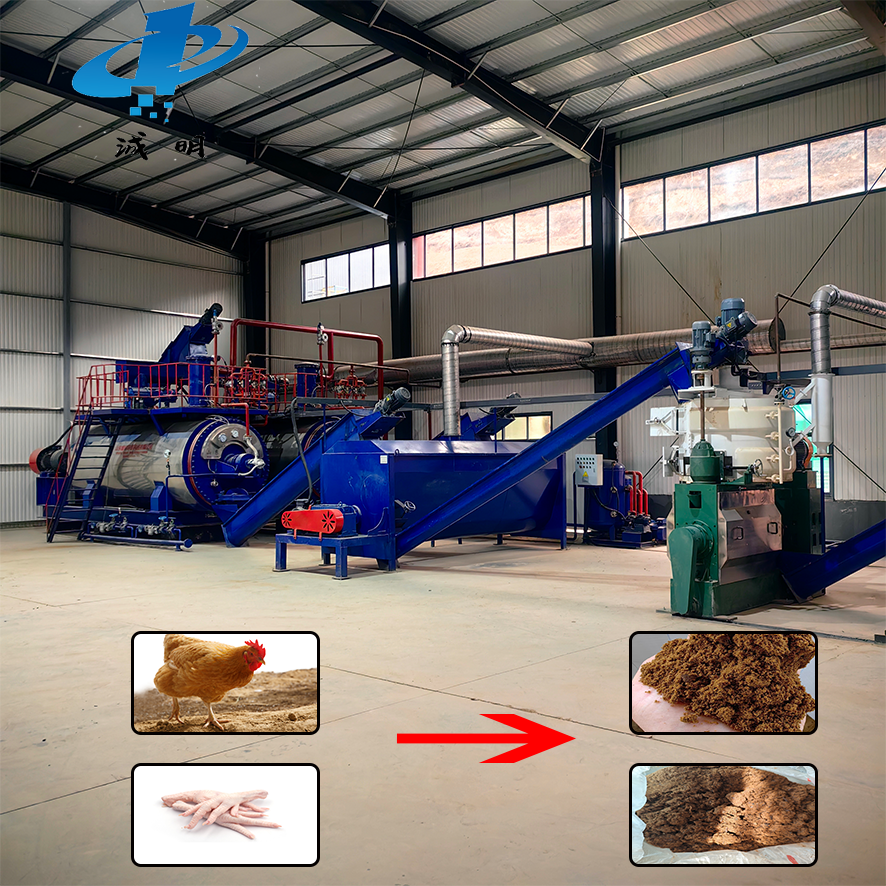

The equipment adopts high temperature and high pressure drying process, using steam as the heat source, heating in the compartment, first using high temperature and high pressure to kill all pathogens in the animal body, and then using low temperature vacuum drying treatment, and finally get meat and bone meal dry products, feather meal and animal oil.

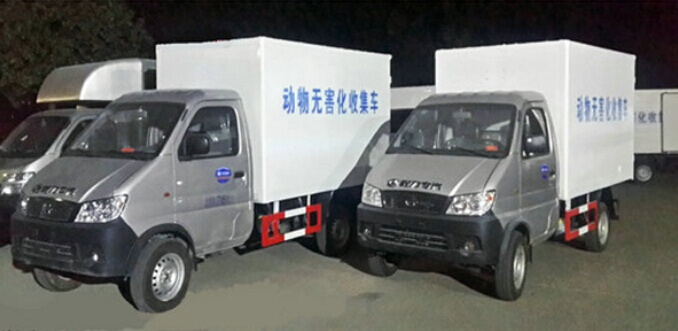

The closed turnover box is used for the transportation of animal carcasses to prevent the spread of pathogens. It is easy to load and unload, avoiding direct contact with diseased animals.
Timely treatment of animal carcasses directly into pre-crushing equipment. Temporary storage is available in cold storage areas for processing queues.

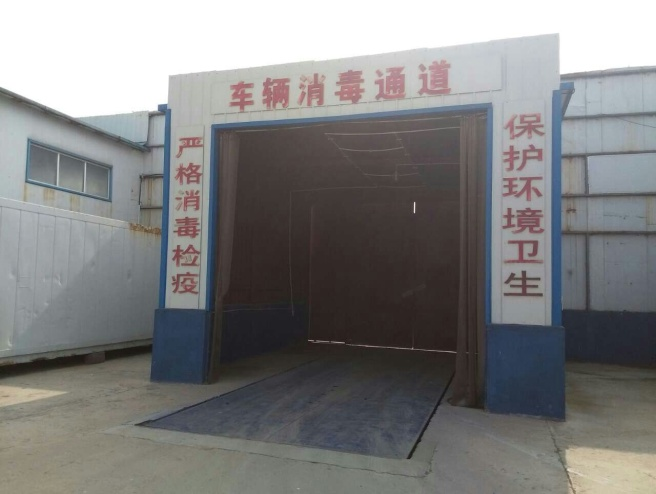

After unloading, transport vehicles and containers enter the disinfection channel for thorough cleaning.

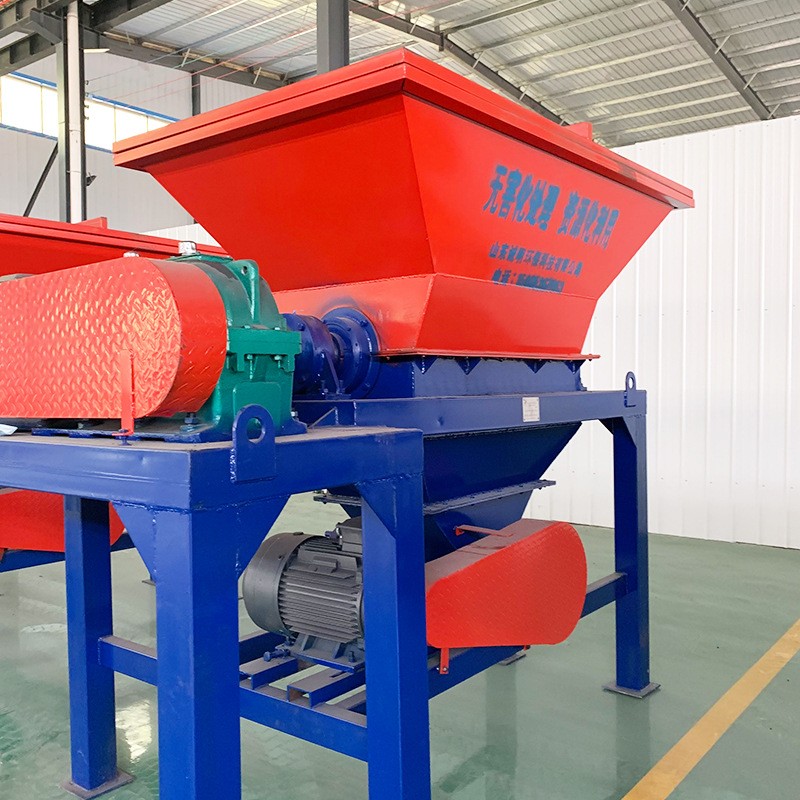

Carcasses of sick animals and poultry are pre-broken by a special crusher for further processing.

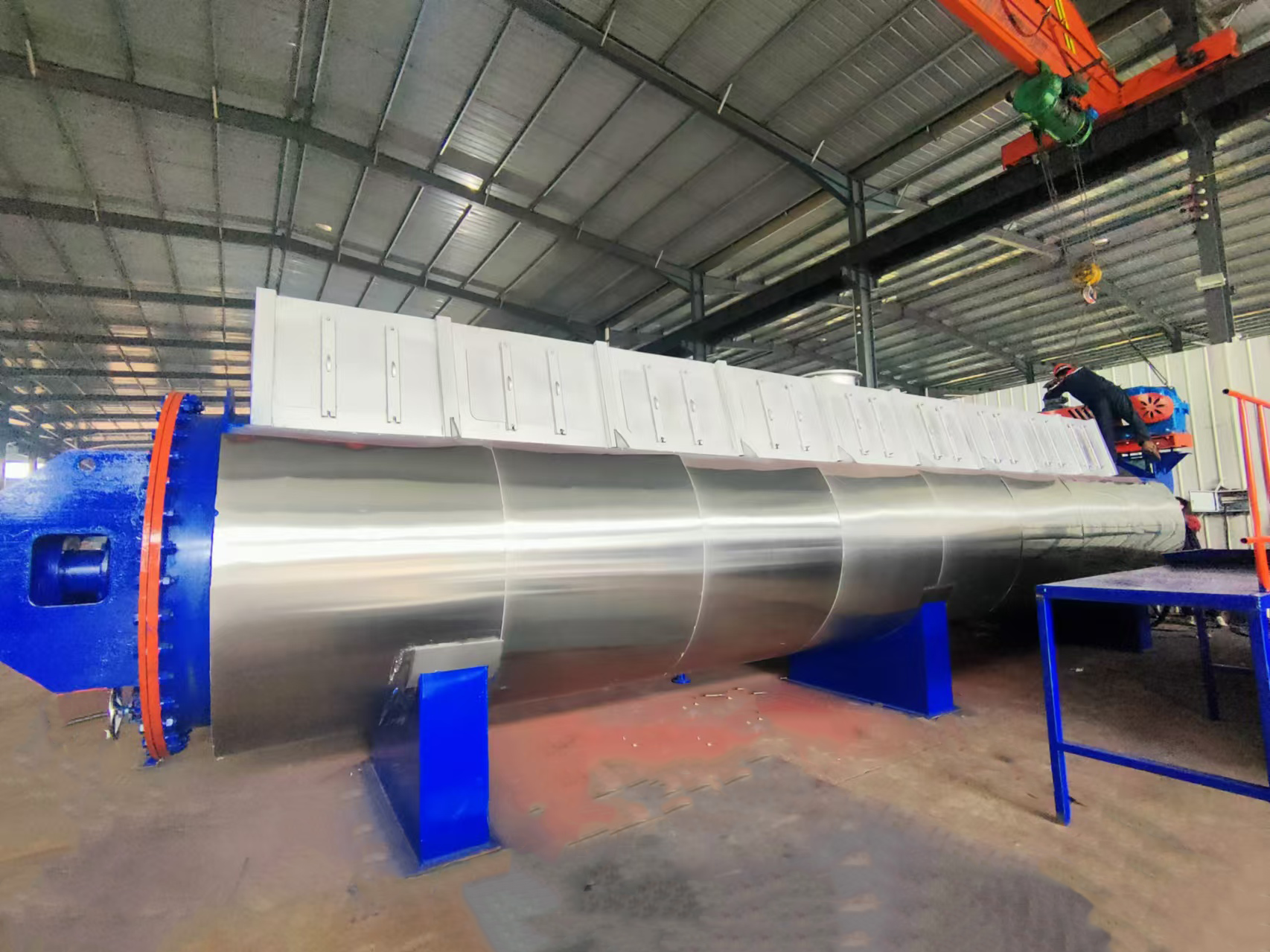

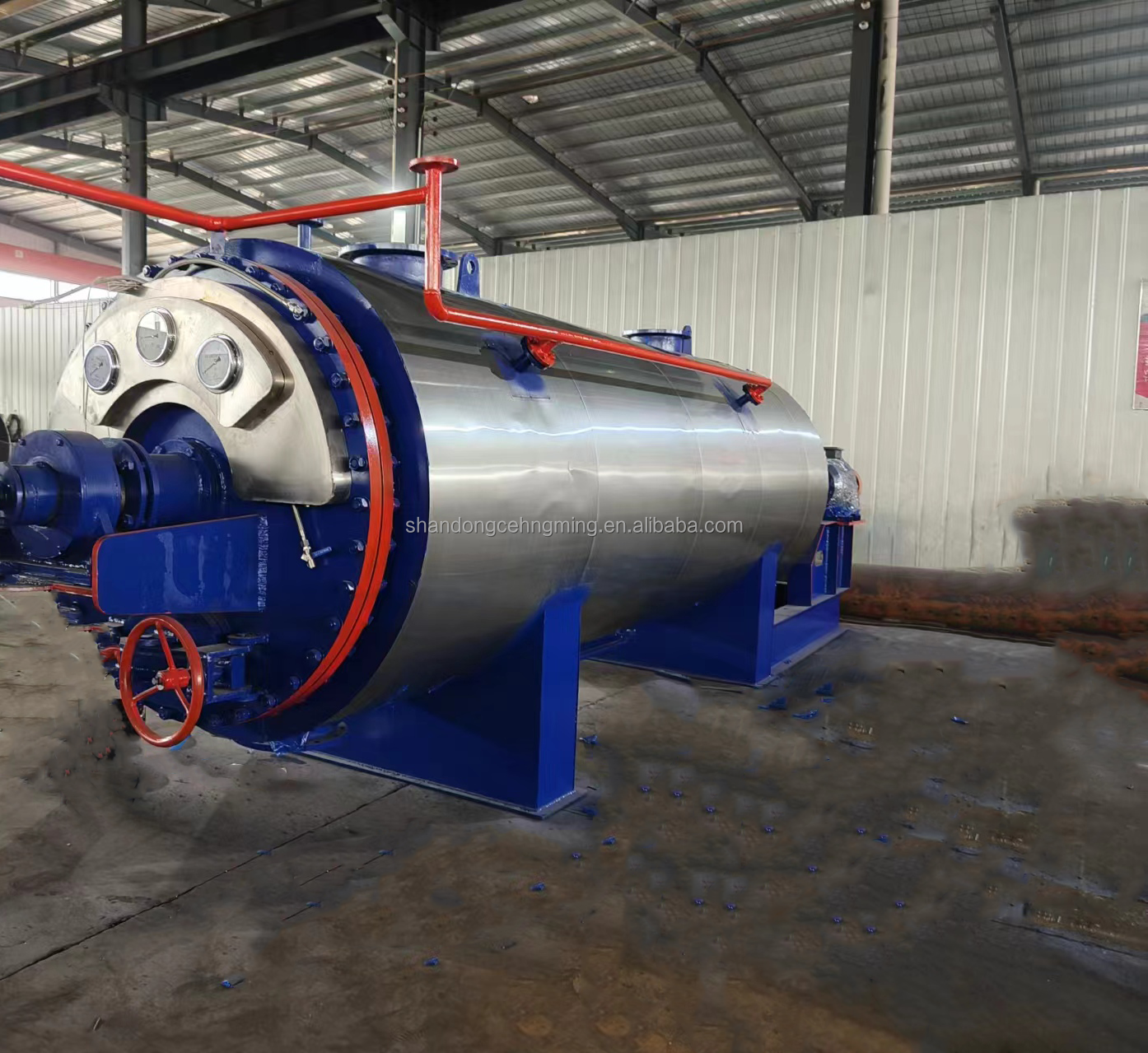

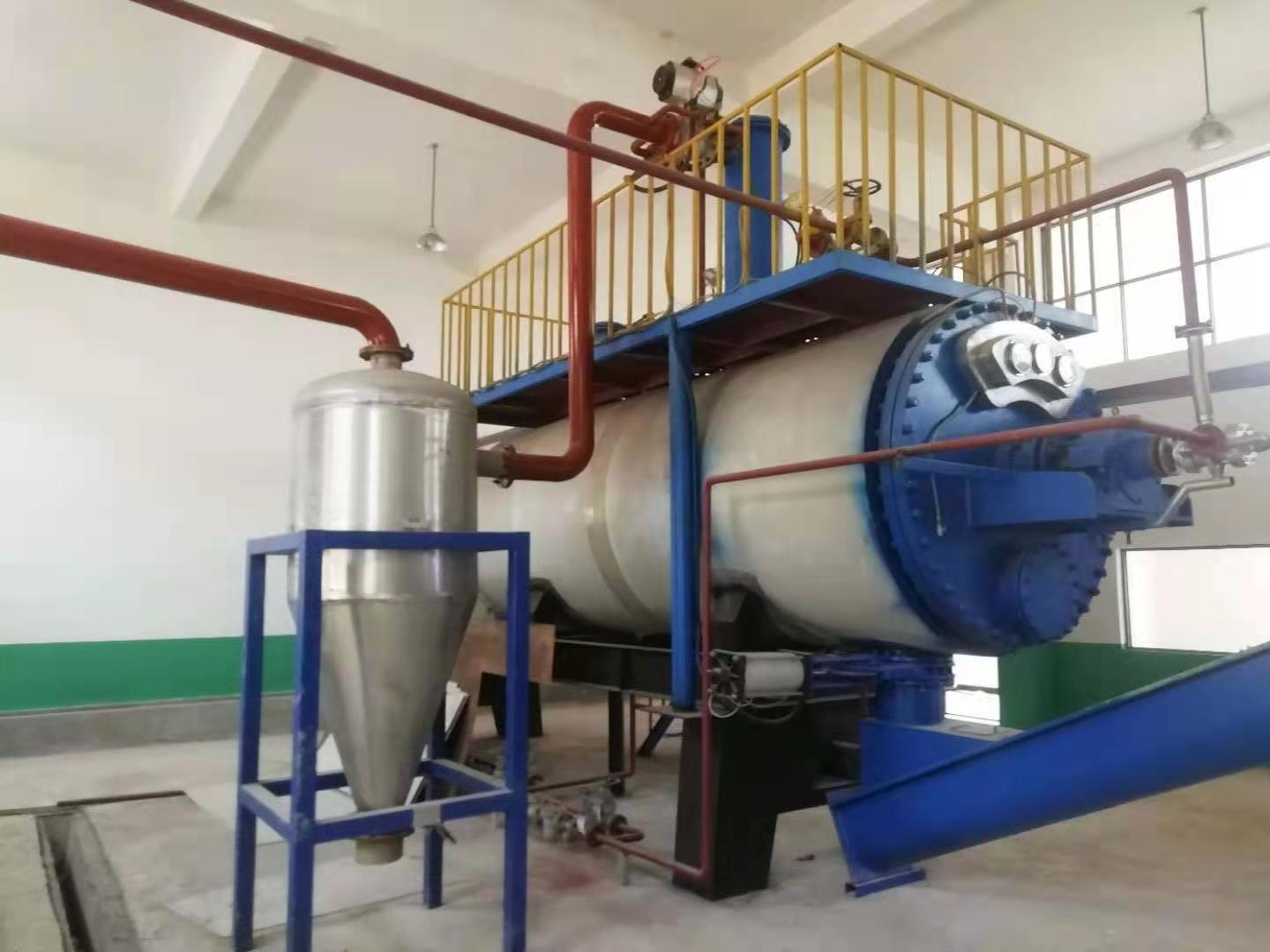

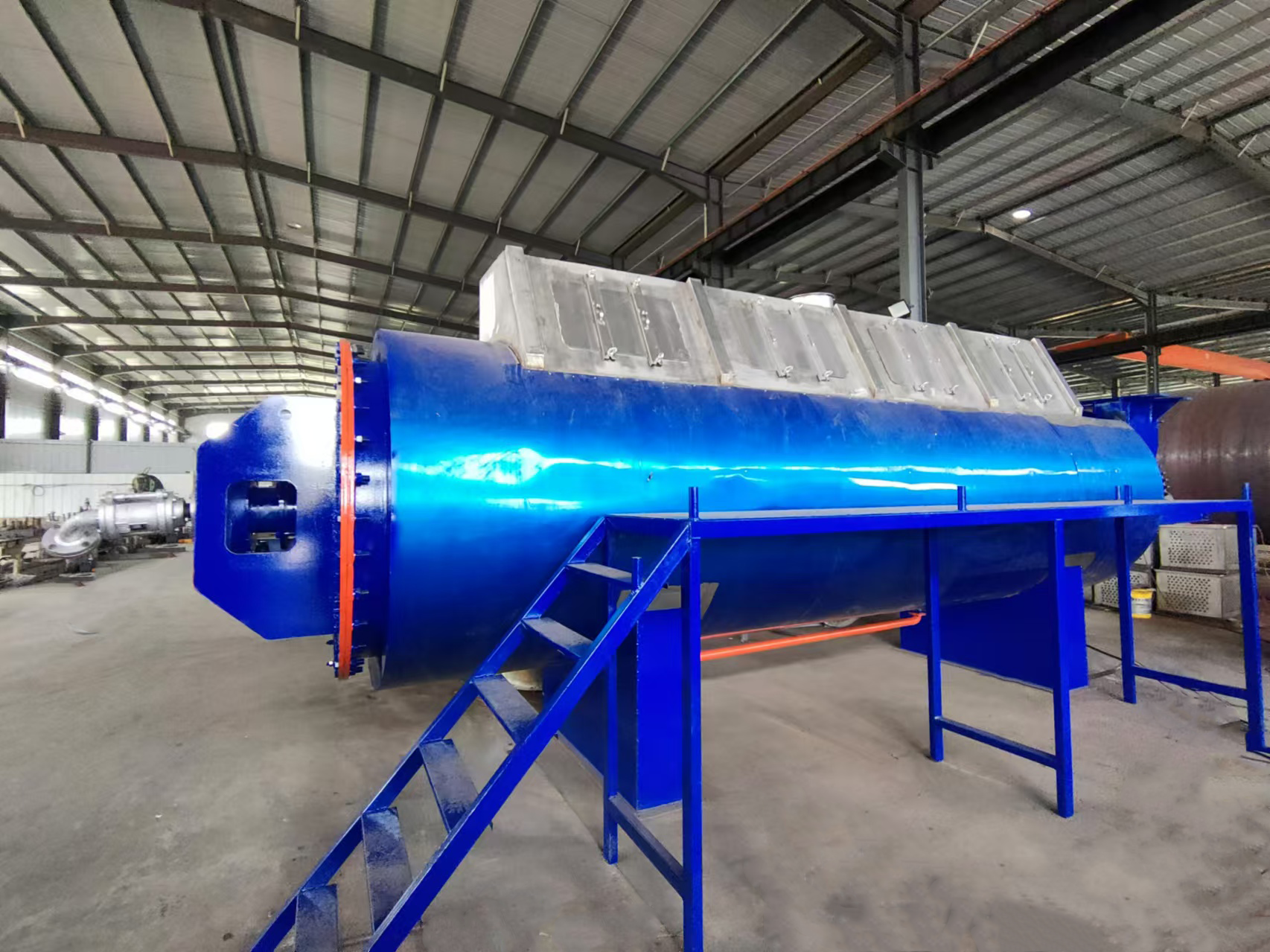

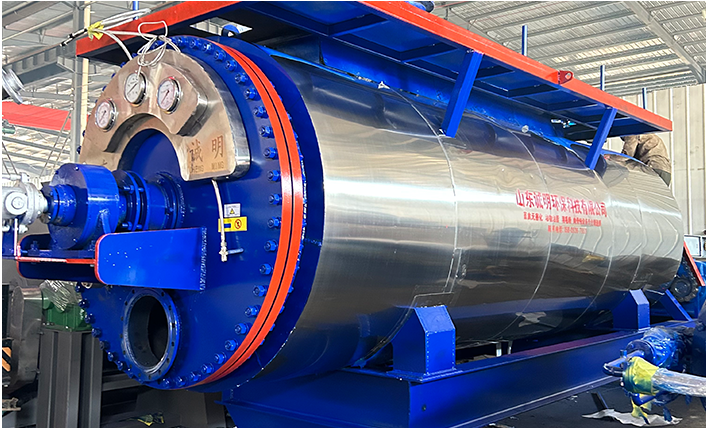

Broken carcasses are transported to the chemical tank via a vacuum feed pump for autoclave treatment.

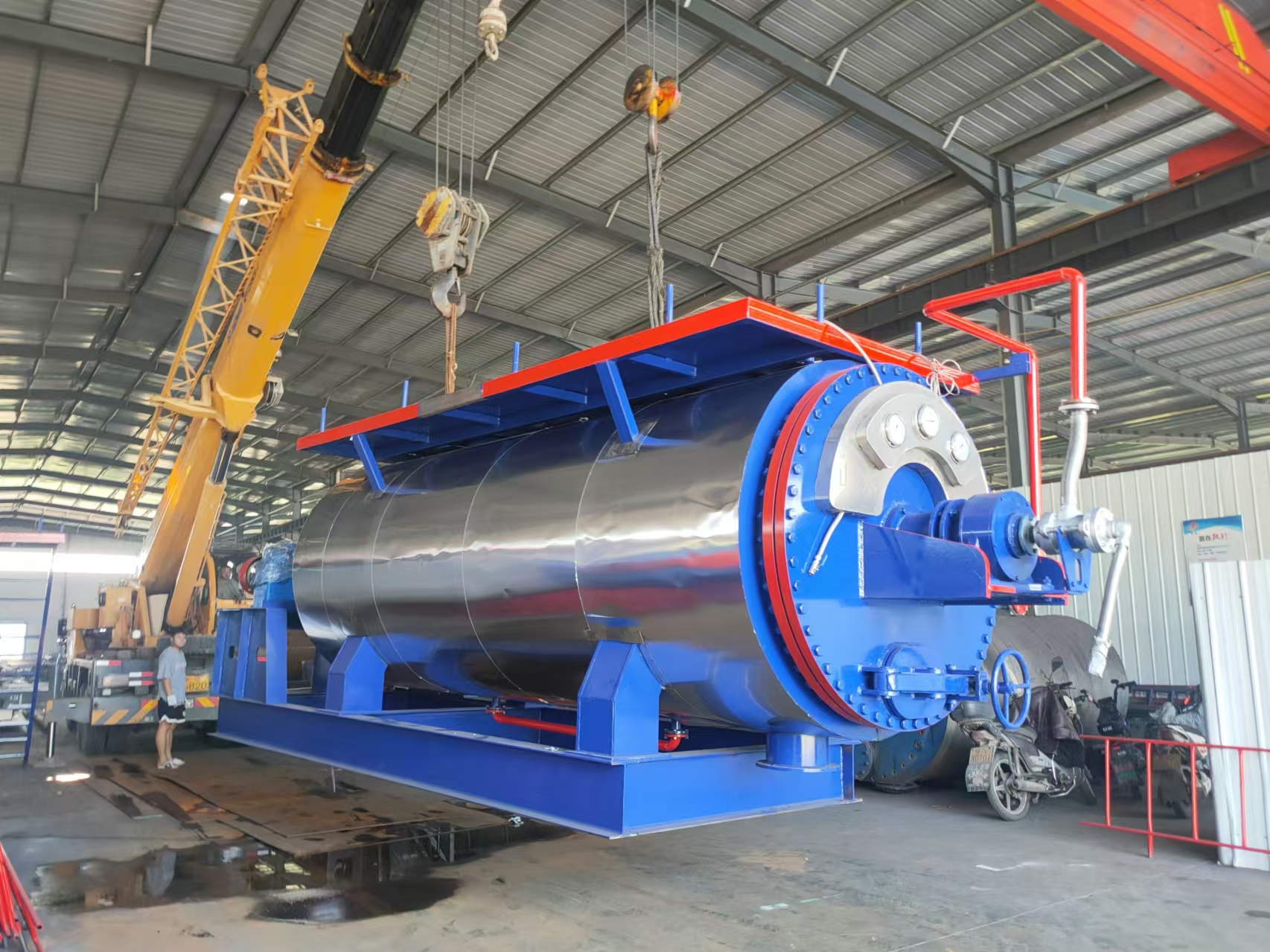

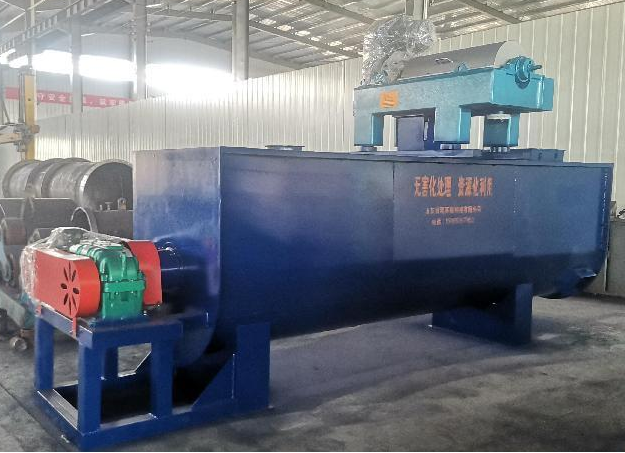

After sterilization, materials are sent to the dryer for final high-temperature drying.
Temporary storage area for the dried final materials.

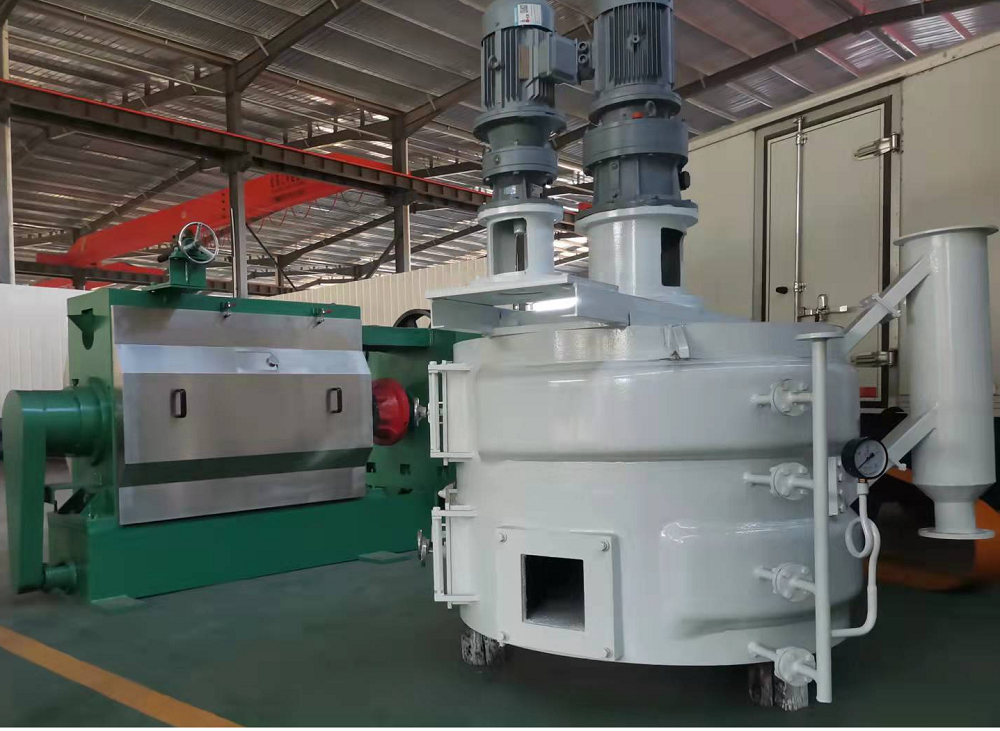

Degreases the dried material to reduce residual oil and moisture, improving product value and storage life.

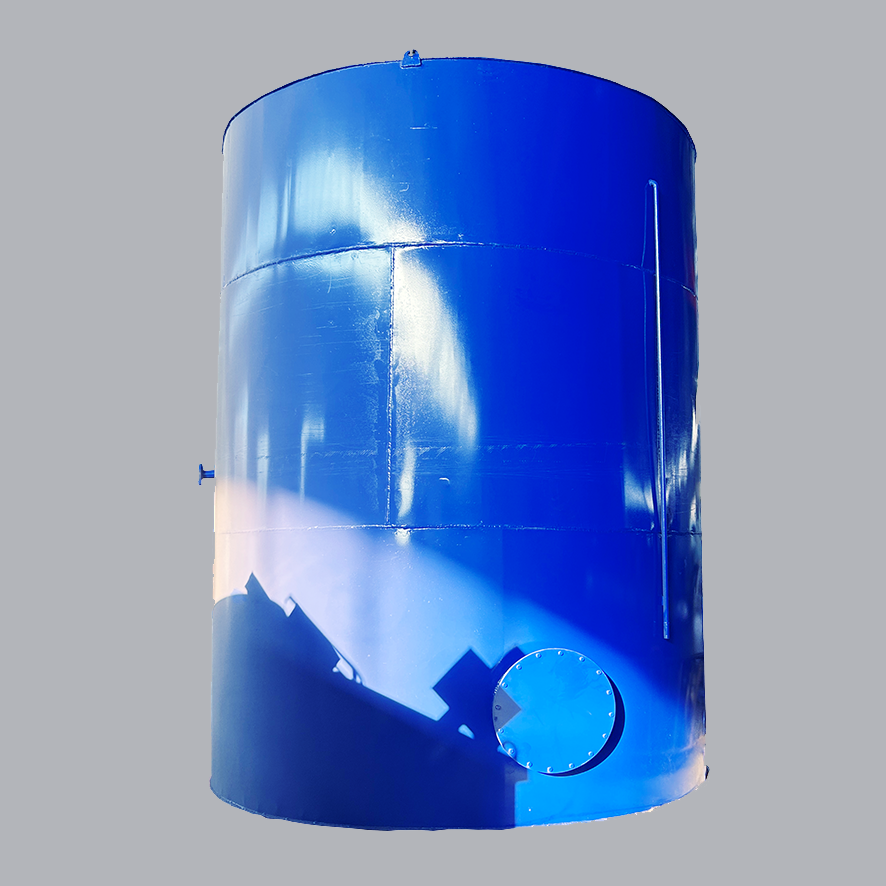

Stores oil with an internal heating system to prevent solidification.

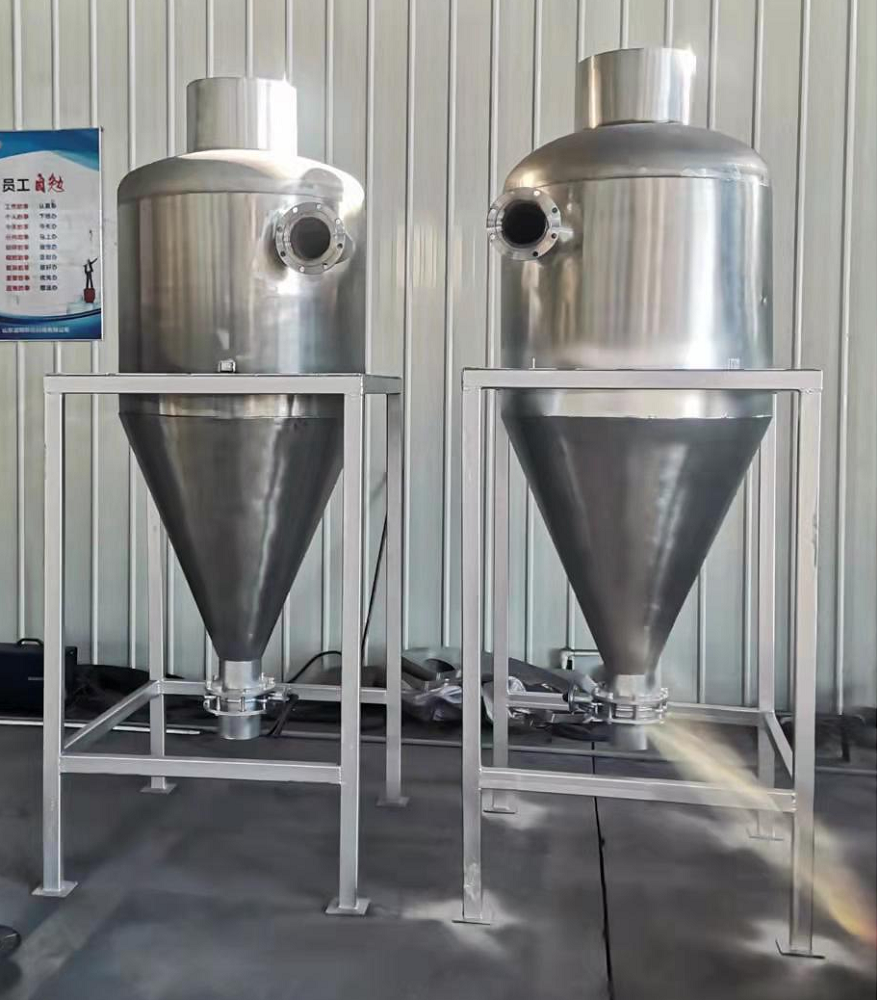

Filters material residue from the exhaust gas before discharge.

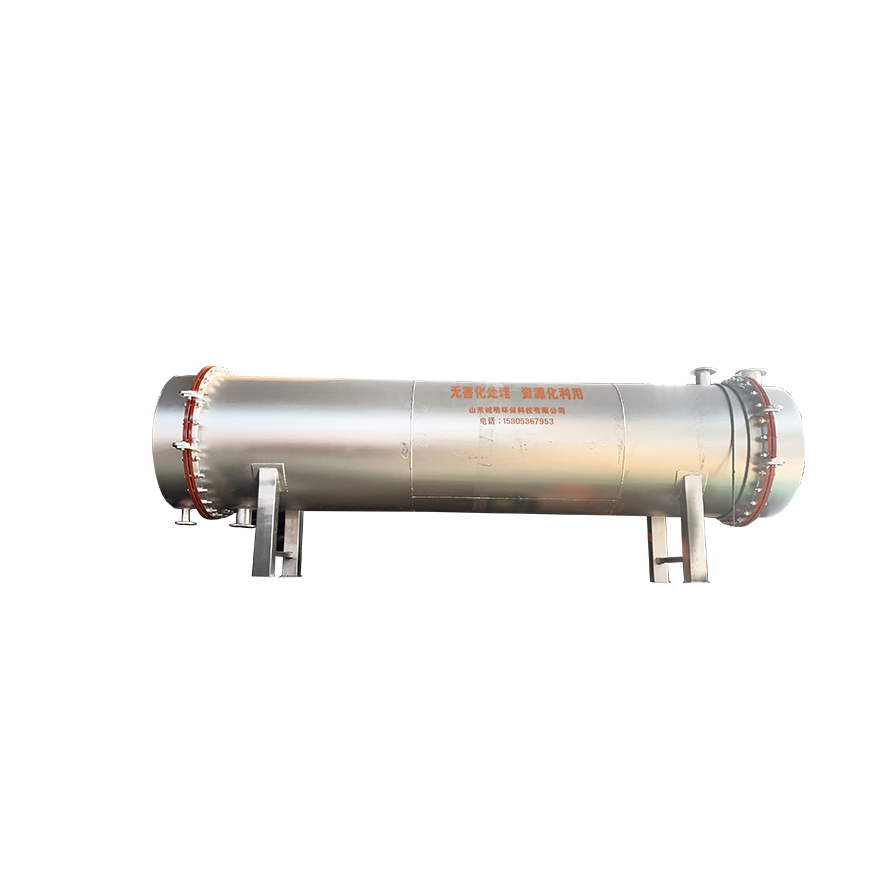

Cools high-temperature exhaust gas to reduce odor diffusion.

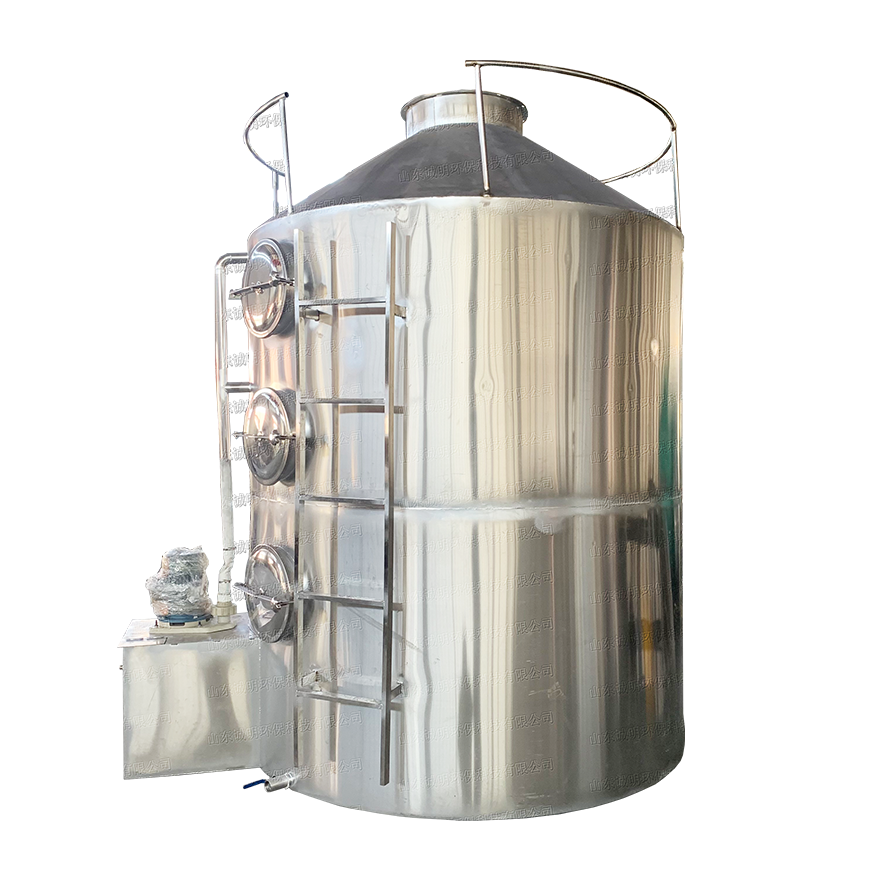

Preliminary acid-alkali washing of waste gas.

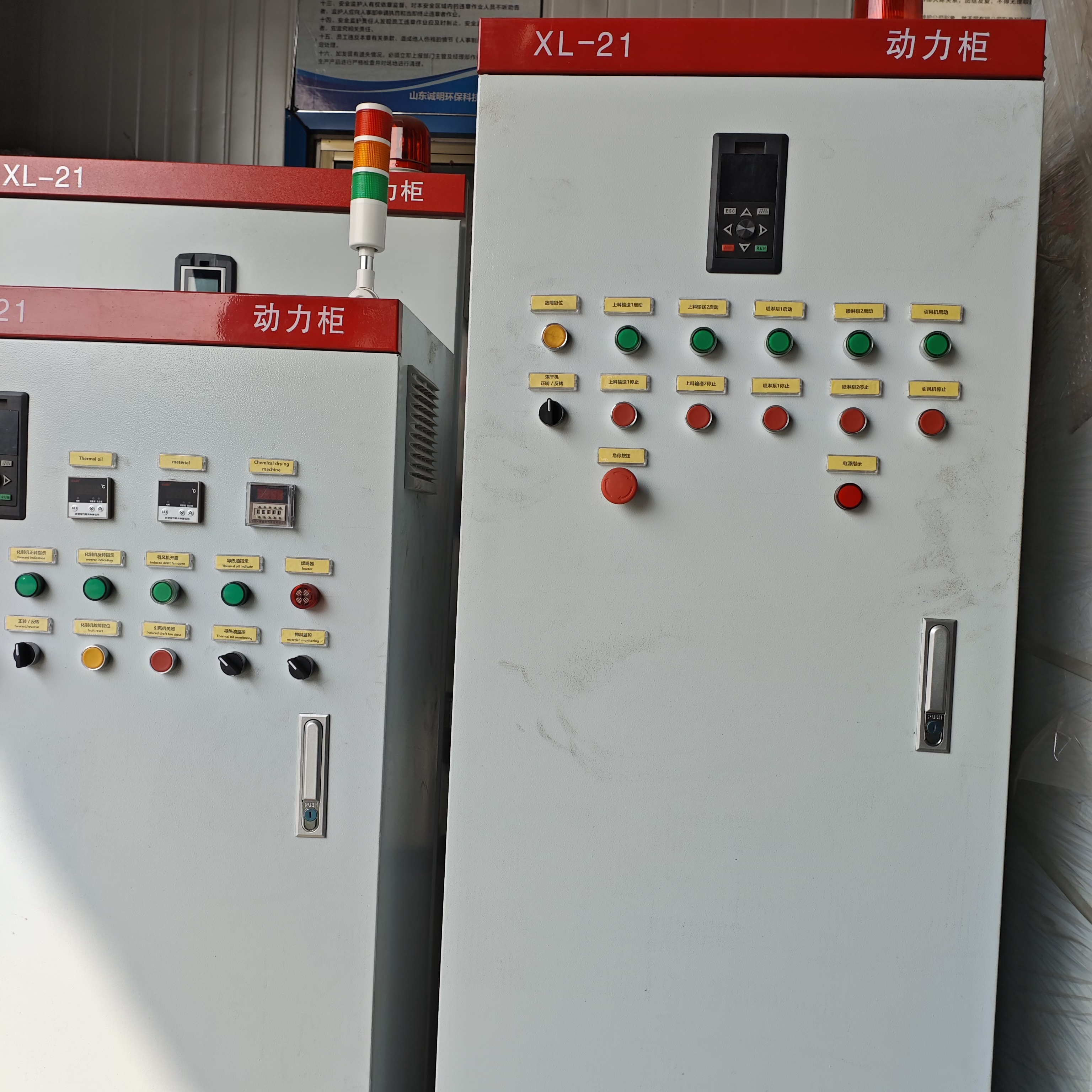

Automated computer control for all motors and wiring of the processing equipment.

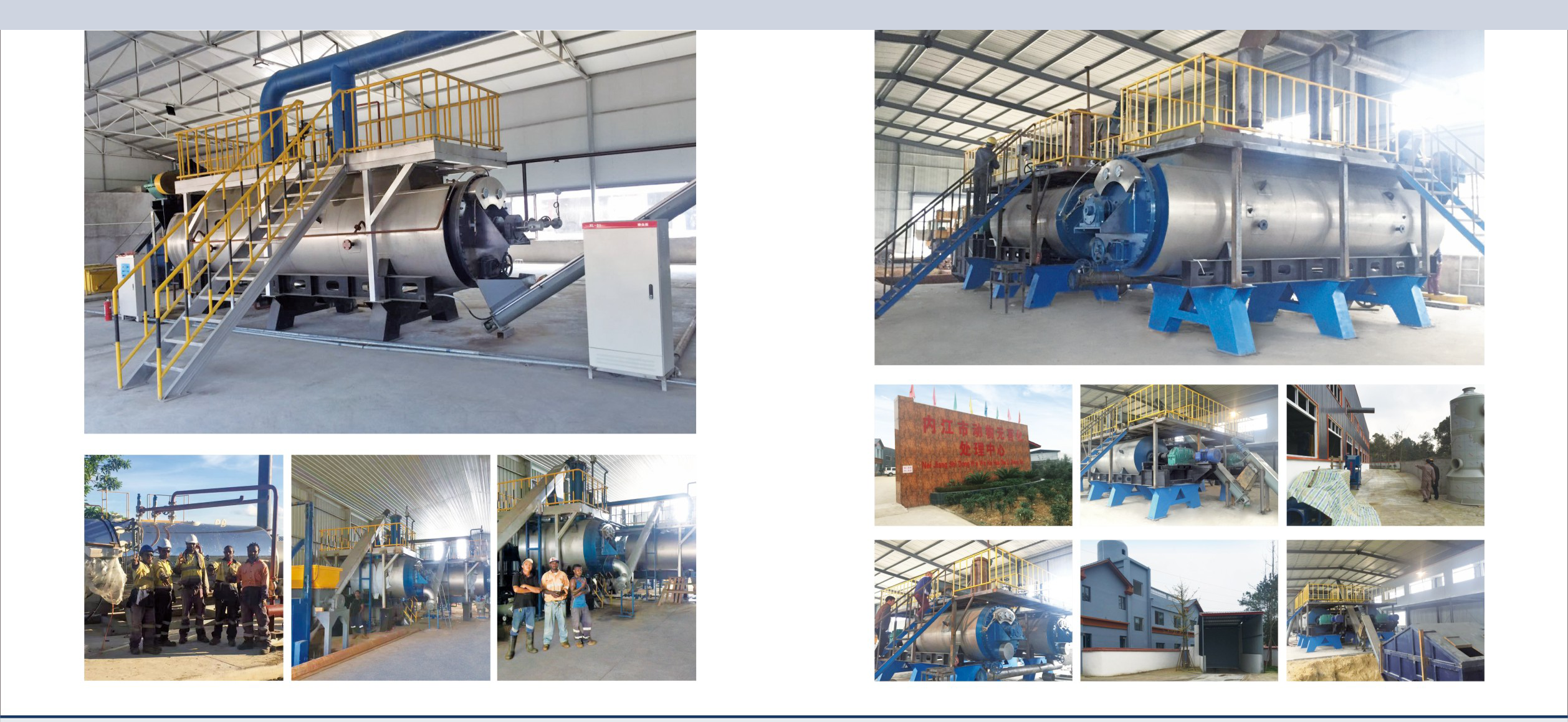

Processing Capacity: 5 tons/time
Daily Capacity: 30 tons/day

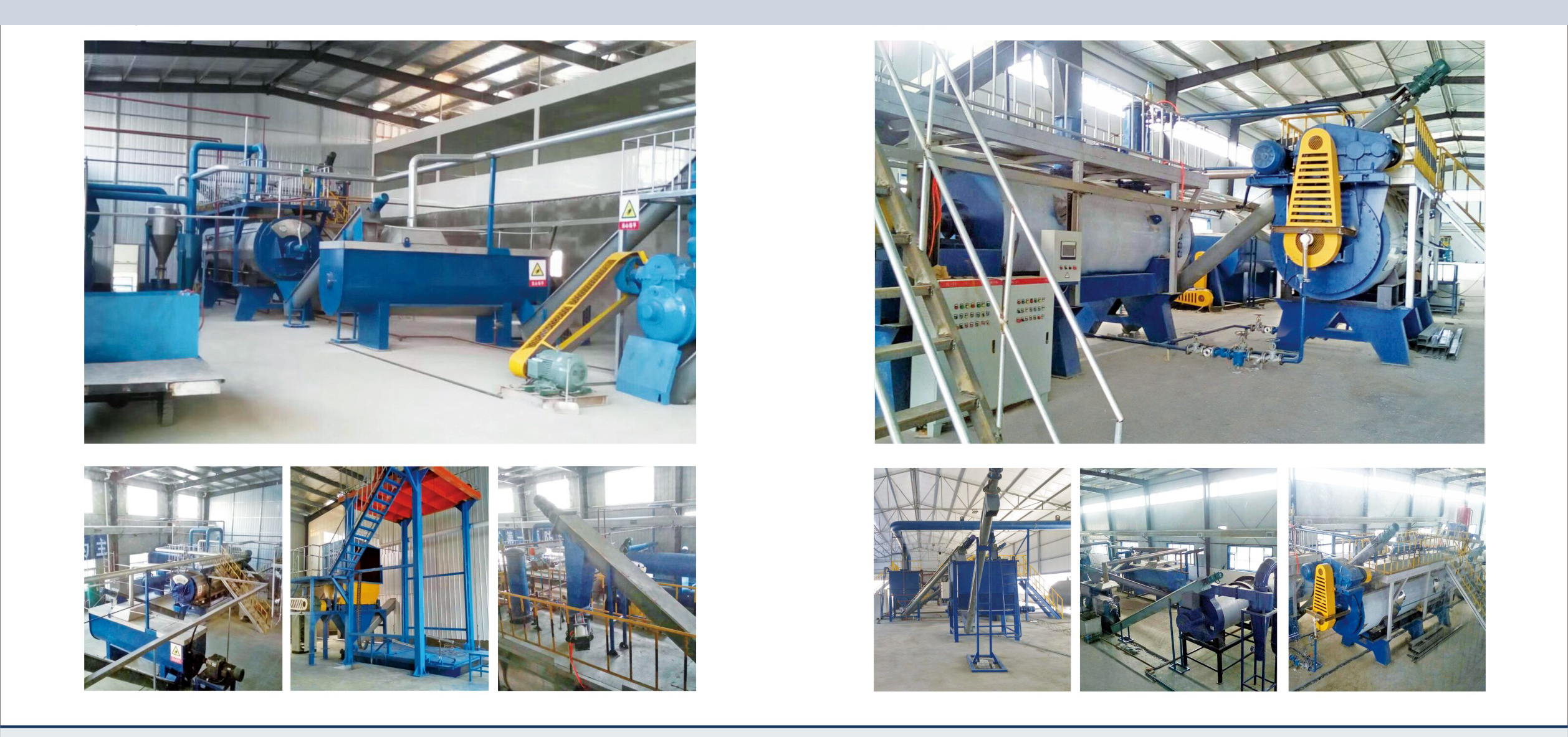

Processing Capacity: 3 tons/time
Daily Capacity: 15 tons/day
Processing Capacity: 10 tons/time
Daily Capacity: 30-40 tons/day

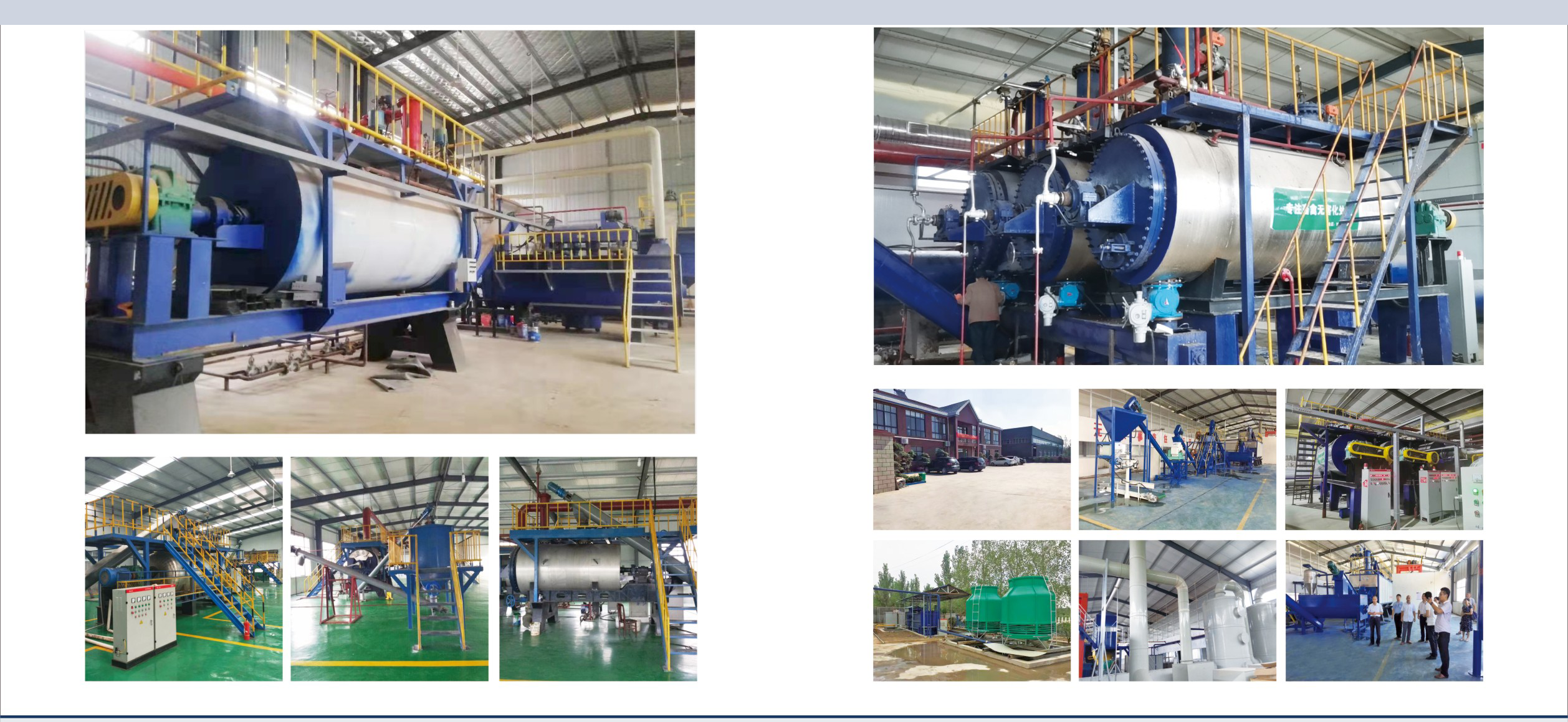

Processing Capacity: 20 tons/time | Daily Capacity: 40 tons/day

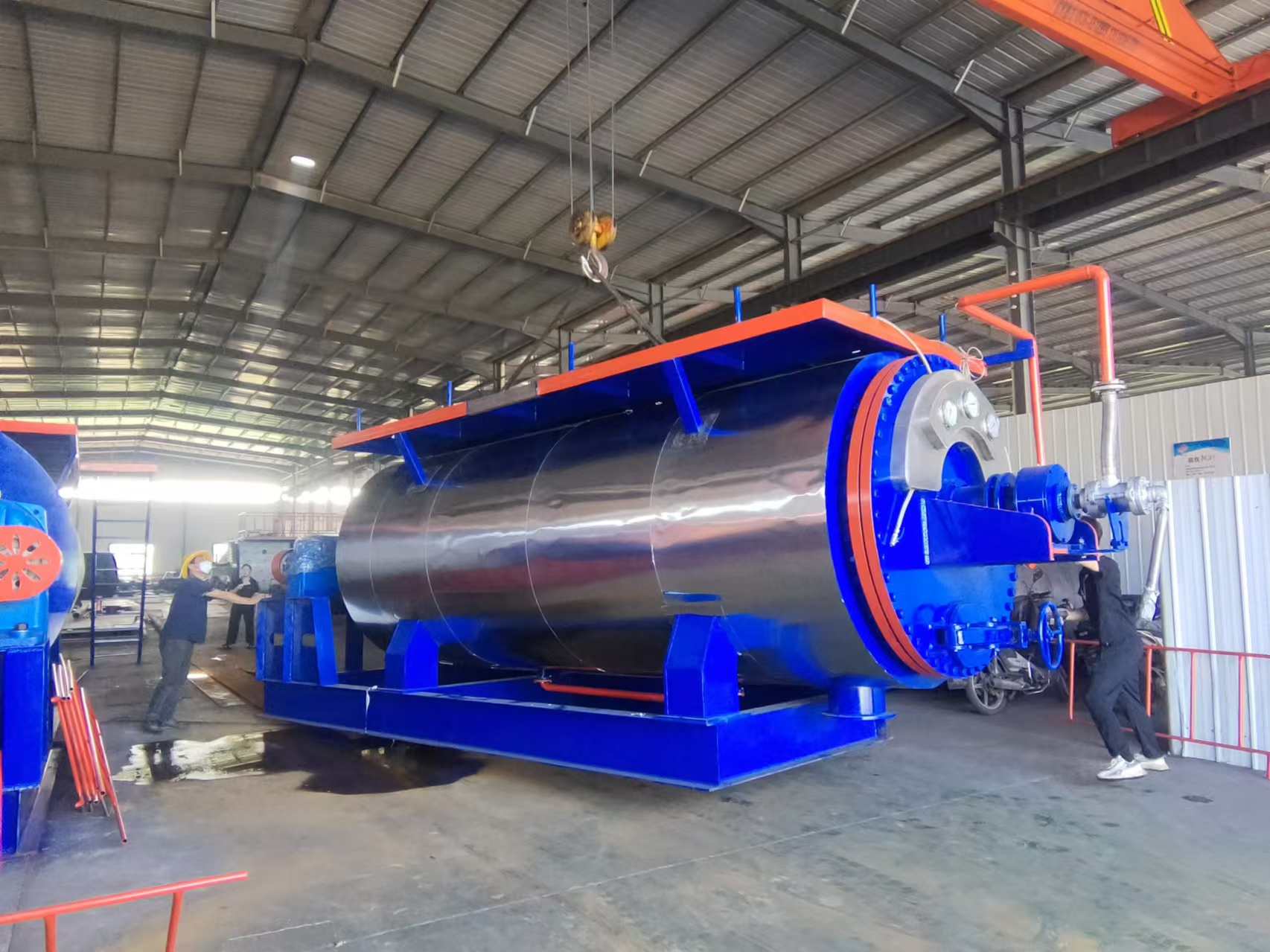

| Parameters | Standard Value | Options |
|---|---|---|
| Tank size (mm) | φ1600/1800x4500 | Customizable |
| Effective volume (m³) | 9.6 | Customizable |
| Work pressure (Mpa) | 0.25-0.4 | - |
| Working temperature (°C) | 120-140 | - |
| Processing capacity (T) | 8.0 | Customizable |
| Power (kW) | 45 | Customizable |
