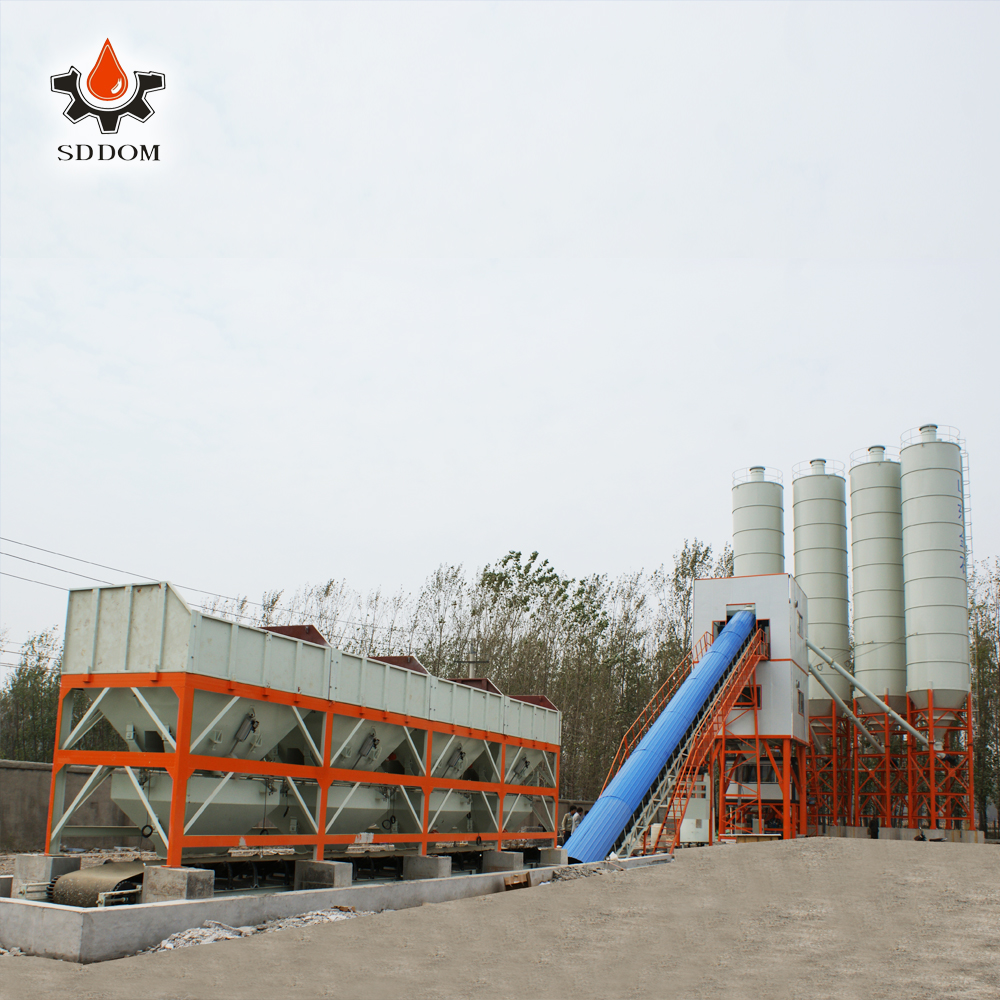

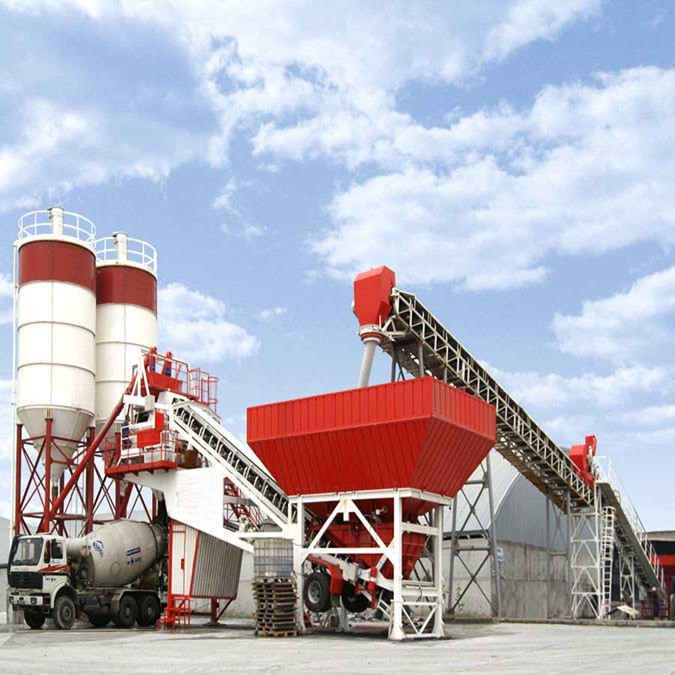

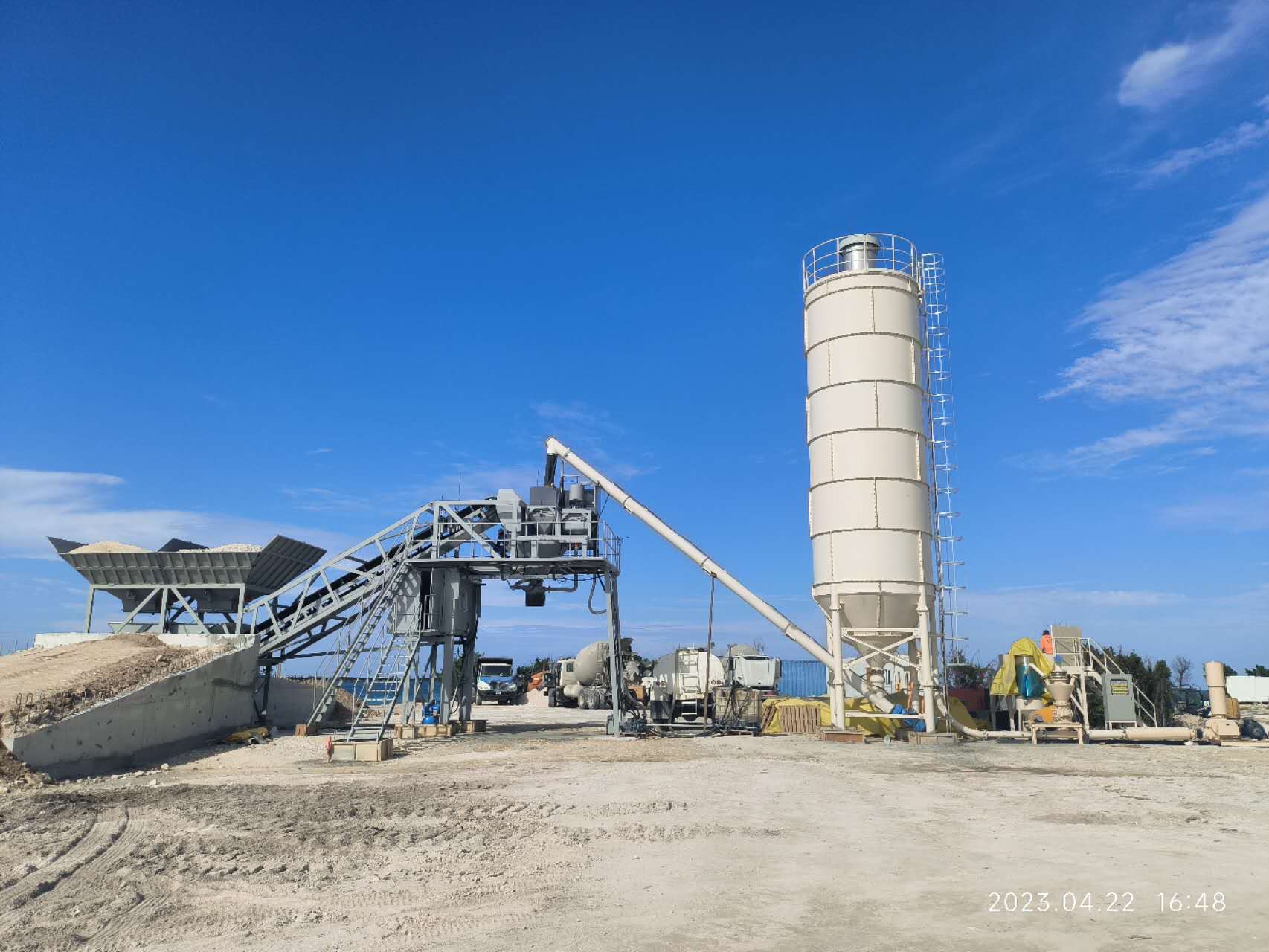

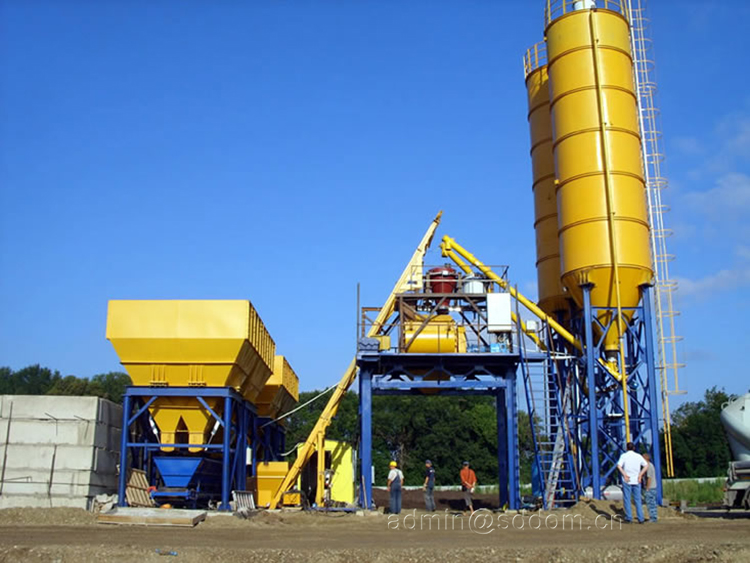

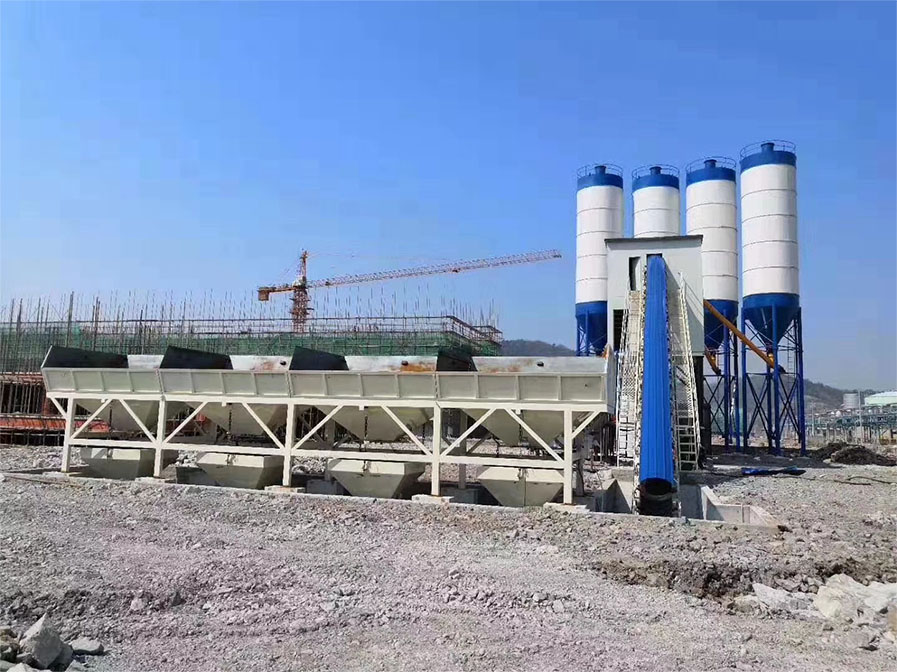

Stationary Cement Concrete Batching Plant Introduction
Our stationary concrete batching plant options include 4 professional types designed for various construction needs:
Advantages of Cement Silo for Concrete Batching Plant
For easy transportation and to save ocean freight, we design the walls of the cement silo into pieces. These modular components take up minimal space and are very easy to assemble together at the construction site. This design also facilitates simple repair or replacement of any parts in the future.
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
| Max Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | Belt | Skip Hopper | Belt | Belt | Belt | Belt |
| Discharge Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Aggregate Species | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
| Max Aggregate Size | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Silo Capacity | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100/200T | 4×200T | 4×200T |
| Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Power (kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 | 288 |
