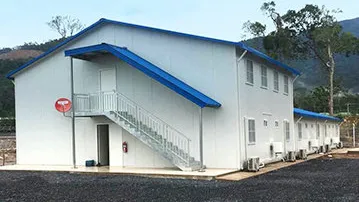

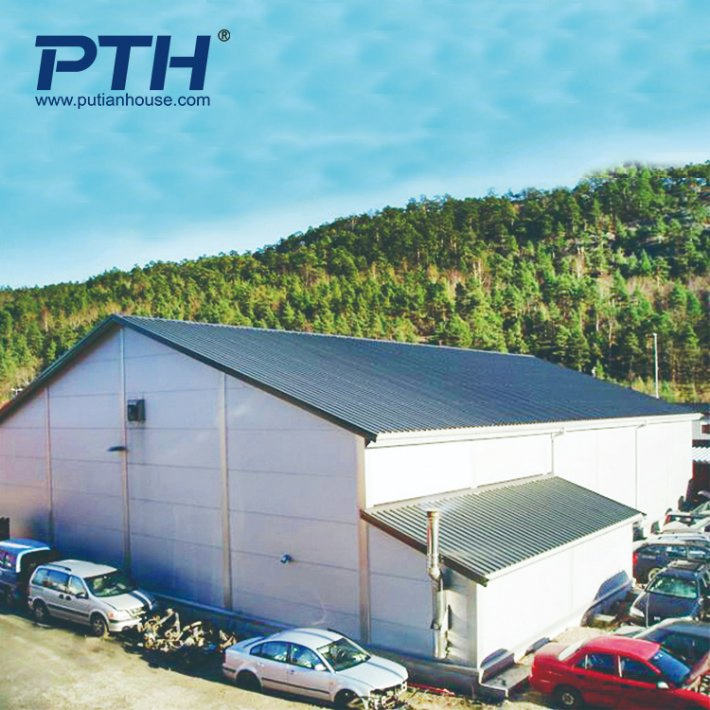

We provide single-story steel structure building and multi-story steel structure building.

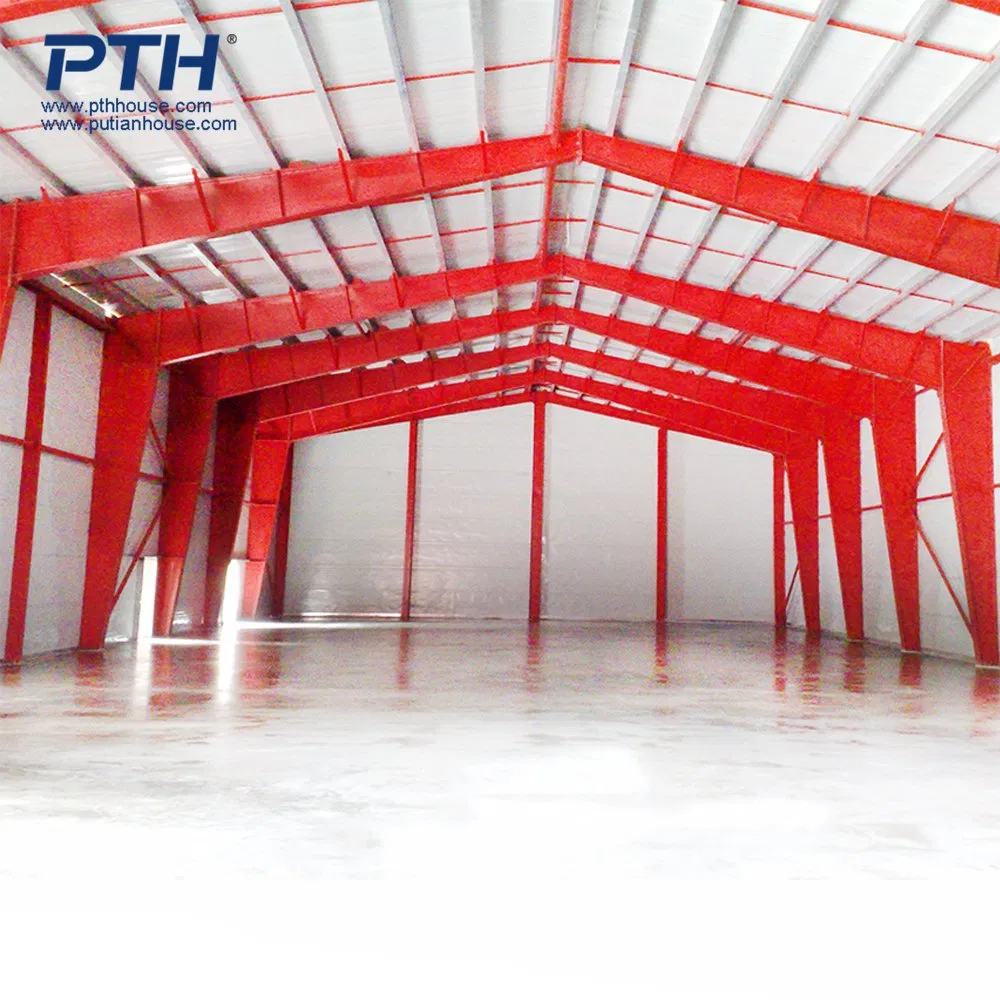

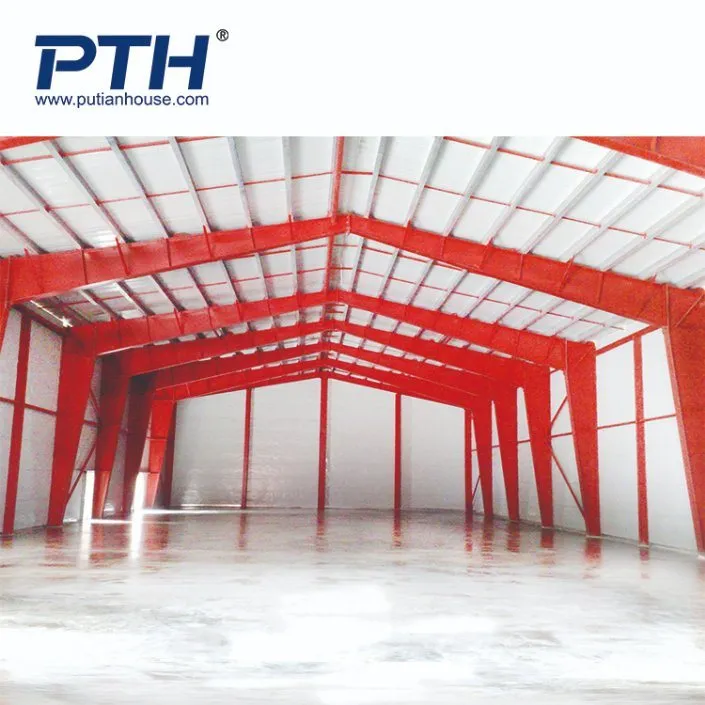

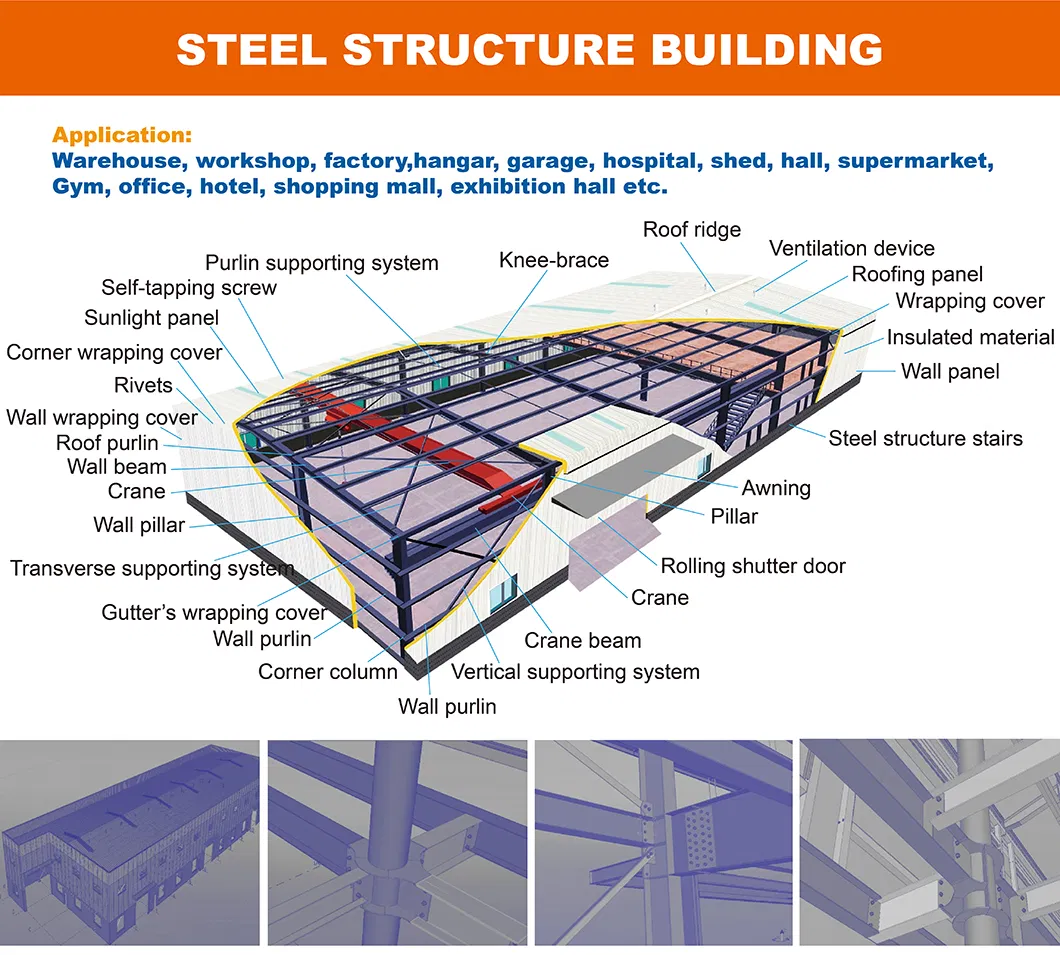

Steel structure building is made of heavy steel frame and cladding panels, doors and windows etc. Main Column and rafter are welded H -steel, purlin is steel with galvanization 275g/m2, can be C or Z section. Secondary steel components are L- steel, CHS, SHS, RHS, round steel rod, etc. Most of the steel components are connected by bolts.
Options: one floor or multi-floor, crane, skylight, ventilation etc.
| Specifications & Structural Options | ||
|---|---|---|
| Main Structure | Column | Q355/Q235 H- steel , Box column is also available |
| Rafter, Beam | Q355/Q235 H- steel | |
| Surface processing options | 1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm thickness) | |
| 2. Hot dip galvanization | ||
| Sub Structure | Purlin | Q355B, C/Z steel section, galvanization 275g/m² |
| Angle brace | Q235B, L- steel | |
| Cross bracing | Q235B round bar, L-steel | |
| Tie bar | Q235B, round pipe | |
| Batter brace | Q235B, round bar | |

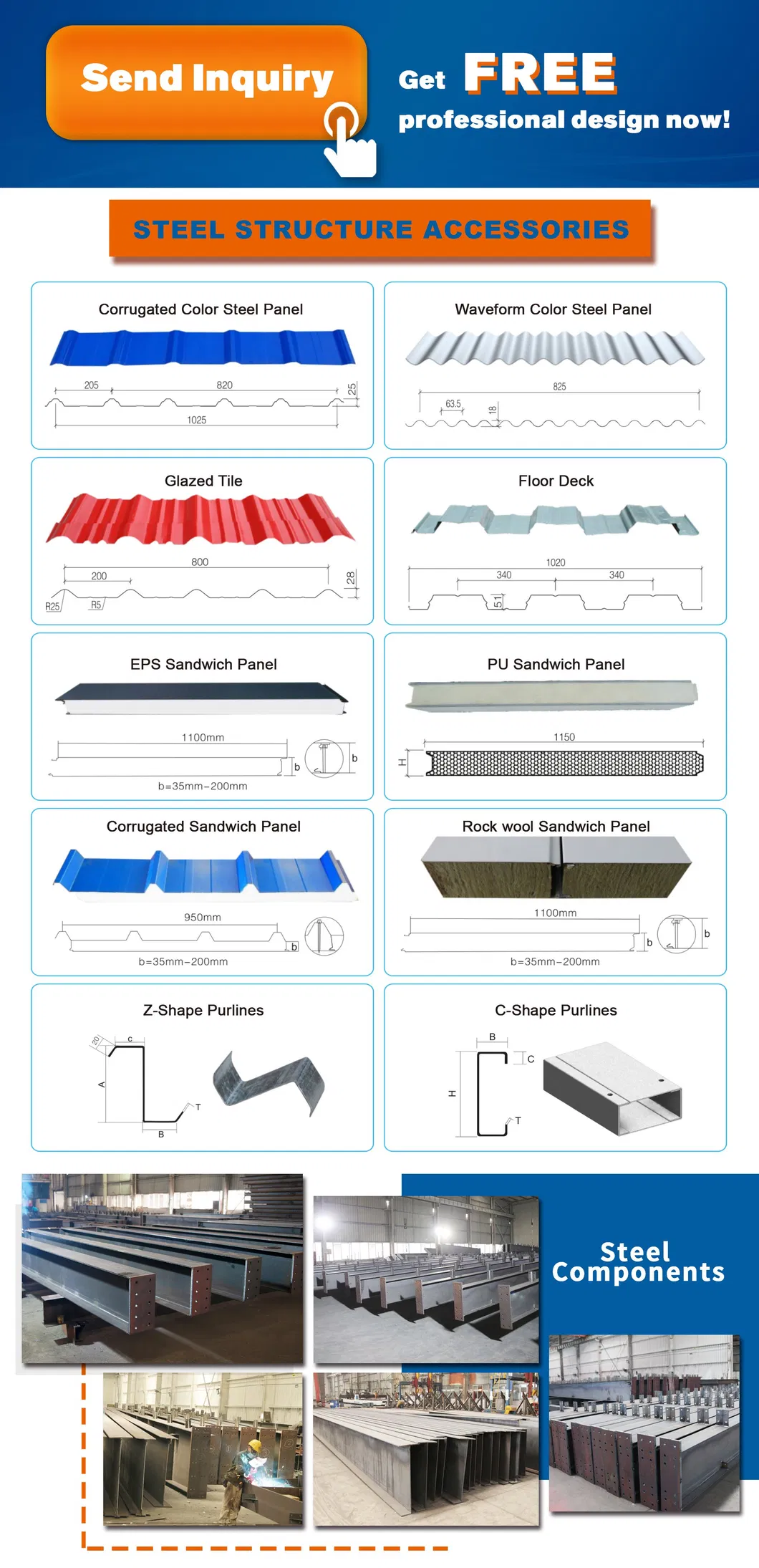

| Roof System | Roof panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm/mm | ||
| Gutter options | 1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm | |
| 2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm | ||
| Down spout | PVC pipe | |
| Steel flashing and cover | Steel sheet for roof ridge cap, gable wall end cover and corner cover | |
| Options | Roof skylight 1.8mm PVC sheet and stainless steel ventilator | |
| Wall System | Wall panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm/mm | ||
| 3. Brick wall (provided by client) | ||
| Door | 1. Roller door for truck, size customized | |
| 2. Sliding door for truck, size customized | ||
| 3. Access door, steel door, glass door etc. | ||
| Window | PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size customized | |
| Steel flashing and cover | Steel sheet end cover and corner cover | |
| Accessories and fasteners | Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-drilling screws, rivet etc. | |
| Other Options | Crane 5T, 6T, 10T, 16T, 30T etc. | |
