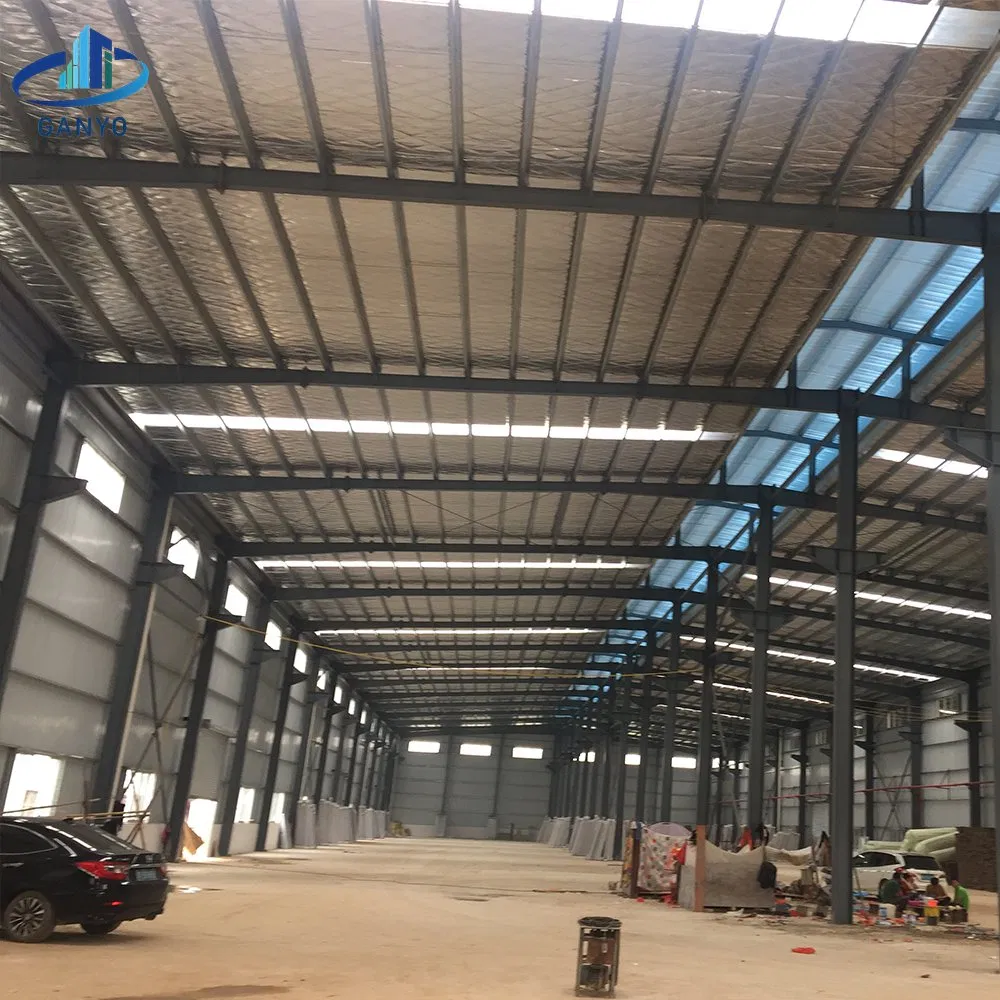

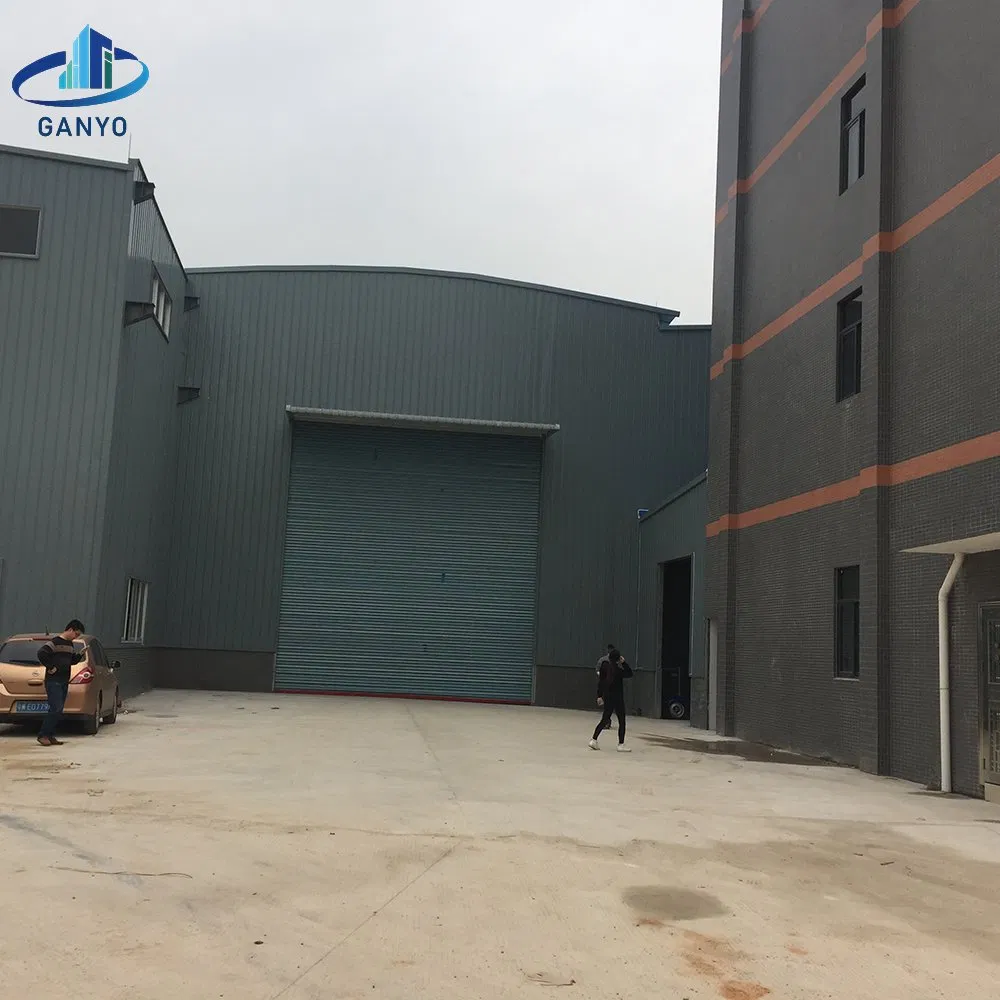

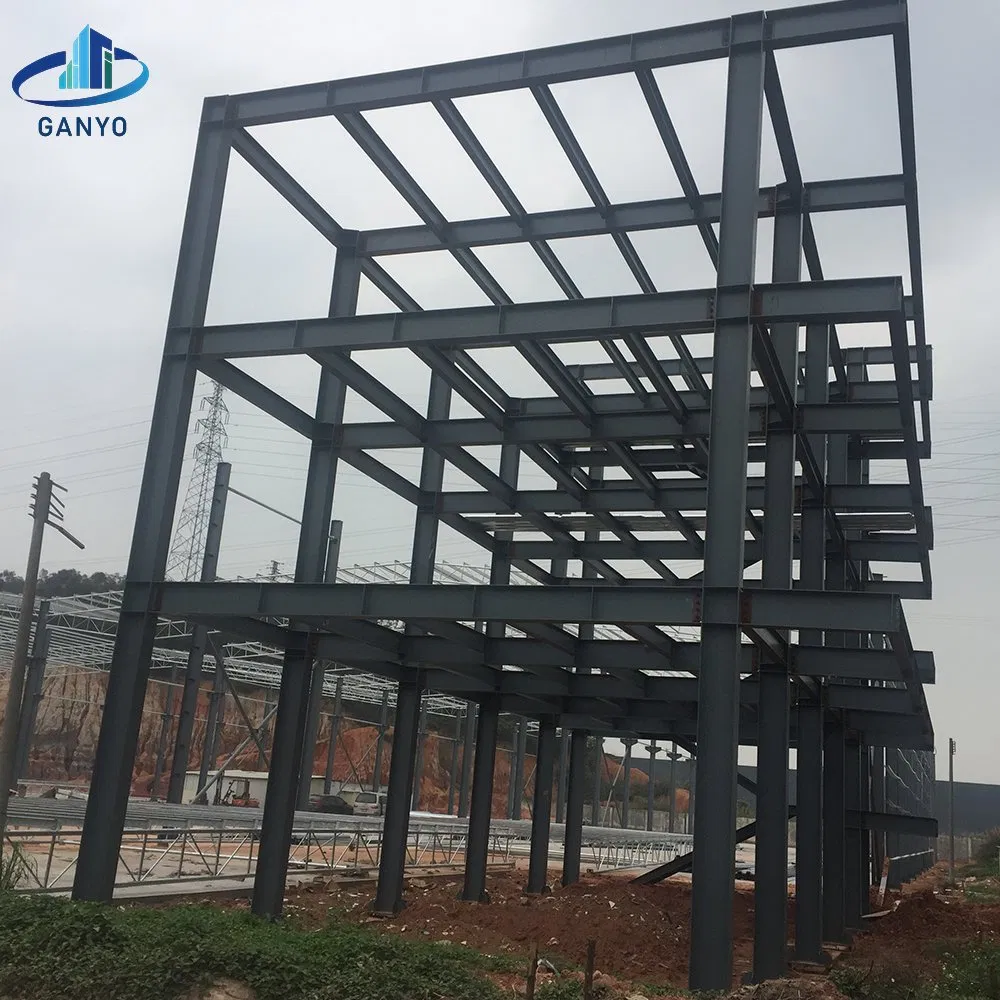

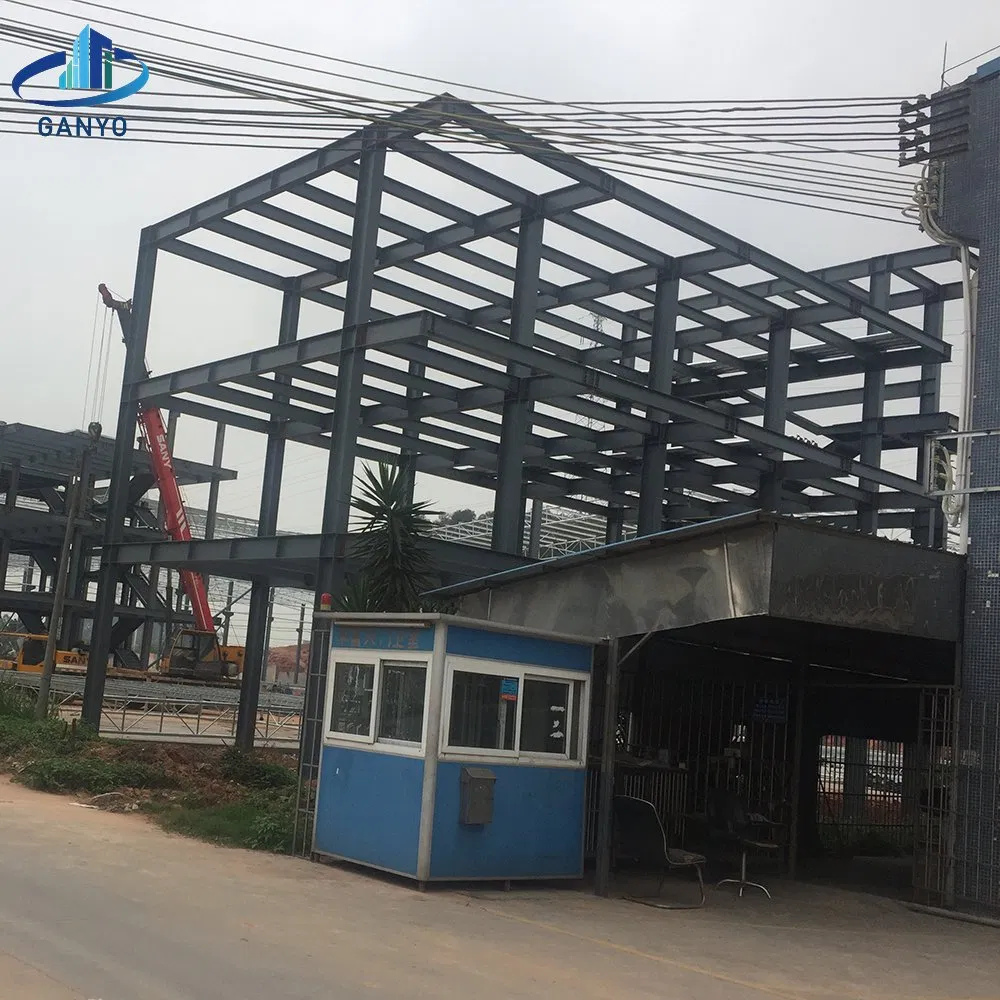

| Model NO. | GY-SW031 |
| Usage | Warehouse, Dormitories, Temporary Offices |
| Structure Frame | Portal Frame |

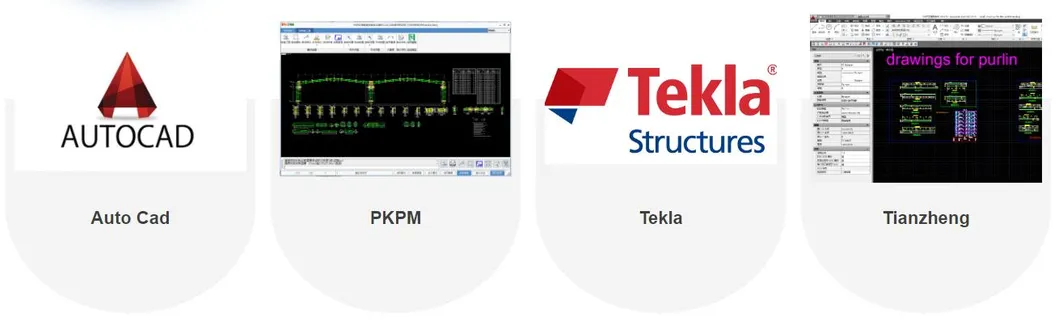

| Software We Used | Auto CAD, Pkpm, Tekla |
| H Steel Type | Hot Rolled H-Beam or Welded H Beam |
| Wind Loading | 80km/H-120km/H, or as Client's Requirement |
| Snow Loading | as Per Customer's Requirements |
| Seismic Grade | 7 Grade |
| Cladding Materials | Single Corrugated Steel Sheet, Sandwich Panels |
| Structure Surface Treatment | Any Color Painting or Hot Galvanize |
| Standard | ASTM |
| Forming | Hot-Rolled Steel |
| Application | Steel Workshop, Steel Structure Platform |
| Residential Wall Structure | Sandwich Panels |
| Warranty | 30-50 Years Service Life, Full Drawing, Install Guide |

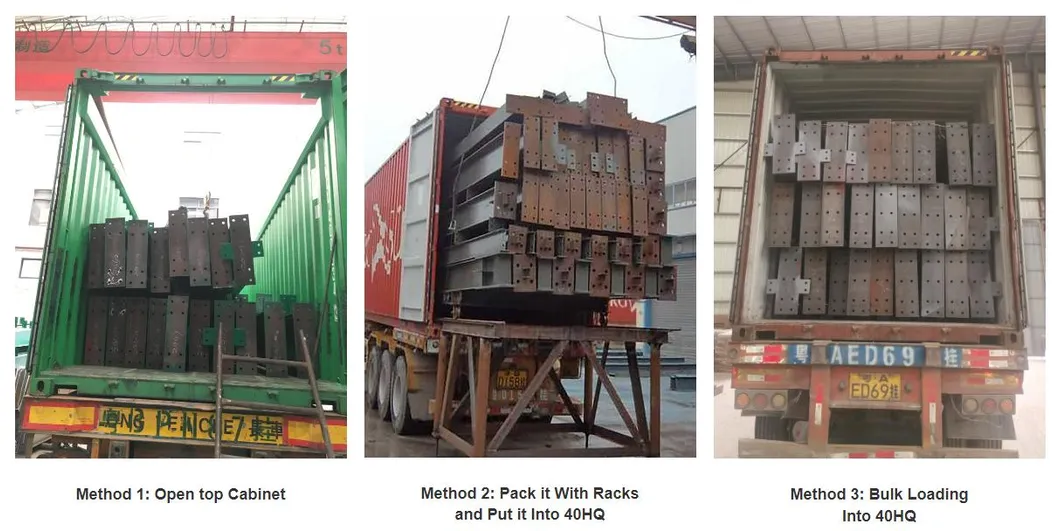

| Transport Package | Nude Package or Chassis Package |
| Specification | Customized size |
| Trademark | Carbon Structural Steel |
| Origin | China |
| HS Code | 9406000090 |
| Production Capacity | 2000 Tons Per Month |
| Package Size | 11640.00cm * 650.00cm * 200.00cm |
| Package Gross Weight | 700.000kg |
| Structure Type | Component | Specifications & Size | Material Standard | |
|---|---|---|---|---|

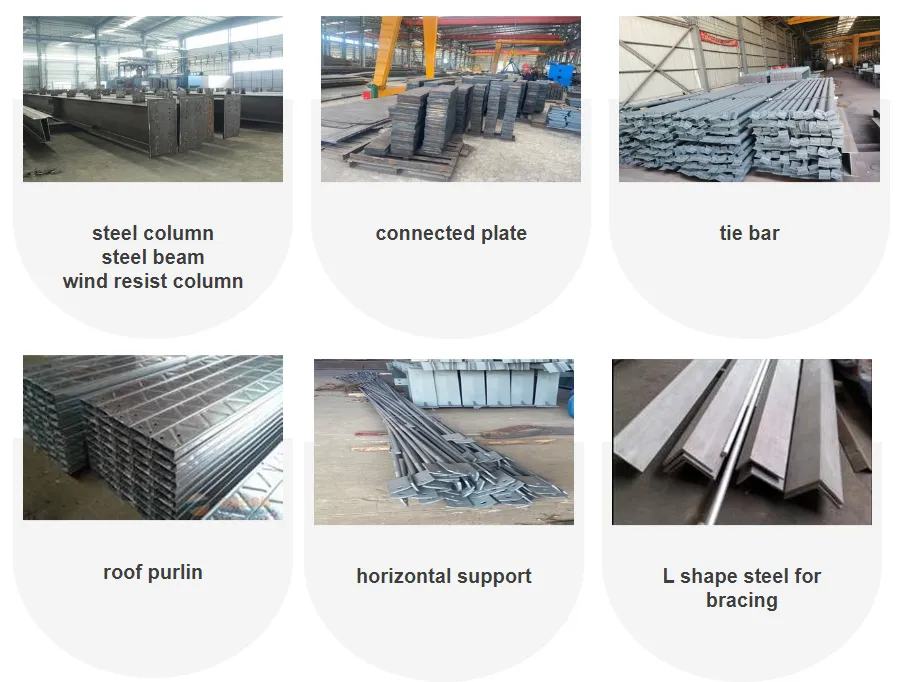

| Steel Frame | steel column | Hot rolled H-beam or welded H beam, size calculated based on building size | Q355B | |
| steel beam | Q355B | |||
| wind resist column | Q355B | |||
| connected plate | Thickness calculated by engineering team based on building size | Q355B | ||
| tie bar | ¢89*3 | Q235B | ||
| horizontal support | ¢20 round steel | Q235B | ||
| L shape steel for bracing | L50*3 | Q235B | ||
| roof purlin | C160*50*20*2.0 or customized size based on requirements | Q235B galvanized | ||
| wall purlin & canopy beam purlin | ||||
| structure surface treatment | Any color painting or hot-dip galvanize | - | ||
| Cladding Type | Material Type | Thickness & Specifications |
|---|---|---|

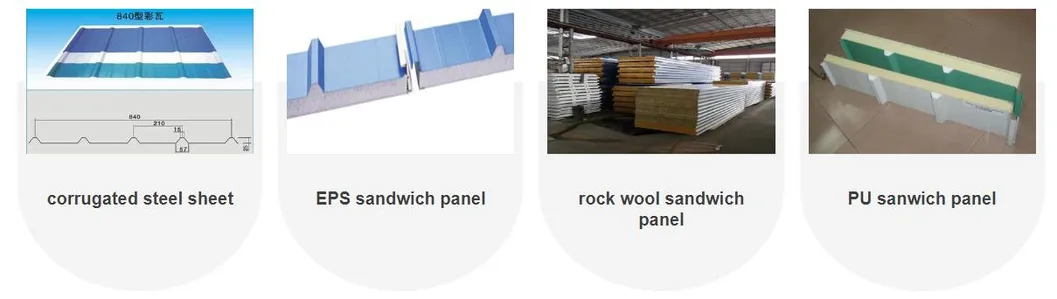

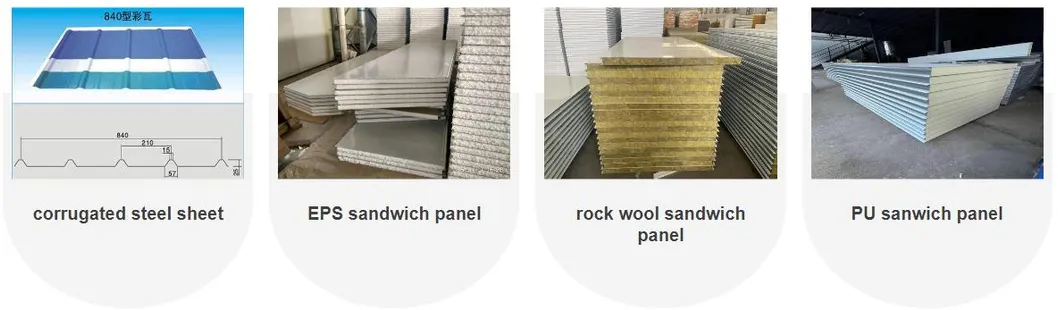

| Roof Claddings | Corrugated steel sheet | L*840, thickness: 0.426mm, 0.476mm, or as discussed |
| EPS sandwich panel | L*1050*50mm/75mm/100mm, skin sheets: 0.426mm, 0.476mm, or as discussed | |
| Rock wool sandwich panel | L*960/950*50mm/75mm/100mm, skin sheets: 0.426mm, 0.476mm, or as discussed | |
| PU sandwich panel | L*960/950*50mm/75mm/100mm, skin sheets: 0.426mm, 0.476mm, or as discussed |
| Cladding Type | Material Type | Thickness & Specifications |
|---|---|---|
| Wall Claddings | Corrugated steel sheet | L*840, thickness: 0.426mm, 0.476mm, or as discussed |
| EPS sandwich panel | L*1150/950*50mm/75mm/100mm, skin sheets: 0.426mm, 0.476mm, or as discussed | |
| Rock wool sandwich panel | ||
| PU sandwich panel |
| Accessory Name | Detailed Specifications |
|---|---|

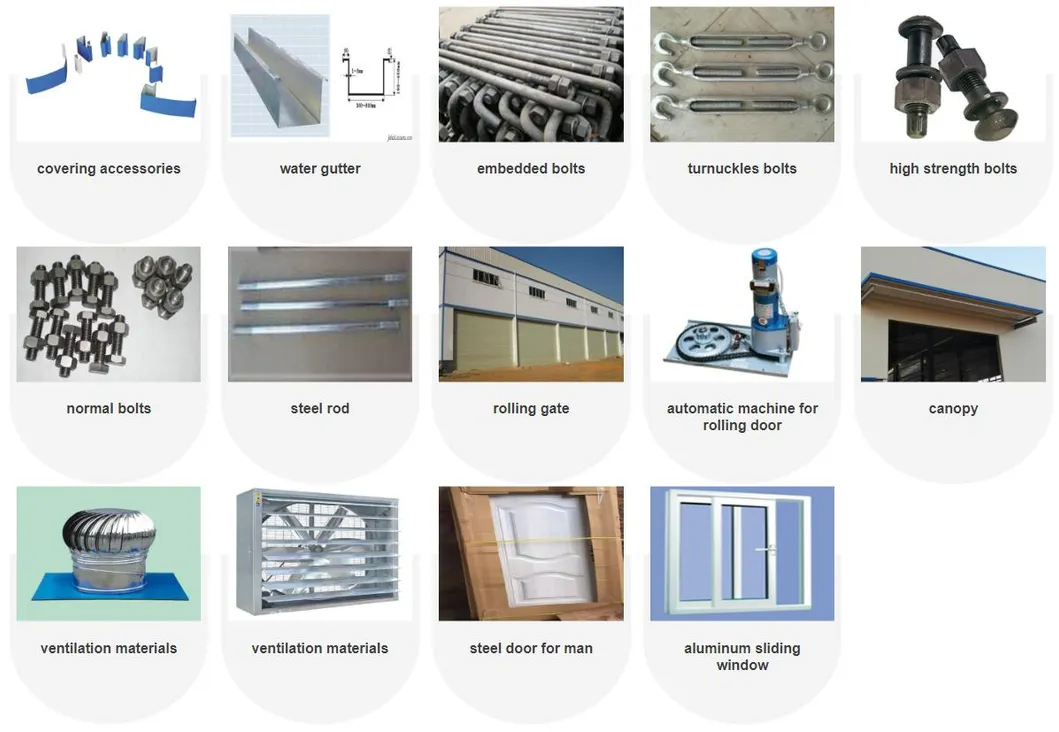

| Covering accessories | Including sealing covering, glue, hardware, etc. |
| Water gutter | 0.8mm stainless steel |
| Water pipe | D110 or D160 depends on building size |
| Embedded bolts | M24 or other sizes based on building specifications |
| Turnbuckle bolts | M20 or other sizes based on building specifications |
| High strength bolts | M20*80 or other sizes based on building specifications |
| Normal bolts | M20*55 or M12*35 depending on structural requirements |
| Steel rod | ¢12 |
| Rolling gate | 4000mm*5000mm (High) or customized as requested |
| Automatic machine for rolling door | Standard configuration matching rolling gates |
| Canopy | Dimensions determined by general building design |
| Ventilation materials | Ventilation balls by natural wind |
| Industrial powered fans | |
| Steel door for personnel | 880mm Width * 2050mm Height |
| Aluminum sliding window | 1500mm * 3000mm or customized to requirement |
We deliver comprehensive solutions for building design, creating customized layouts for the entire facility according to your specifications.

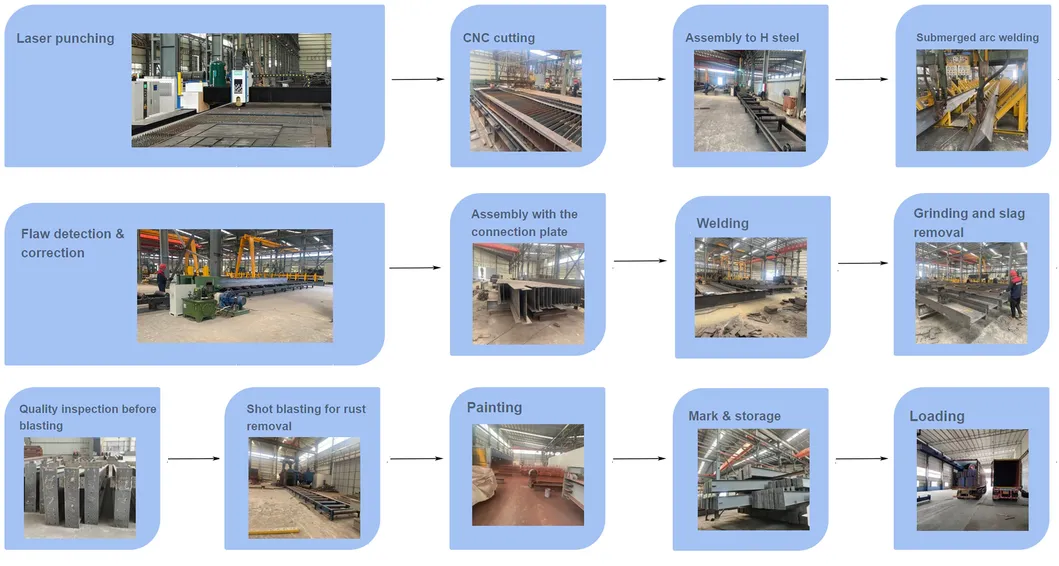

Our procurement teams ensure high-grade raw material sourcing. Manufacturing plants operate under strict quality management frameworks to leverage state-of-the-art technologies.

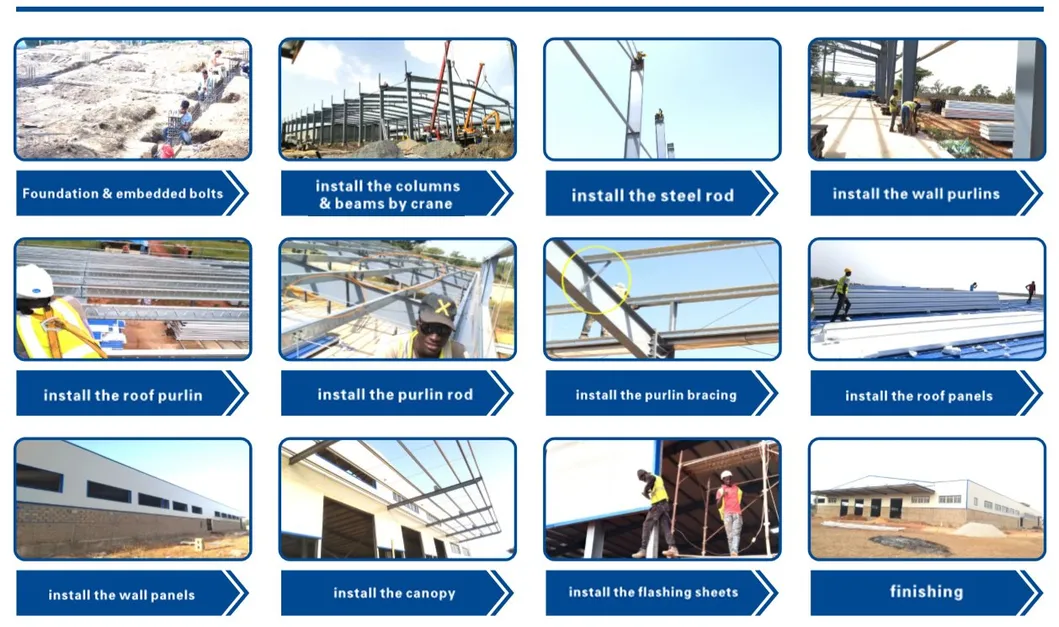

Our qualified engineers are available to support site layout and supervise installations. Customers need only prepare a local construction team.
Please prepare the following information to receive a detailed design proposal:
