| Specification Details | |
|---|---|
| Model NO. | 2020-13 |
| Type | Multi-Storey Warehouse |
| Certificate | ISO |
| Product Name | Steel Structure Building Fabricated Steel Framing |
| Material | Light Steel Frame |
| Column and Beam | Hot Rolled or Welded H Section, I Section |
| Surface Processing | Painted or Galvanized |
| Steel Grade | Q235B, Q345b |
| Roof & Wall Panel | PU, EPS, Rock Wool/Fiber Glass Sandwich Panel |
| Window and Door | PVC or Aluminum Alloy; Sliding Door or Roll up Door |
| Service Life | More Than 50 Years |
| Drawing | Design The Drawing as Your Demand |
| Installation & Production Details | |
|---|---|
| Installation | Engineer Helps to Instruct Installation |
| Additional | Overhead Crane, Mezzanine Floor, Ventilation |
| Purlin | C or Z Type Section |
| Skylight | Transparent Sheet |
| Foundation | Cement Foundation |
| Transport Package | Bulk |
| Specification | customized |
| Trademark | Carbon Structural Steel |
| Origin | China |
| HS Code | 7308900000 |
| Production Capacity | 5000 Ton Per Month |
| Package Size | 100.00cm * 100.00cm * 100.00cm |
| Package Gross Weight | 100.000kg |
Steel structure building is a new form in building construction, which is made from the organized combination of custom-designed structural steel members to meet architecture and engineering requirements of users. Steel structure involves sub-structure or members in a building made from structural steel, linked and fixed by welding, bolts and rivets.
| Application | Characteristic |
|---|---|
|
Steel structure workshop High rise steel structure building Steel warehouse Large span steel frame Steel bridge Airport hangar Exhibition hall Gym shed Office building Poultry house Multi-storey building Storage shed |
High strength & Light dead load Good plasticity and toughness Easy fabrication & High accuracy Save 65% of construction time Large span & Space flexible Reduce construction waste and noise 98% steel components can be recycled Environmentally friendly |
| Dimensions & Main Components | ||
|---|---|---|
| Dimensions | Length | H beam: 4000-15000mm |
| Thickness | web plate: 6-32mm / wing plate: 6-40mm | |
| Height | 200-1200mm | |
| Color | According to customers | |
| Size | MOQ is 200 m2, width * length * eave height | |
| Main Components | Base | Cement and steel foundation bolt |
| Main frame | H beam | |
| Material | Q235B, Q345B or others as buyers' requests. | |
| Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | |
| Bracing | X-type or other type bracing made from angle, round pipe | |
| Bolt | Plain bolt and High-strength bolt | |
| Roof & wall | Sandwich panel or color plate | |
| Door | Sliding or rolling door | |
| Window | Aluminium alloy window | |
| Surface | Two times of Anti-rust Painting or Hot Dip Galvanized | |
| Sheet | 0.5mm or 0.6mm galvanized sheet | |
| Accessories | Semi-transparent skylight belts, Ventilators, down pipe, galvanized gutter, etc | |

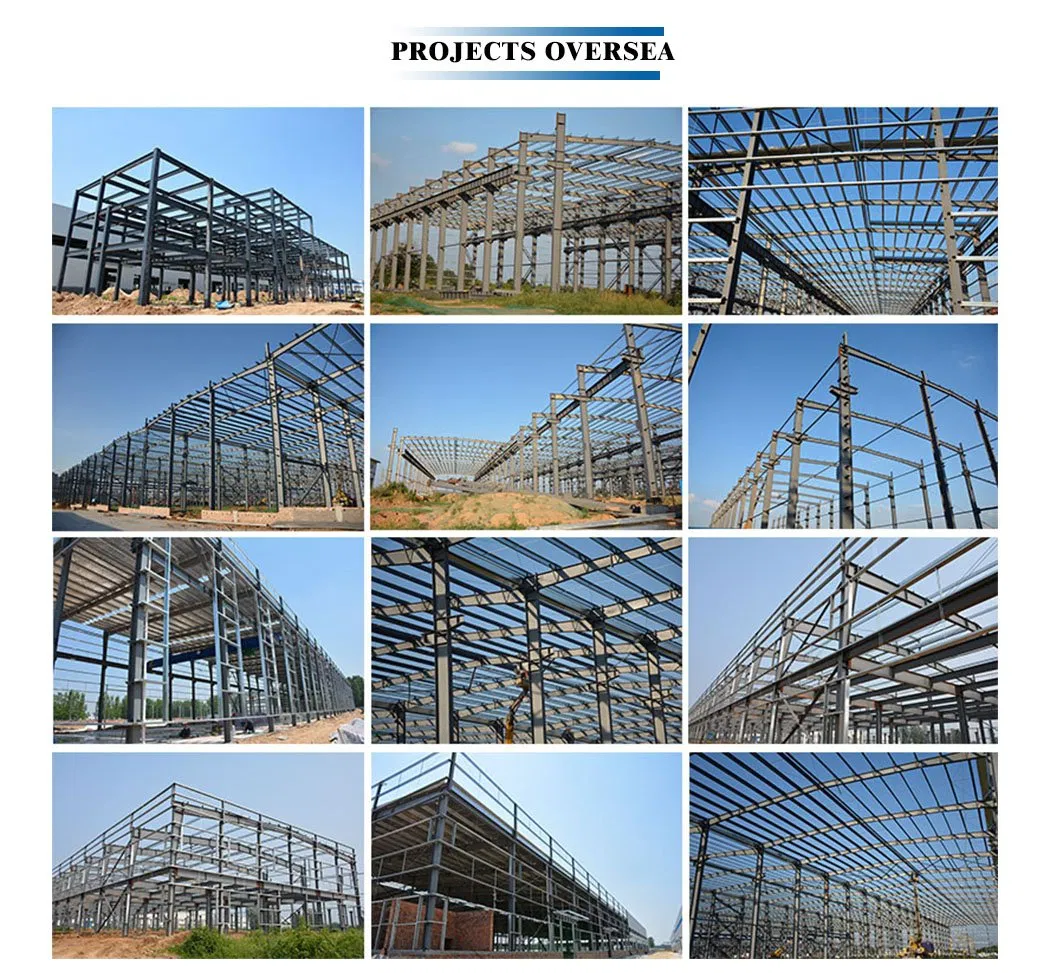

| COUNTRY | TYPE | SIZE |
|---|---|---|
| Philippine | Fruits processing workshop | 4982m2 |
| Canada | Storage shed | 750m2*6 |
| Canada | Riding area | 600m2 |
| Malawi | Sawmill workshop | 2160m2 |
| Germany | Steel hall | 300m2 |
| Mauritius | Steel warehouse | 1116m2 |
| Zambia | Steel structure building | 1383m2 |

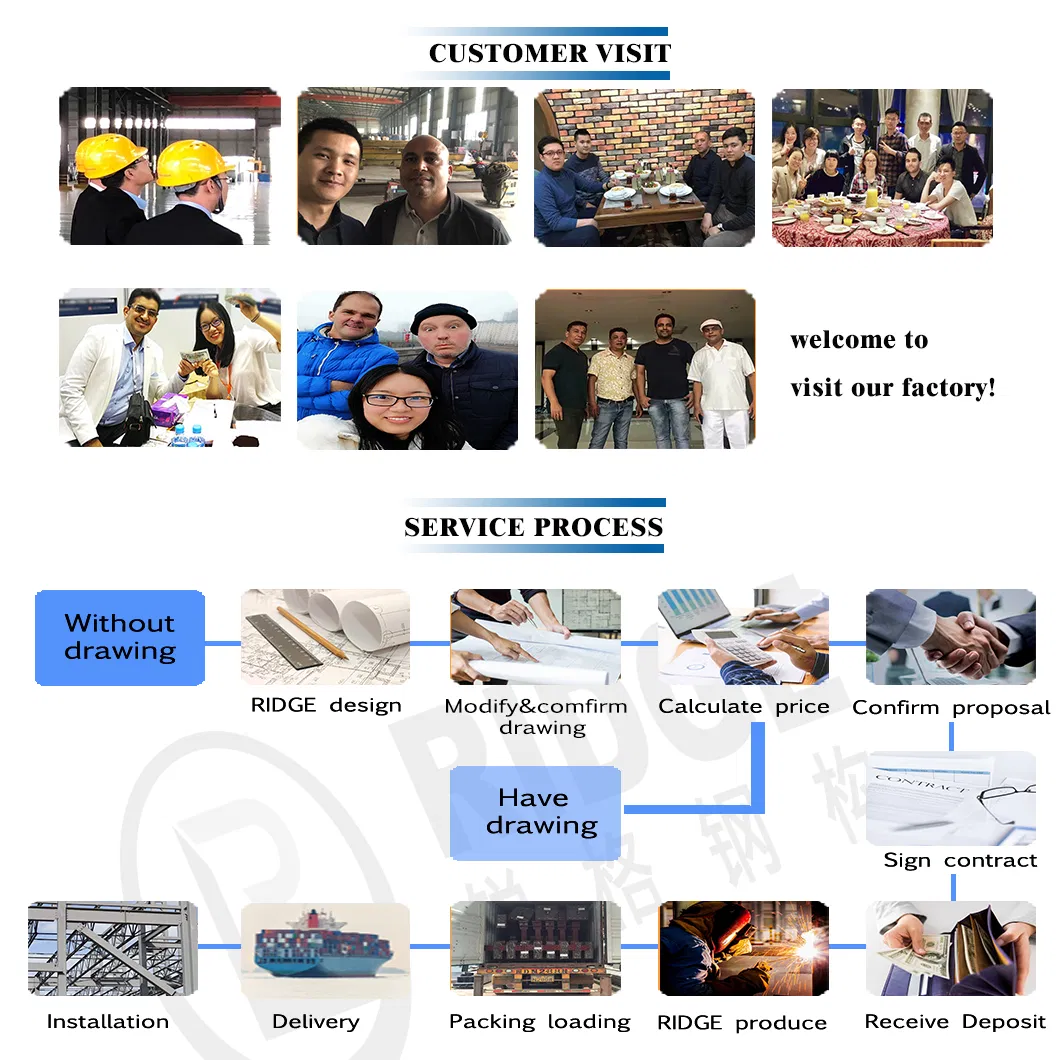

Our team of steel structure design experts work with you to define your project balancing scope and budget. Within that process we will provide scope drawings, budget confirmation, and schedule. Each building is customized to provide lasting, maintenance-free value.
After your design is finalized it is submitted to engineering. The engineering team will evaluate the structure to ensure it meets the design criteria and local code requirements. Once complete they will prepare final drawings and ready the plans for fabrication.

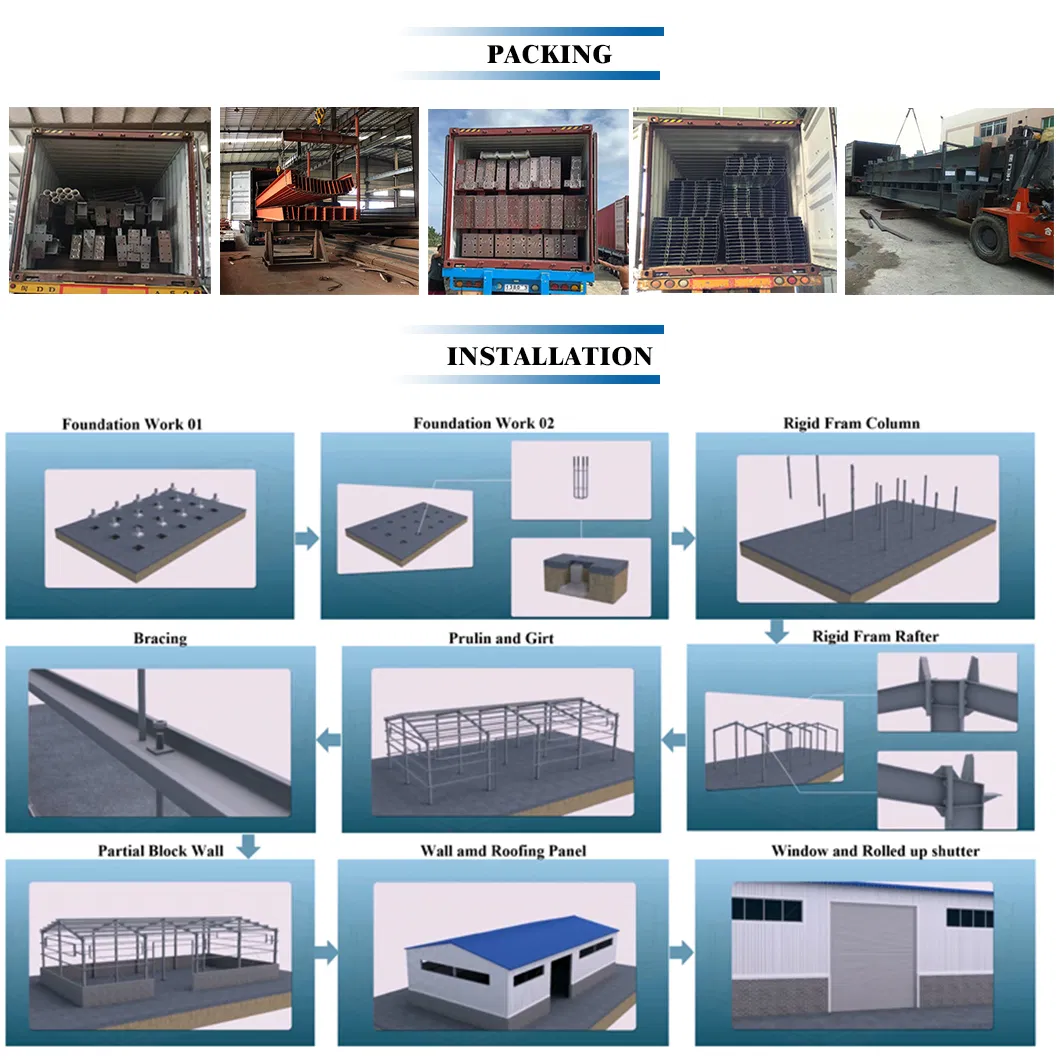

Steel buildings come pre-cut, pre-drilled, and ready for onsite assembly. Our fabrication process ensures the fabricated materials are cut to specification, packaged ready to for delivery by ship.
Before a building is delivered our logistics professionals will verify bill of materials quantities at the factory. We fabricate all structures to be erected on site by yourself or a professional. Regardless, our project management team will be ready to support you through completion.

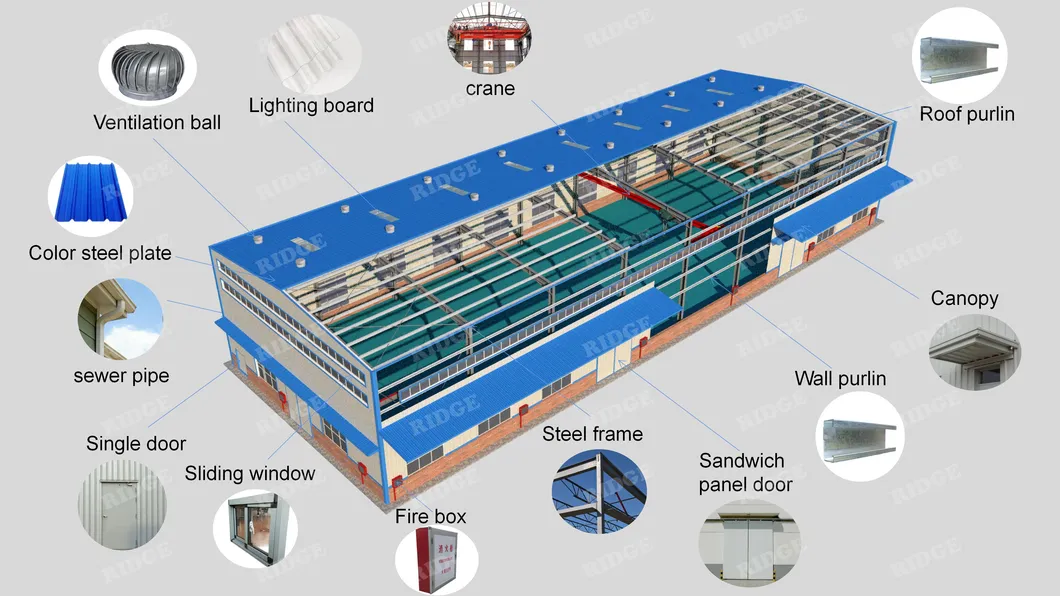

| Product Information Specifications | |
|---|---|
| 1) Size(m) | Width * Length * Height |

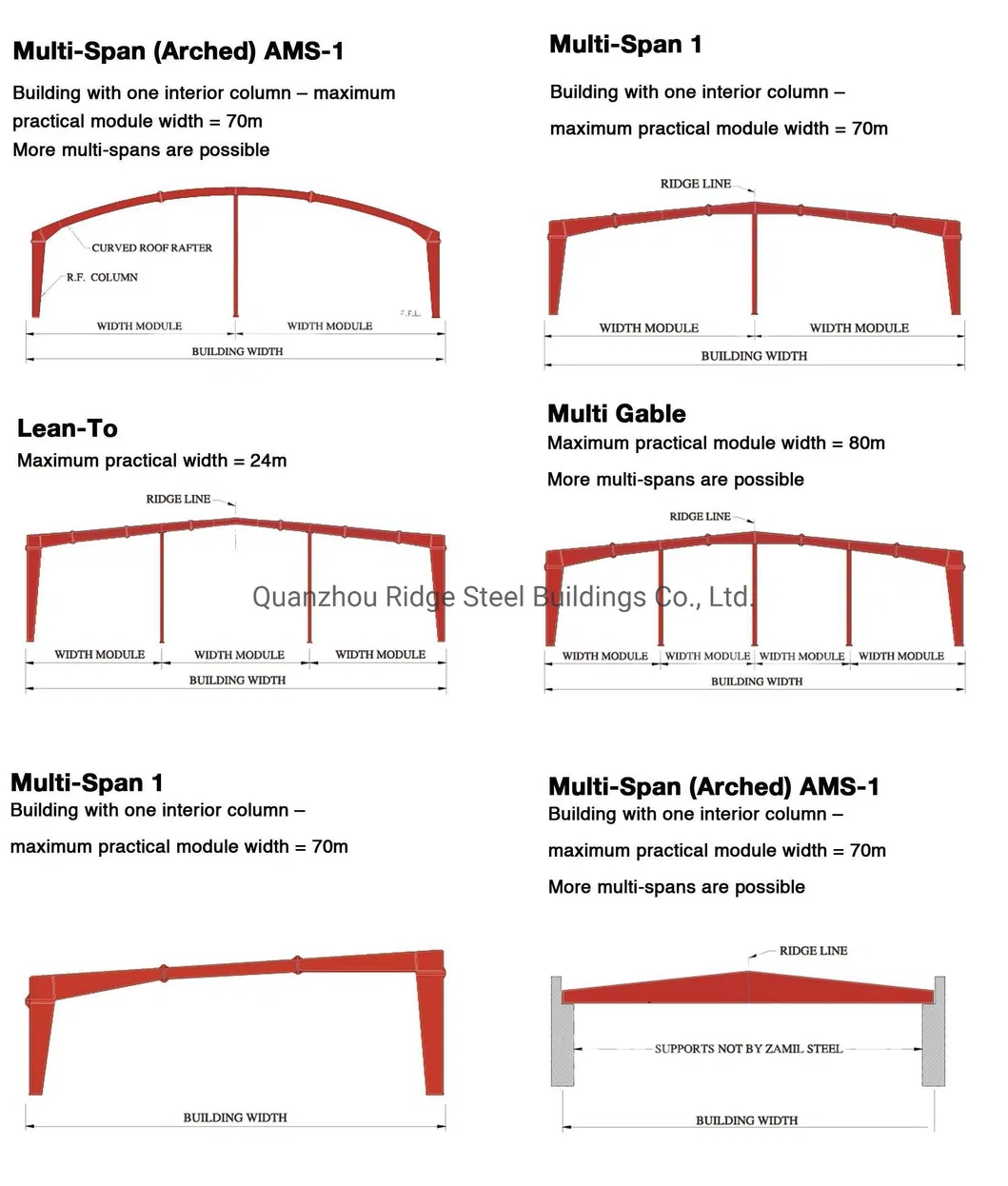

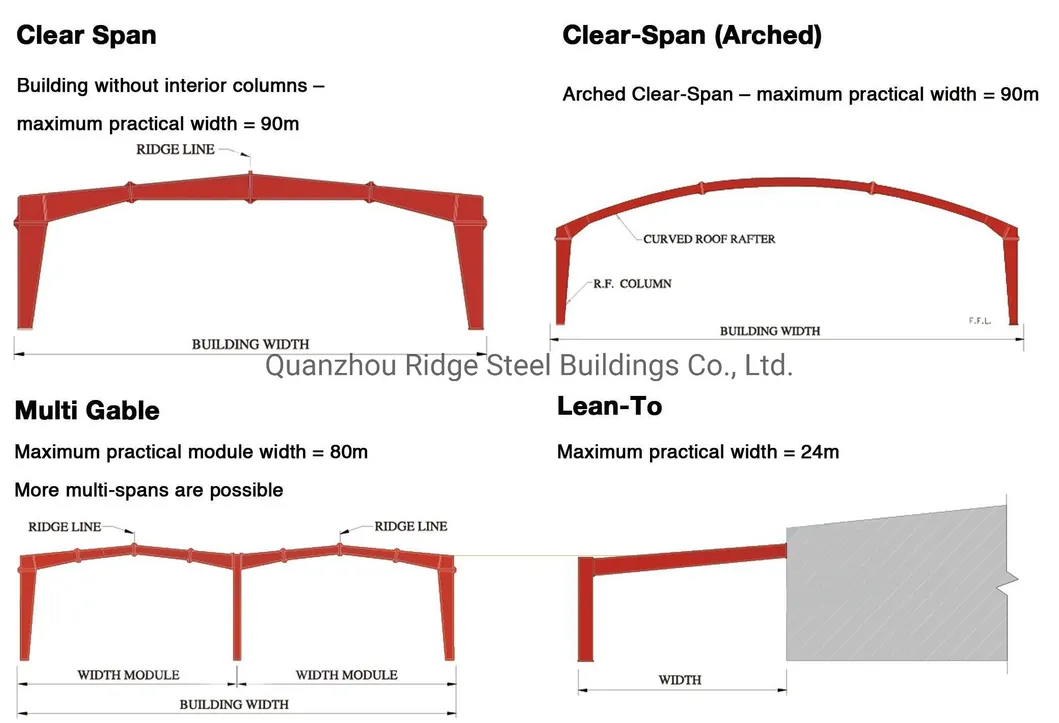

| 2) Type | Single slope, double slope, Multi-slope; Single/double/Multi-span; Single/double/Multi-floor |
| 3) Base | Steel foundation bolts |
| 4) Steel frame | Material Q345(S355JR)(Gr50) or Q235(S235JR) steel; Straight or Variable cross-section; Welded H section painted or galvanized |
| 5) Bracing | X-type or V-type or other type bracing made from angle, round bar, etc. |
| 6) Wall & Roof Purlin | C section channel or Z section channel, Size from C80~C300; Z100~Z300 |
| 7) Cladding | Single color corrugated steel sheet 0.326~0.7mm; Sandwich panel (EPS, Rock Wool, Glass Wool, PU) 50-200mm thickness |
| 8) Window | UPVC/PVC or Aluminum Alloy window frame with glass |
| 9) Door | Exterior: Sliding or Roller shutter door; Internal: 50mm EPS sandwich panel with aluminum frame |
| 10) Gutter | Color steel sheet, galvanized steel, or stainless steel |
| 11) Rainspout | PVC pipe |
| 12) Connection | High strength bolts, intensive bolt, self-drilling screws |
| 13) Accessories | Skylight panel, Ventilation, Fasteners etc. |
| 14) Surface process | Shot blasting Sa2.5; Two layers of Anti-rust Painting or galvanized |
| 15) Packing | Main steel frame without packing loaded in 40' GP, roof and wall panel loaded in 40' HQ |
To check the cost of a steel structure, please provide the following details:
| Item | Popular Size | Popular Height |
|---|---|---|
| Steel warehouse | 30x50m | 5m |
| Steel workshop | 40x60m | 7m |
| Storage shed | 16x36m | 4m |
