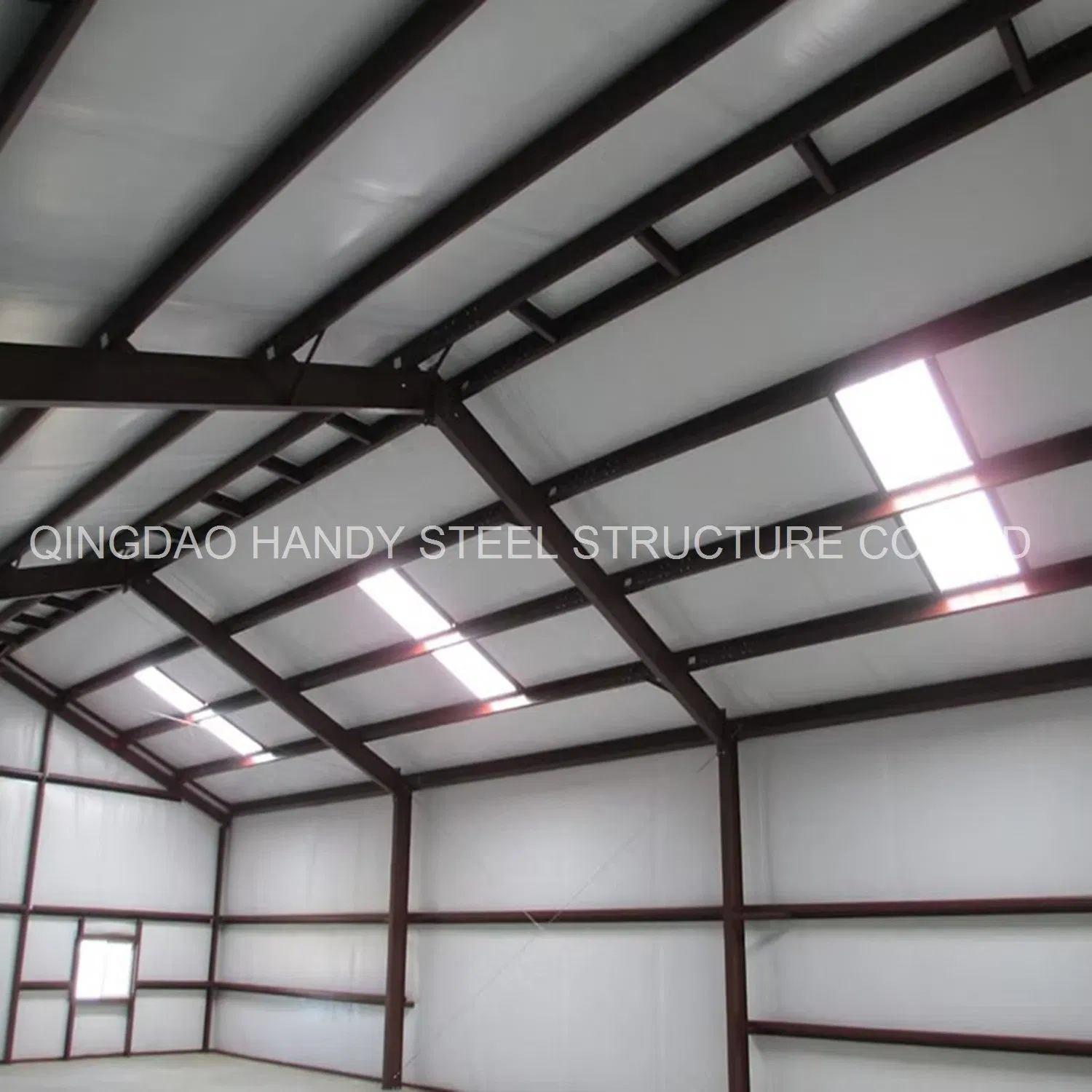

Prefabricated Steel Structure Warehouse Workshop Factory Industrial Buidling

Customization:	Available
After-sales Service:	Installation Guide, 2D & 3D Drawing, Video
Connection Form:	Bolt Connection

Overview & Basic Info

Model NO.Custom Steel Structure

Construction MemberH Column & Rafter, Tie Beam, X Brace, Purlin etc

GradeCarbon Structural Steel

Molding MethodHot Rolled & Weld

Residential Wall StructureWall Support

StandardBS, ASTM, DIN, GB, En1090

Steel TypeQuality Carbon Structural Steel

StructureSteel Structure

DrawingFree Design Drawing, 2D & 3D Version

Wind, Snow, Earthquake Resistance80~280km/H, 30~200kg/M2, Grade 9

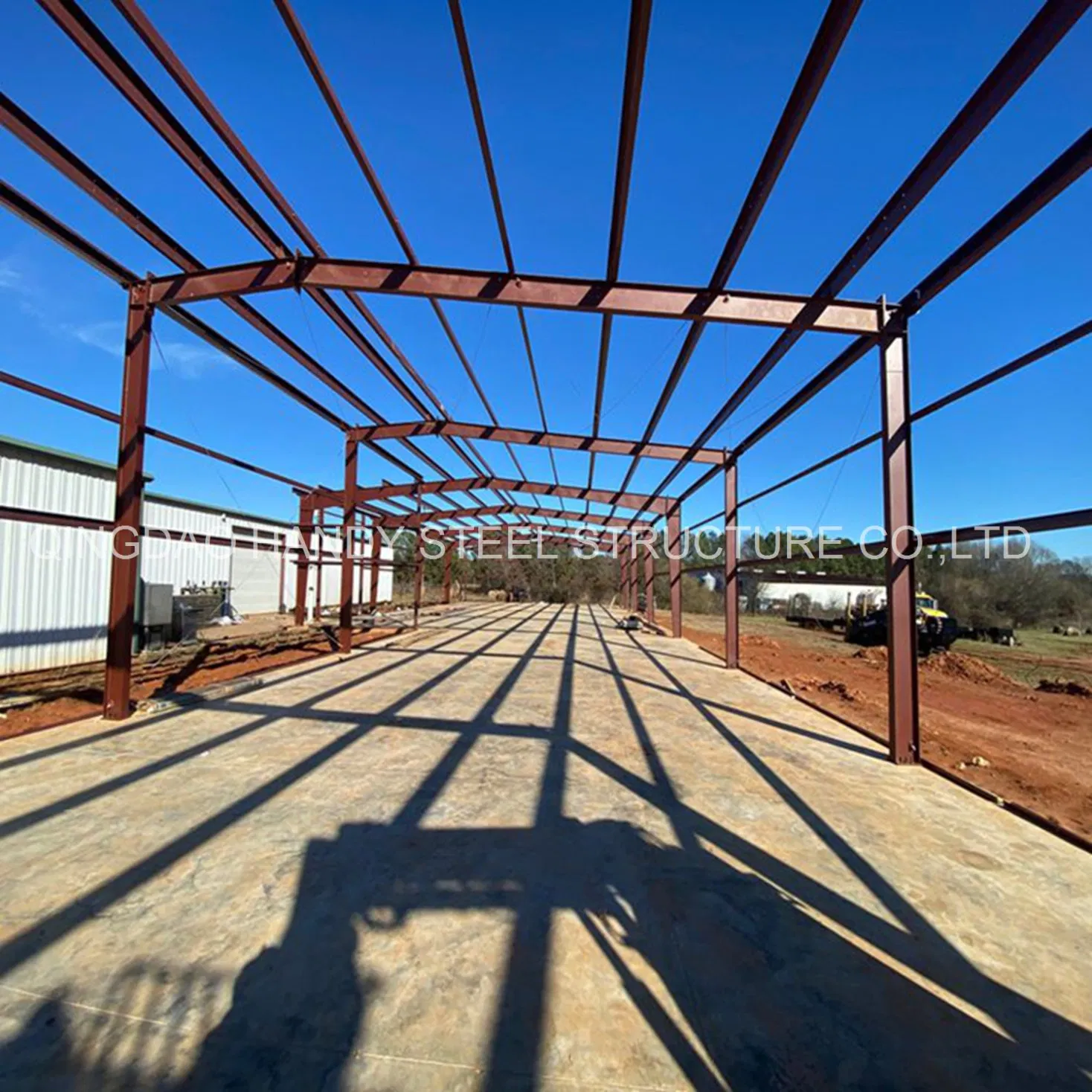

FrameSteel Portal Frame Building

Delivery Time4~6 Weeks

CertificateISO, CE, Third Party Inspect

Roof Pitch10%, 12%, 16%, 25%, 30% etc

Column & RafterHot Rolled H Beam or I Beam

Tie BeamRound Pipe or Square Tube

PurlinC Purlin, Z Purlin, Hot Rolled H Beam Purlin

Roof CoverageSingle Corrugated Sheet or Sandwich Panel

Wall CoverageSingle Corrugated Sheet or Sandwich Panel

WindowPVC or Aluminum Alloy Frame Window

GateSliding Industrial Door or Roller Shutter Door

OptionSkylight Belt, Ventilation Fitting, Gutter, Crane

ApplicationSteel Workshop, Steel Warehouse, Steel Shed etc.

Transport PackageMain Structure Loading in 40FT Ot, Others Loading

SpecificationCustomized

OriginChina

HS Code7308900000

Production Capacity10000sqm Per Month

Packaging & Delivery Details

Package Size200.00cm * 500.00cm * 600.00cm

Package Gross Weight26000.000kg

Prefabricated Steel Structure Warehouse Workshop Factory Industrial Building

Product Description

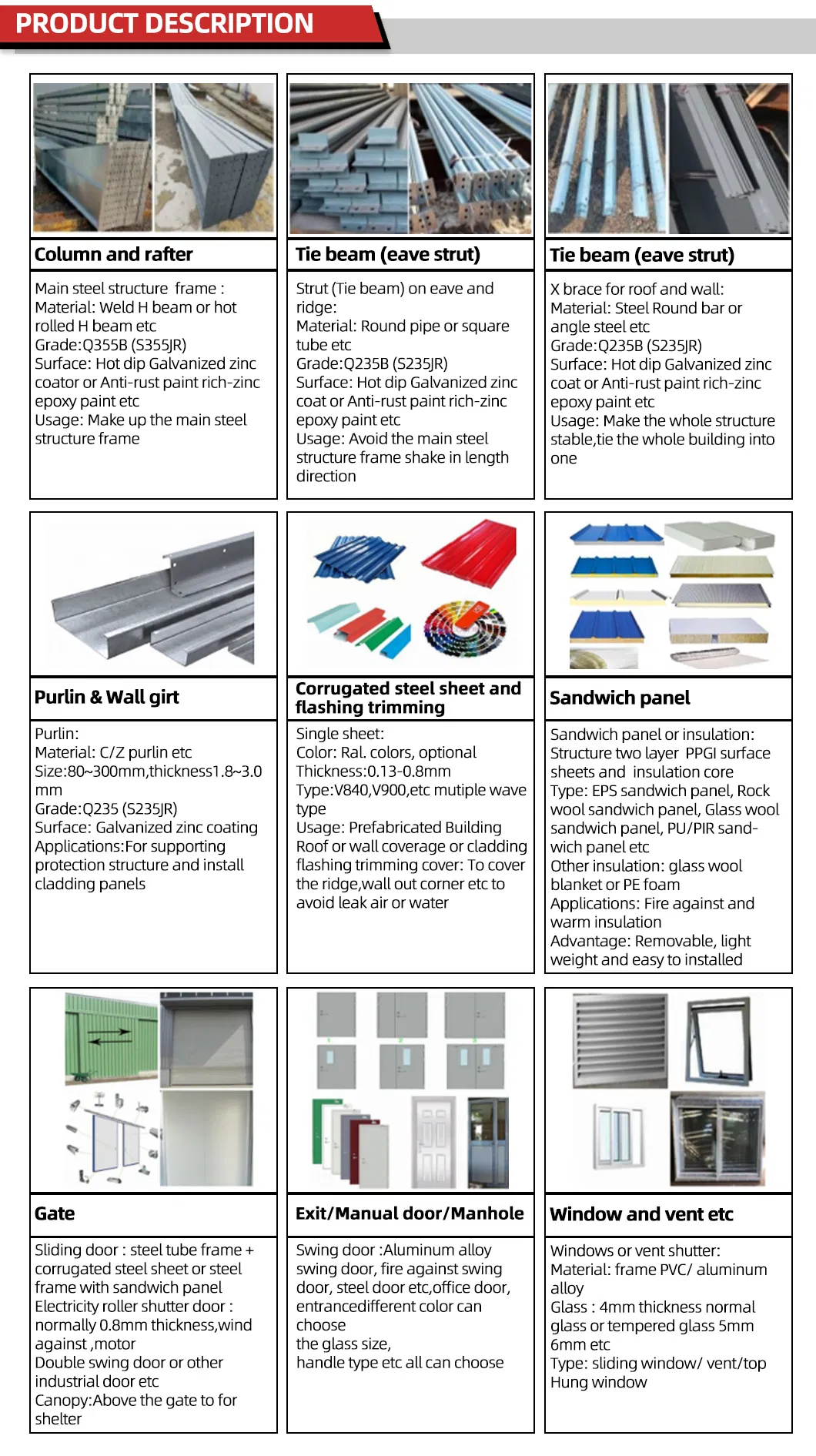

Technical Specifications
Application:	Steel warehouse, steel structure building, steel structure warehouse, steel workshop, steel structure workshop, hangar, sport hall, steel hall, shopping mall, cow shed, chicken building etc.
Clear span: (width)	6~50m without middle column
Height:	2~20m
Length:	As your requirement
Material Grade:	Q355B (S355JR) or Q235B (S235JR) steel or as request
Column & Rafter:	Welded or Hot rolled H beam
Tie beam:	Round pipe or square tube or as request
X brace:	Round steel bar, angle steel or as request
Purlin:	C purlin, Z purlin (thickness: 2.0mm, 2.2mm, 2.5mm, 3.0mm)
Sag rod:	Steel round bar, angle, C purlin etc.
Wall & Roof coverage:	Single corrugated steel sheet (0.12~1.2mm); EPS, Rockwool, glass fiber, PU core foam sandwich Panel (Thickness: 50mm, 75mm, 100mm, 150mm, 200mm)
Gate:	Electric roller shutter door / Sliding door
Exit Door:	Plastic steel / Aluminum alloy swing door / steel swing door
Window:	Plastic steel or Aluminum alloy frame sliding window / vent / top Hung window
Surface:	Shot blasting with anti-rust paint, rich-zinc epoxy paint etc., or hot dip galvanized
Certificate:	ISO9001, CE EN1090 EXC2, IWE etc.
Quality Control:	Third party inspection (SGS, QIMA, BV) accepted
Crane:	5MT, 10MT, 15MT, etc.
Other accessories:	Gutter, flashing trimming cover, downspout, ventilation fitting, skylight belt, bolts, anchor bolts, self-tapping screws etc.
Package:	Main steel frame loaded in 40'OT; roof and wall panels loaded in 40'HQ.

Customization & Structure Types

When building a steel structure facility, you have numerous layout and component choices:

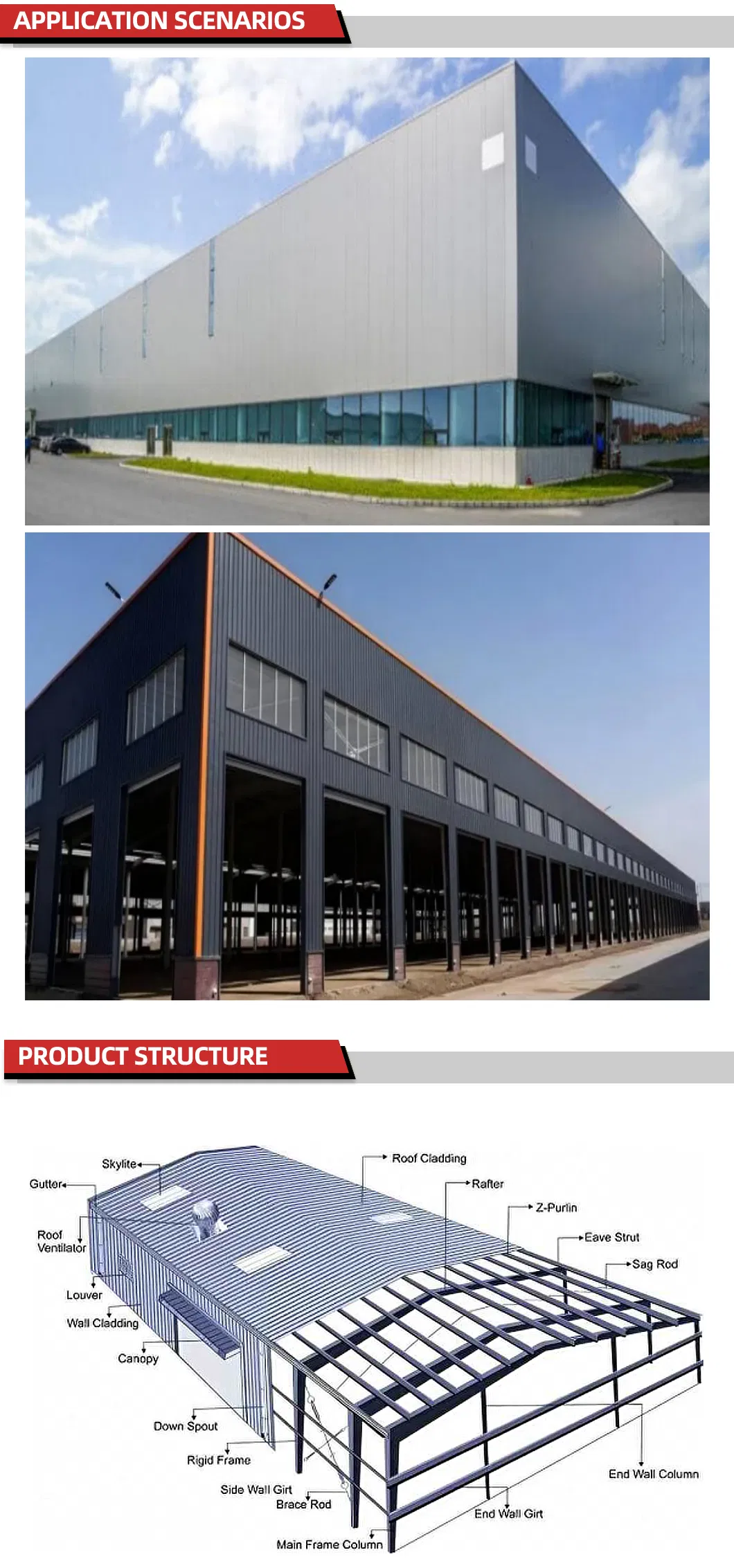

Structure frame options: Single/multi-span configuration, lean-to extensions, standard H-section frames, structural tube frames, handrails, and surrounding fencing systems.
Coverage options: Parapet brick walls (custom heights), single-skin corrugated metal sheets, insulated sandwich panels, natural skylight belts, custom vents, external/internal gutters, and downspout systems.
Window & door options: Heavy-duty industrial sliding doors, electric roller shutters, metal swing exit doors, sliding window tracks, and awning/top-hung ventilation frames.

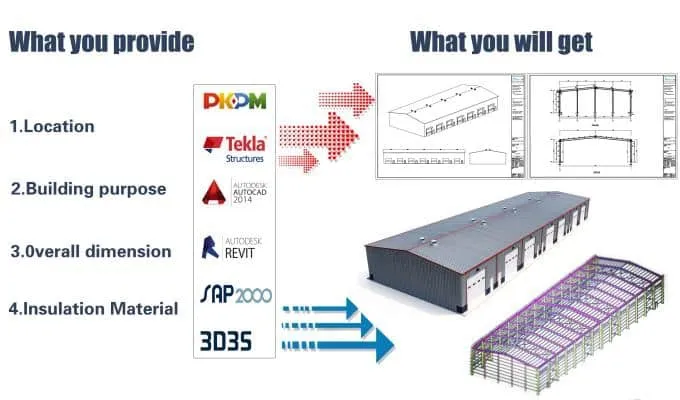

How to Order

To receive a precise free design and quotation, please provide the details of your project below:

1. Project Location: Country and city location where it will be built.

2. Dimensions: Length * Width * Eave Height (Accept internal columns or require clear span if width is over 30m).

3. Wind Load: Maximum wind speed (kn/m², km/h, or m/s). *If unknown, we will design based on regional historical experience.

4. Snow Load: Maximum expected snow height (kn/m² or mm).

5. Seismic Resistance: Earthquake magnitude level standard.

6. Brick Wall Requirement: Is a bottom brick wall needed? (If yes, specifies e.g., 1.2m height).

7. Thermal Insulation: Do you need insulation? (We offer EPS, Glasswool, Rockwool, or PU sandwich panels; if not required, single metal steel sheets).

8. Doors: Type, quantity, and dimensions (Width * Height).

9. Windows: Type, quantity, and dimensions (Width * Height).

10. Surface Treatment: Choice between Anti-rust Paint or Hot-Dip Galvanization.

11. Additional requirements: Need for a mezzanine level, overhead cranes, or other specific design loads.

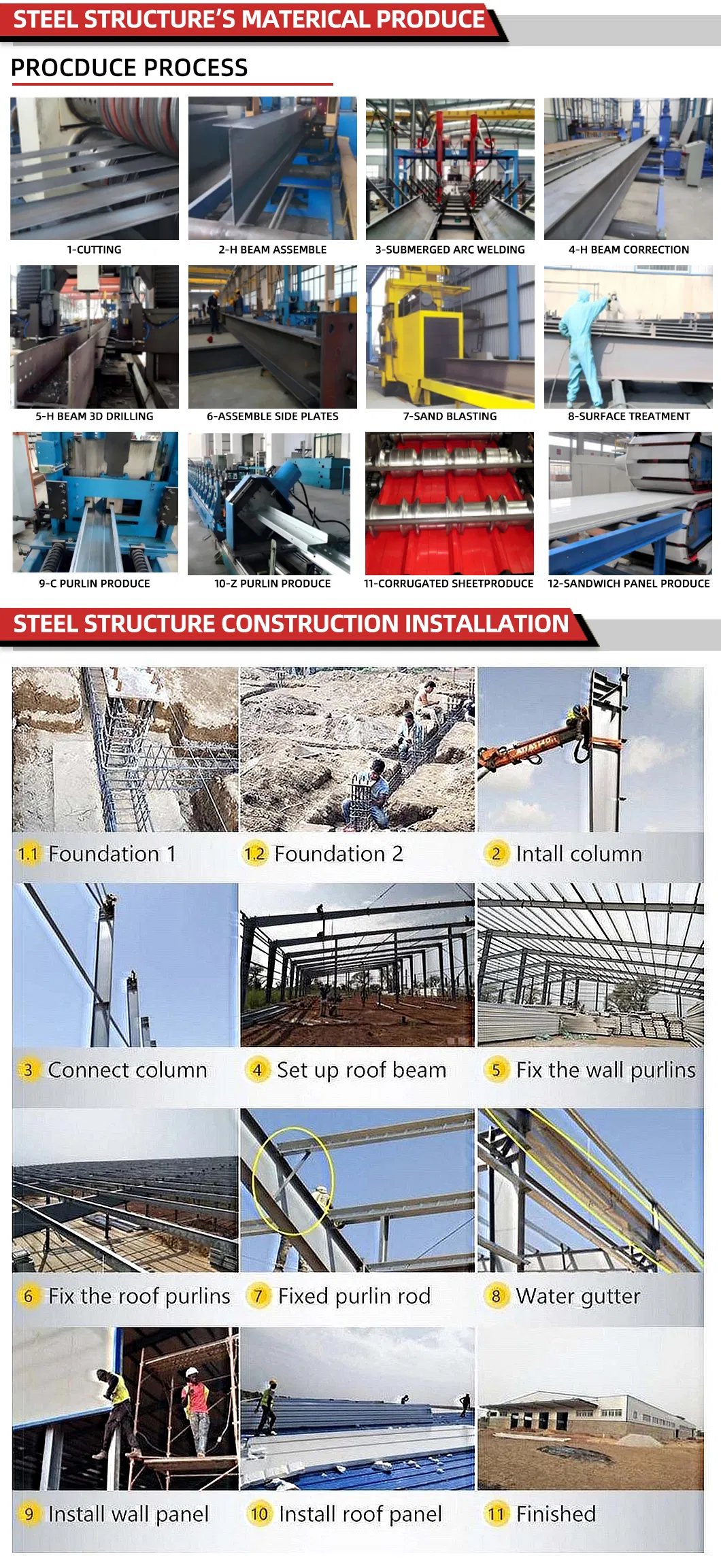

Packaging & Shipping

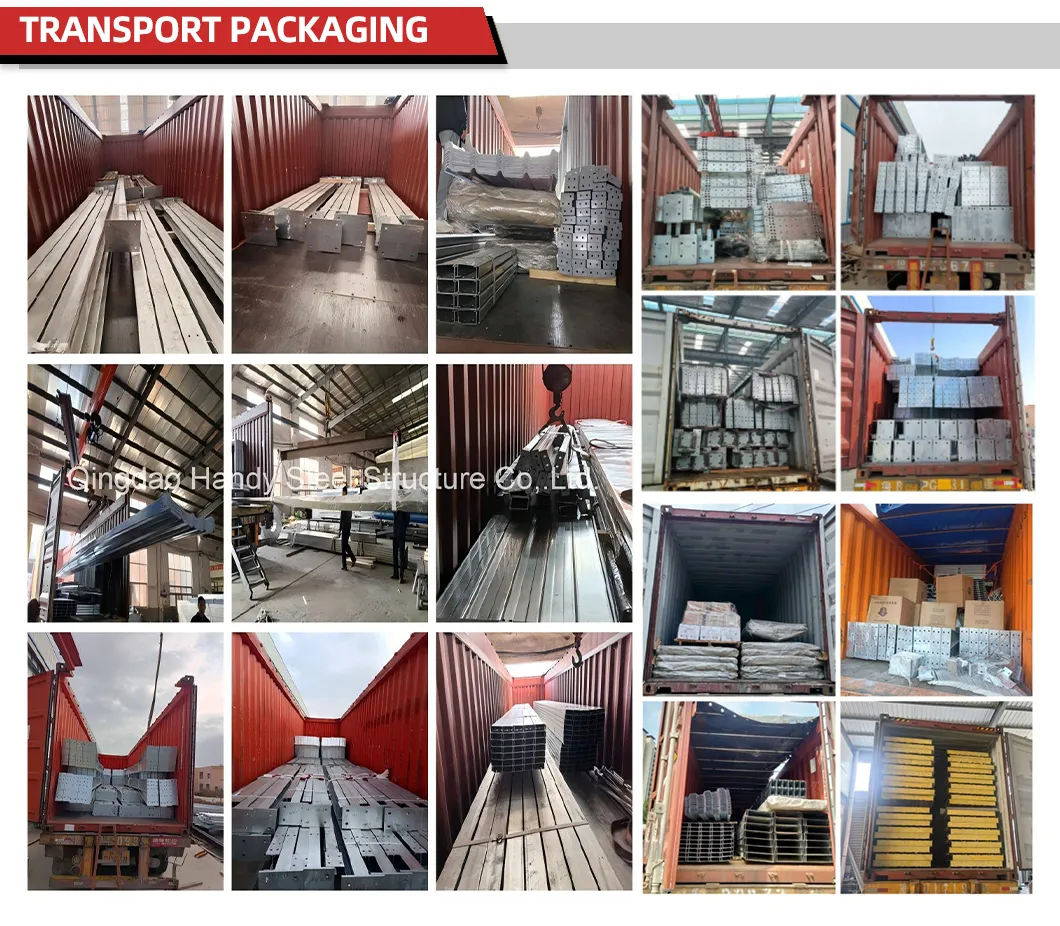

Safe Steel Structure Packaging and Container Loading

Certifications & Global Standards

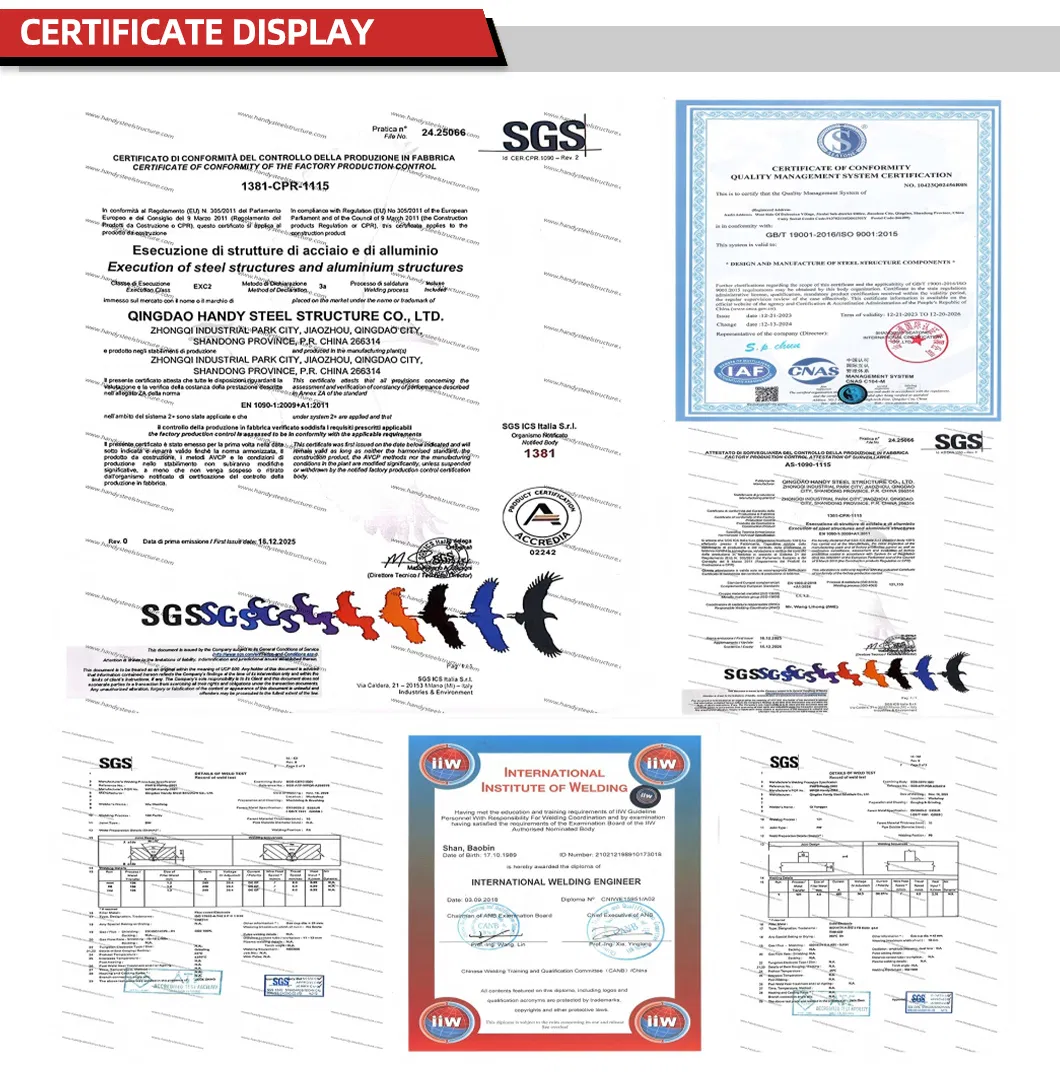

Industry standard compliance certification catalog

Over 15 Years of Export Experience

Our structures comply with international specifications and standards across major regions:

Europe Standard: EN1090 EXC2 - CE approved. (Successfully delivered to Norway, Iceland, France, Spain, Romania, Czech Republic, Croatia, etc.)
Africa Standard: EN1090, BS5950-2, GB, etc. - CE, BV, SGS approved. (Delivered to Mauritania, Senegal, Côte d'Ivoire, Ghana, Nigeria, Cameroon, Congo, Angola, Zambia, South Africa, Malawi, etc.)
Middle East Standard: EN1090, BS5950-2, GB, etc. - CE, BV, SGS approved. (Delivered to Saudi Arabia, Oman, Qatar, Israel, Lebanon, Jordan, etc.)
Southeast Asia: BS5950-2, GB, etc. - BV, SGS approved. (Delivered to Myanmar, Vietnam, Malaysia, Brunei, Philippines, Cambodia, etc.)
Australia Standard: AS-4100-1998 - SGS approved. (Delivered to Australia: Melbourne, Sydney, Adelaide, Queensland, and New Zealand.)
America Standard: AISC 360-16, EN1090, BS5950-2, GB, etc. - BV, SGS approved. (Delivered to United States, Mexico, Dominica, Paraguay, Colombia, Chile, Brazil, Argentina, etc.)

Certificate Catalogue

121 SAW (Submerged ARC Welding) Welder's Qualification Test Certificate-1
121 SAW (Submerged ARC Welding) Welder's Qualification Test Certificate-2
135 BW (Butt Welding) Welder's Qualification Test Certificate-1
135 BW (Butt Welding) Welder's Qualification Test Certificate-2
135 FW (Fillet Welding) Welder's Qualification Test Certificate-1
135 FW (Fillet Welding) Welder's Qualification Test Certificate-2
NDT (Non-Destructive Testing) Holder's Certificate
IWE (International Welding Engineer) Certificate
Material Test Certificate EN10204-3.2 (S235JR)
Material Test Certificate EN10204-3.2 (S355JR)
CE EN 1090-1:2009+A1:2011 Compliance (Execution Class: EXC2)
Mill Test Certificate (Q355B Hot rolled H beam, Q355B Steel plate, Q235B Angle steel)

Structural building compliance materials

Frequently Asked Questions

1) Is your steel structure building customized?

Yes, all of our steel structure buildings are completely customized to meet our client's unique dimensional and site requirements. Simply share your detail requests (dimensions, load factors, window/door specs), and we will design and quote for you free of charge.

2) What's the quality assurance you provide and how do you control quality?

We strictly self-inspect at every stage of design and fabrication. Third-party testing companies such as SGS, QIMA, and BV are welcome and accepted to ensure complete quality compliance.

3) Do you offer guiding installation on site overseas for steel warehouse buildings?

Yes. We provide complete 2D and 3D installation drawings along with detailed structural assembly videos to guide your team on-site. If needed, we can also dispatch structural engineers to cooperate on-site to ensure smooth installation.

4) What is your main market?

Our structural buildings are widely exported worldwide, including to Europe, Africa, the Middle East, Australia, Central America, and South America.

5) What standards and certifications do your steel structures comply with?

Our structural components are certified to international standards. We conform to EN1090 EXC2 (CE approved for European Union), AISC for American regions, and AS-4100 standards for Australia, with our materials backed by EN10204-3.2 mill verification and ISO9001 quality certificates.

6) What is the delivery time and how are components packaged?

Our typical delivery time is 4 to 6 weeks. To prevent shipping damage, main steel frames are securely bundled and loaded in 40' Open Top (OT) containers, while roof/wall panels and accessories are packed in 40' High Cube (HQ) containers.
