Dhingia Build
1 / 5

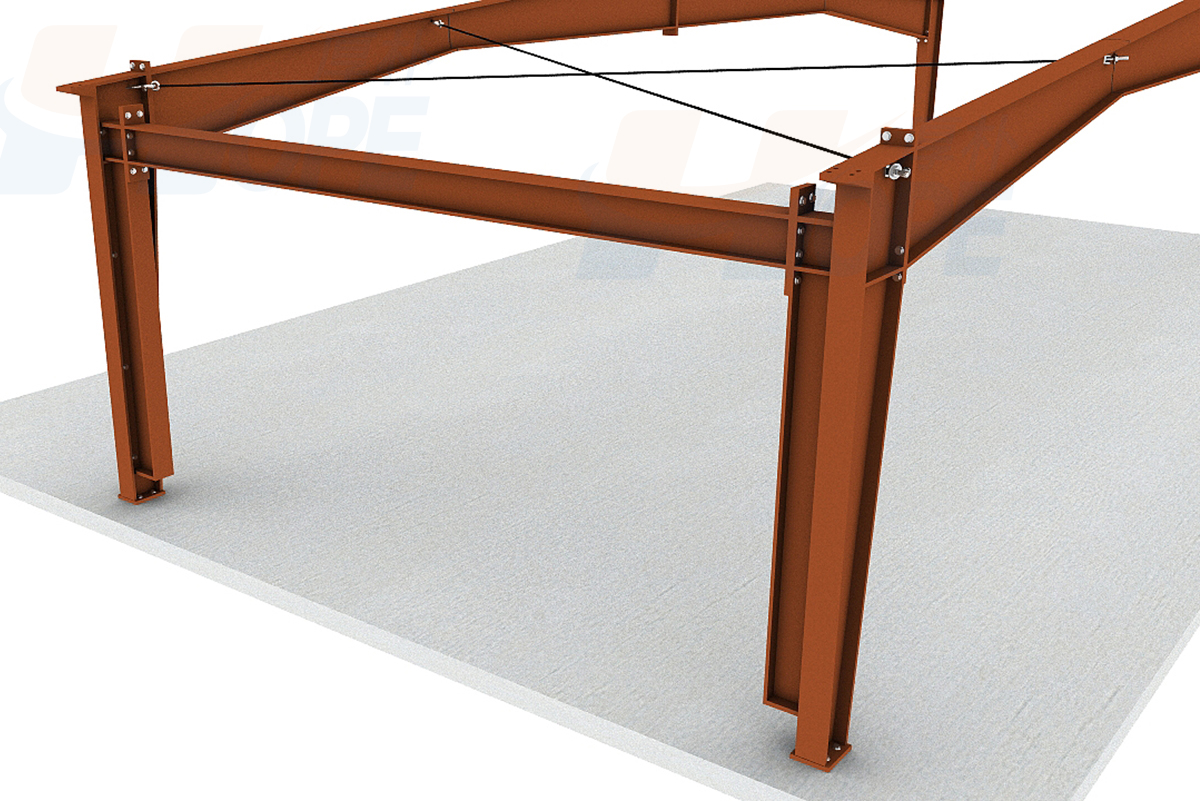

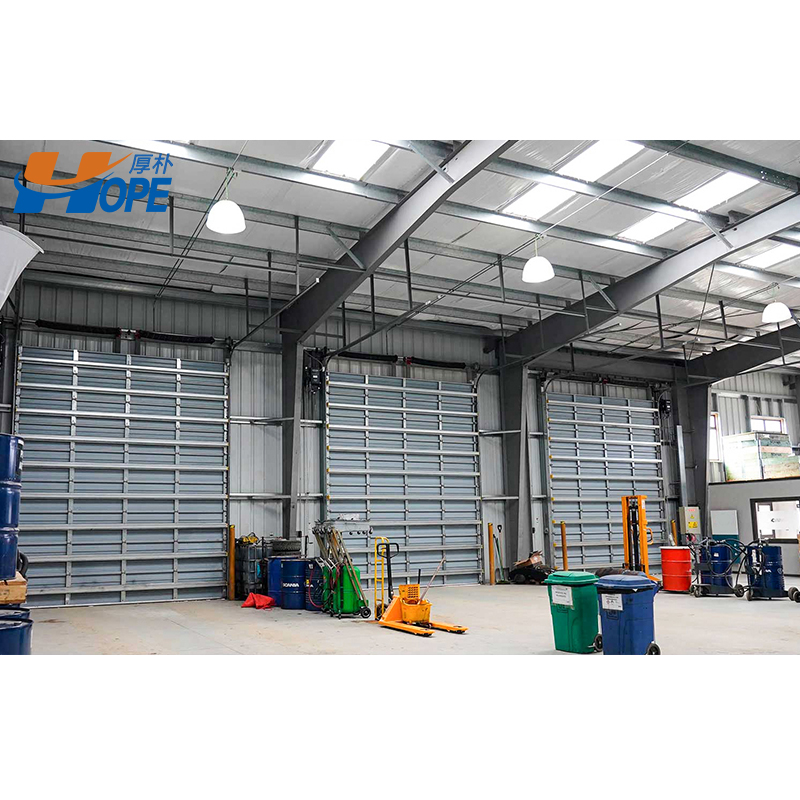

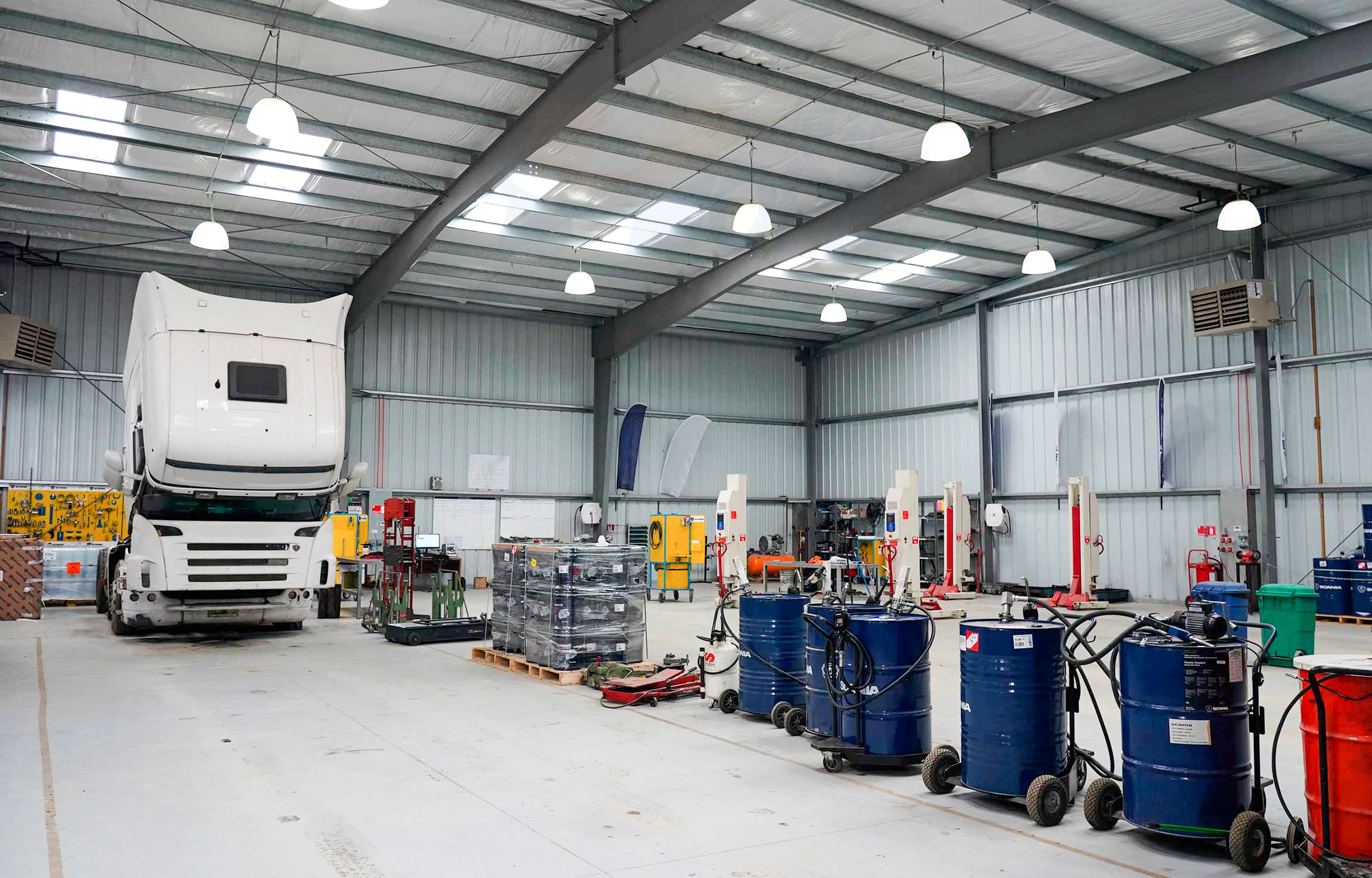

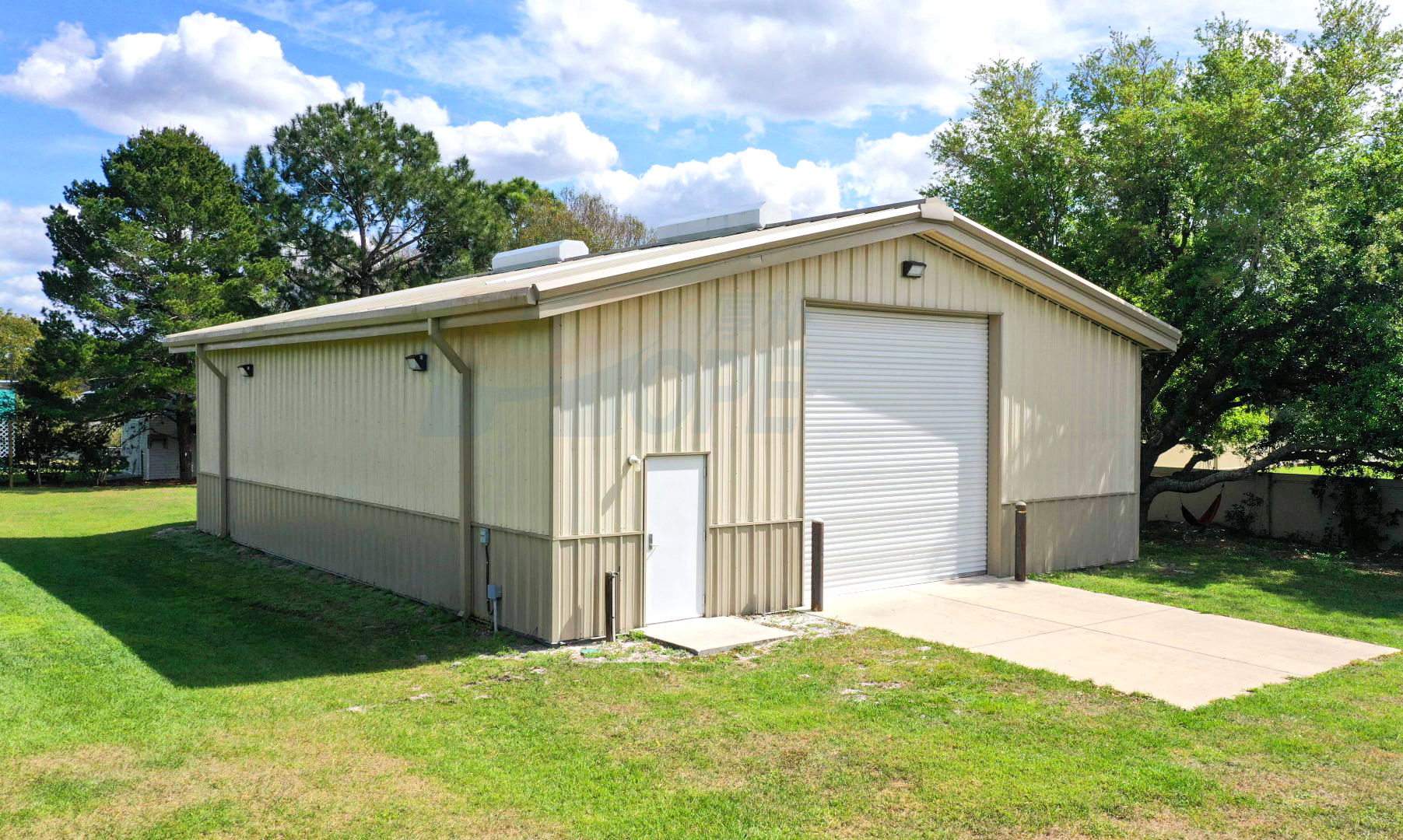

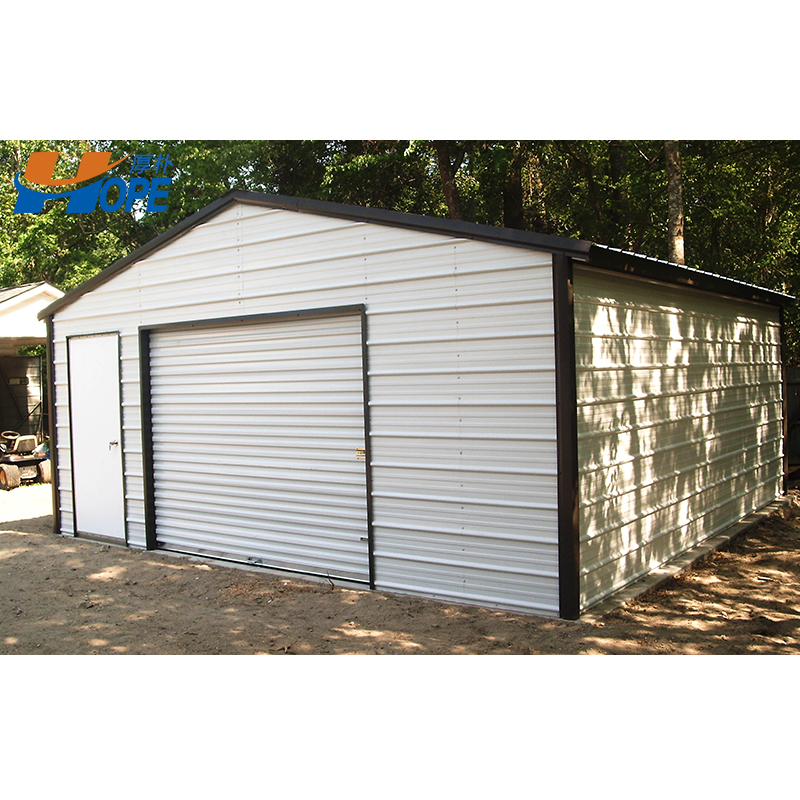

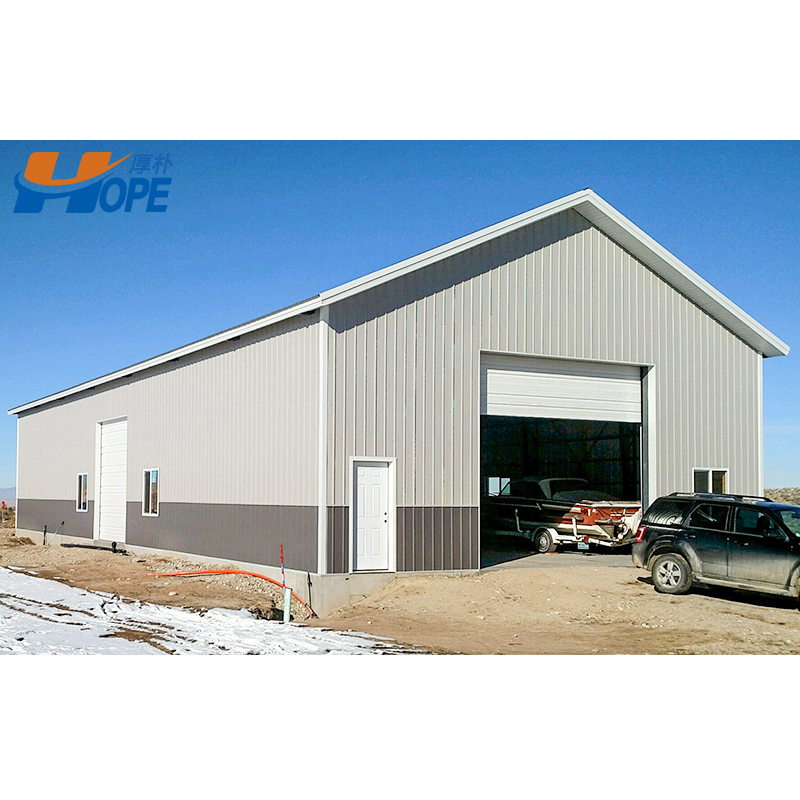

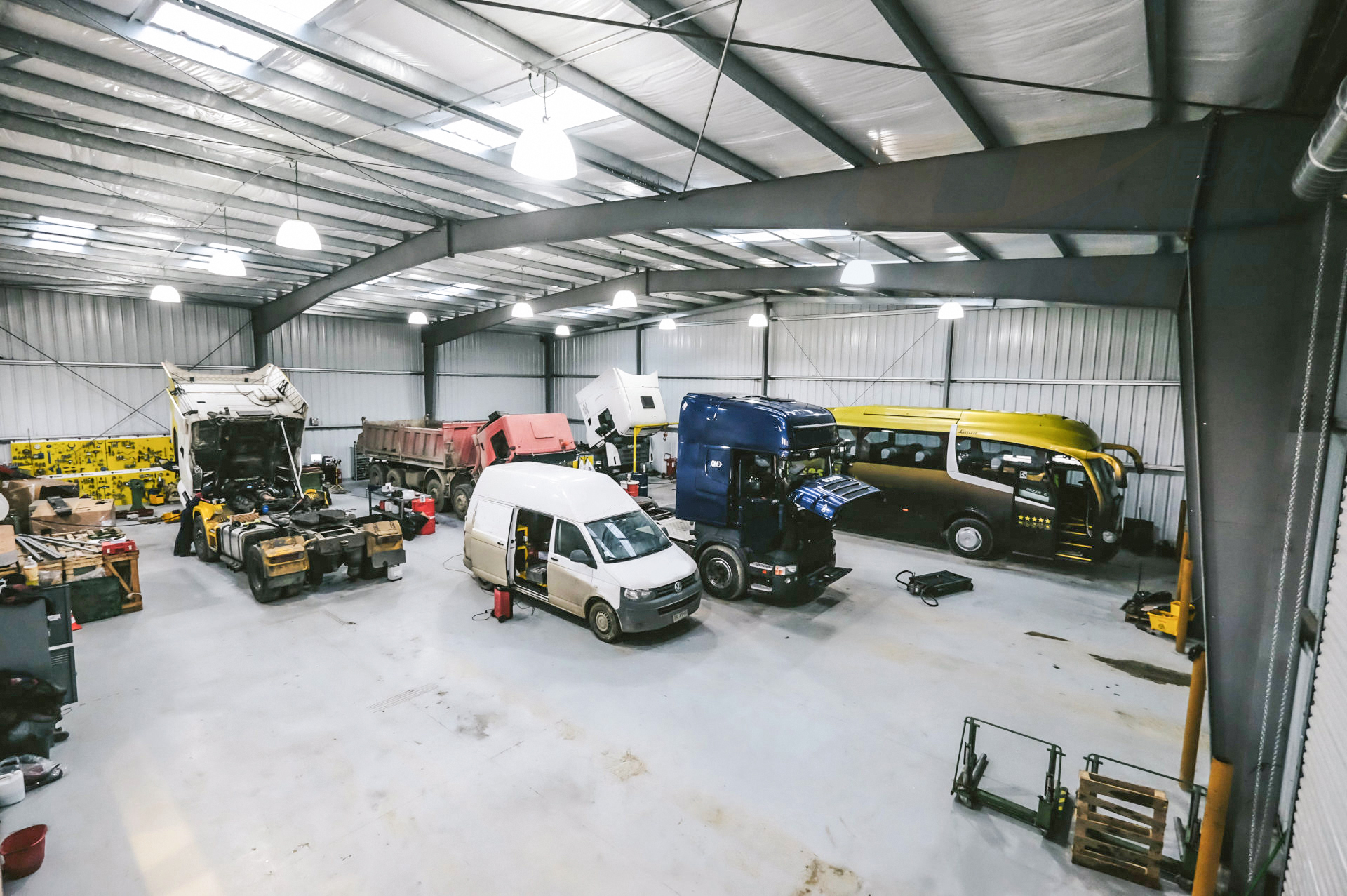

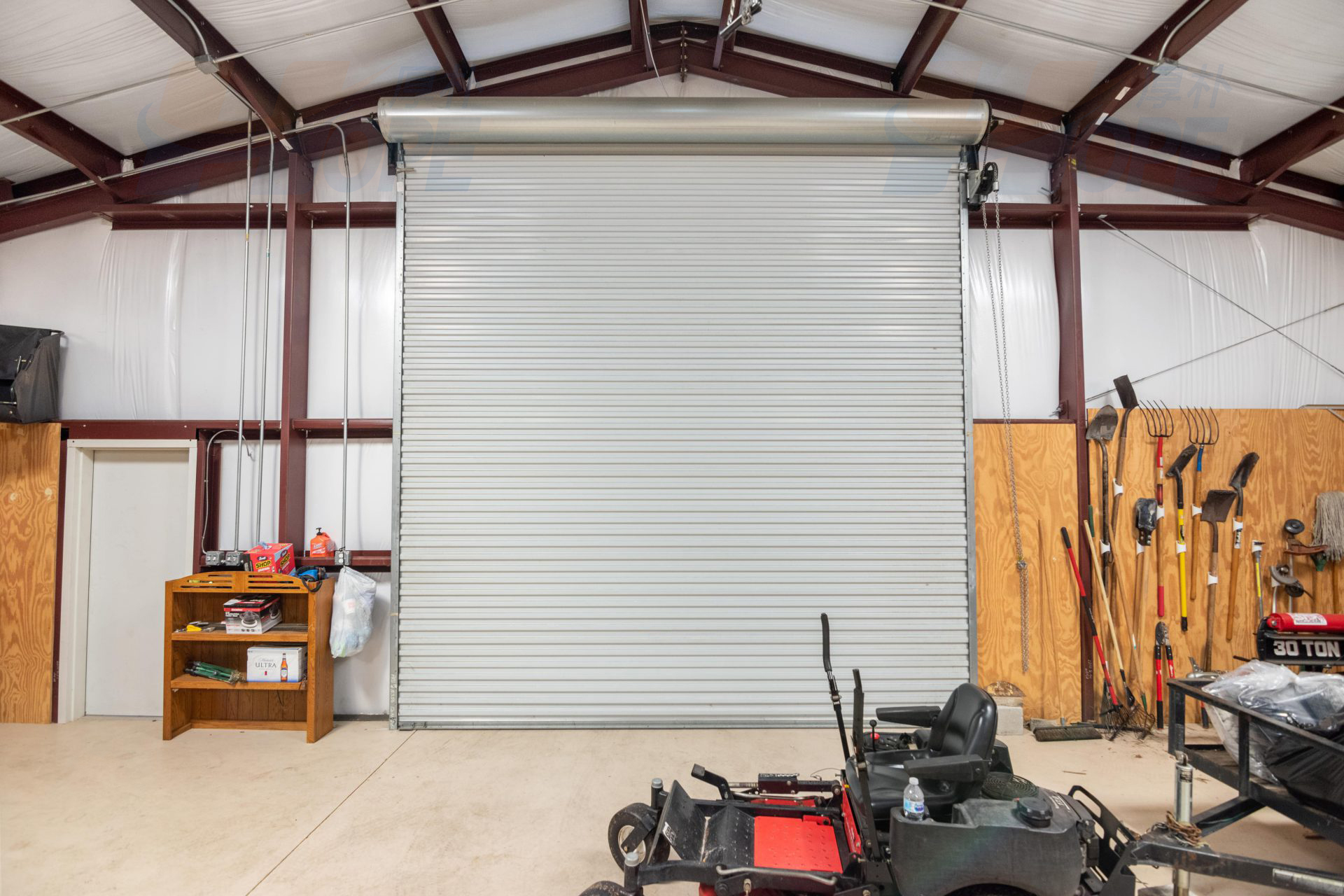

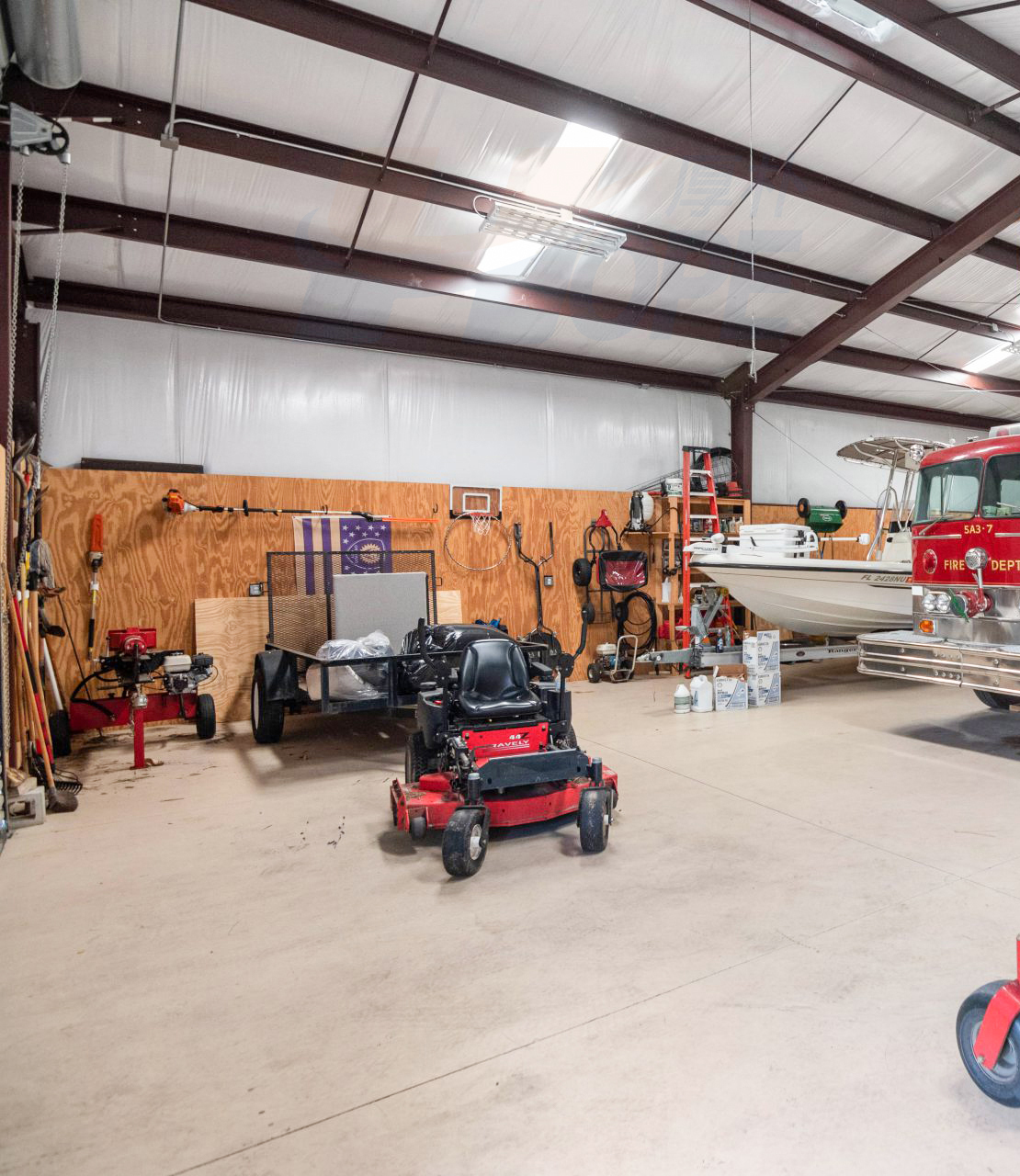

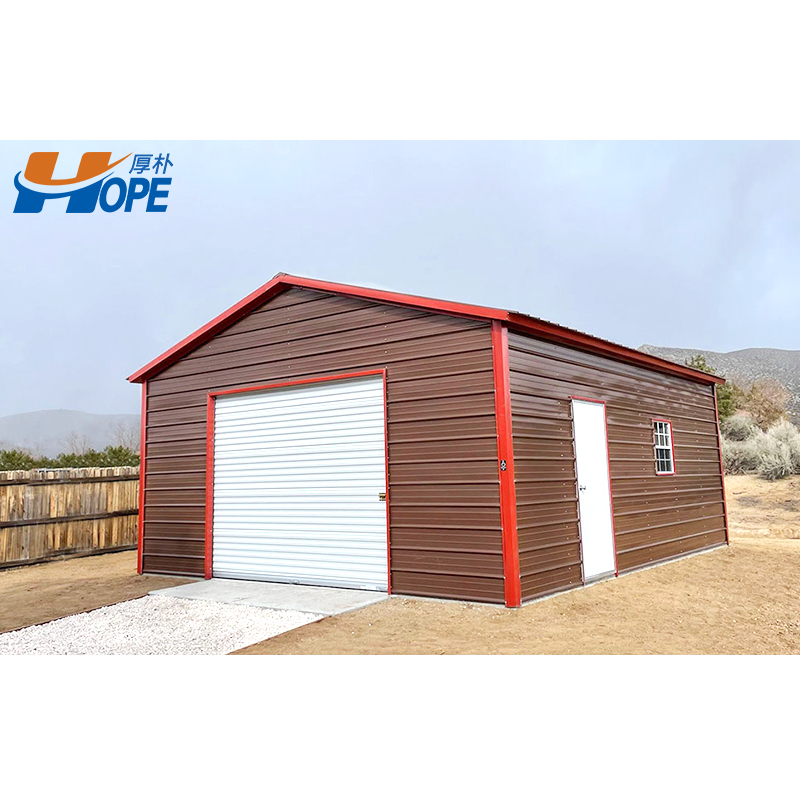

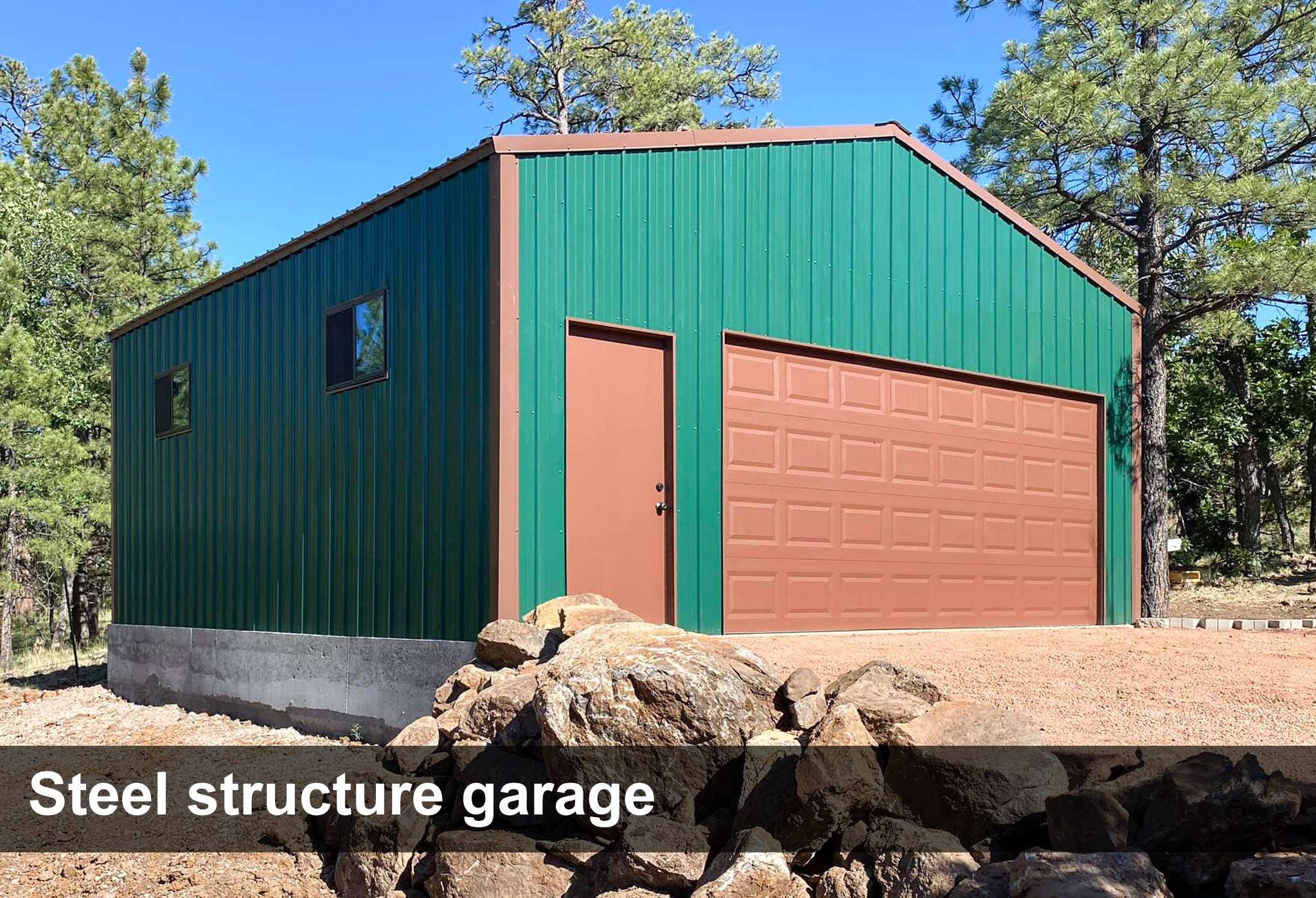

Steel structure garage features high fire resistance, strong corrosion resistance, and is solid and durable enough to withstand high winds, snow disasters, and earthquakes. It mainly consists of main bearing components made of steel, including steel columns, steel beams, steel roof trusses, and the overall structural system. Each component is connected using welds, bolts, or rivets, forming a stable link between the mainframe and the secondary structure.

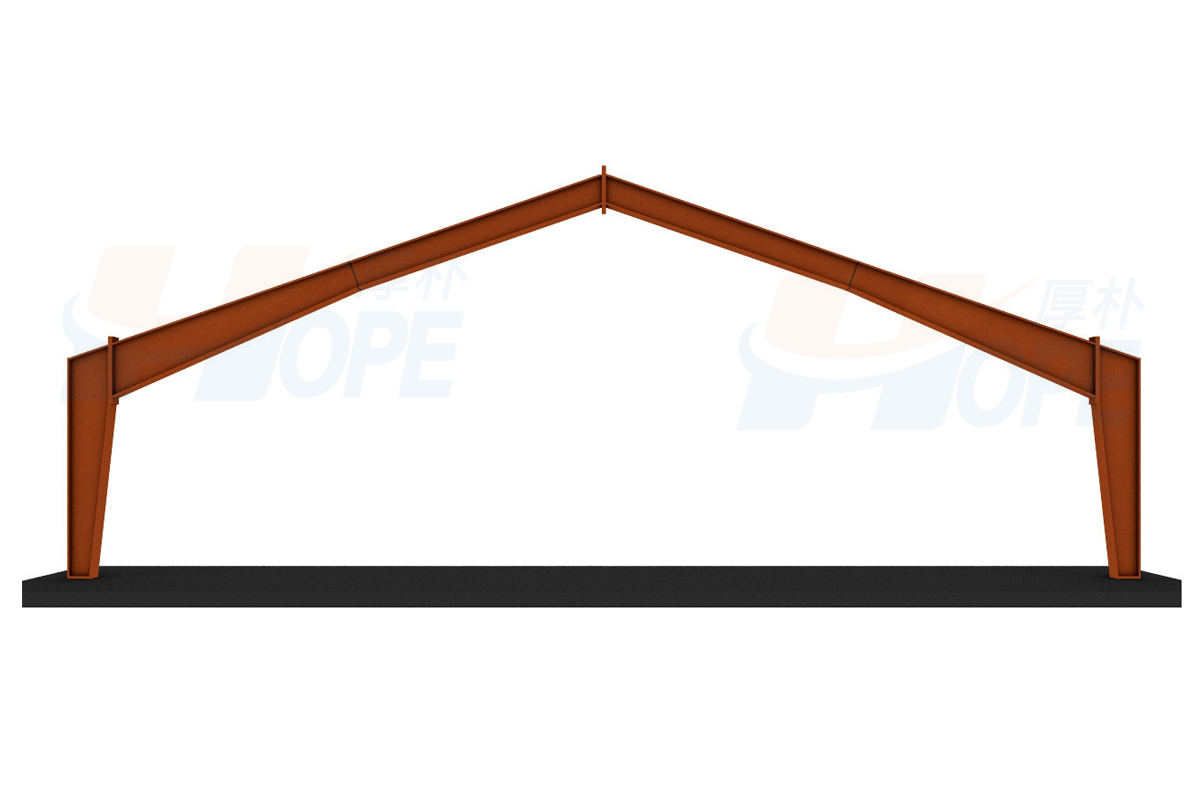

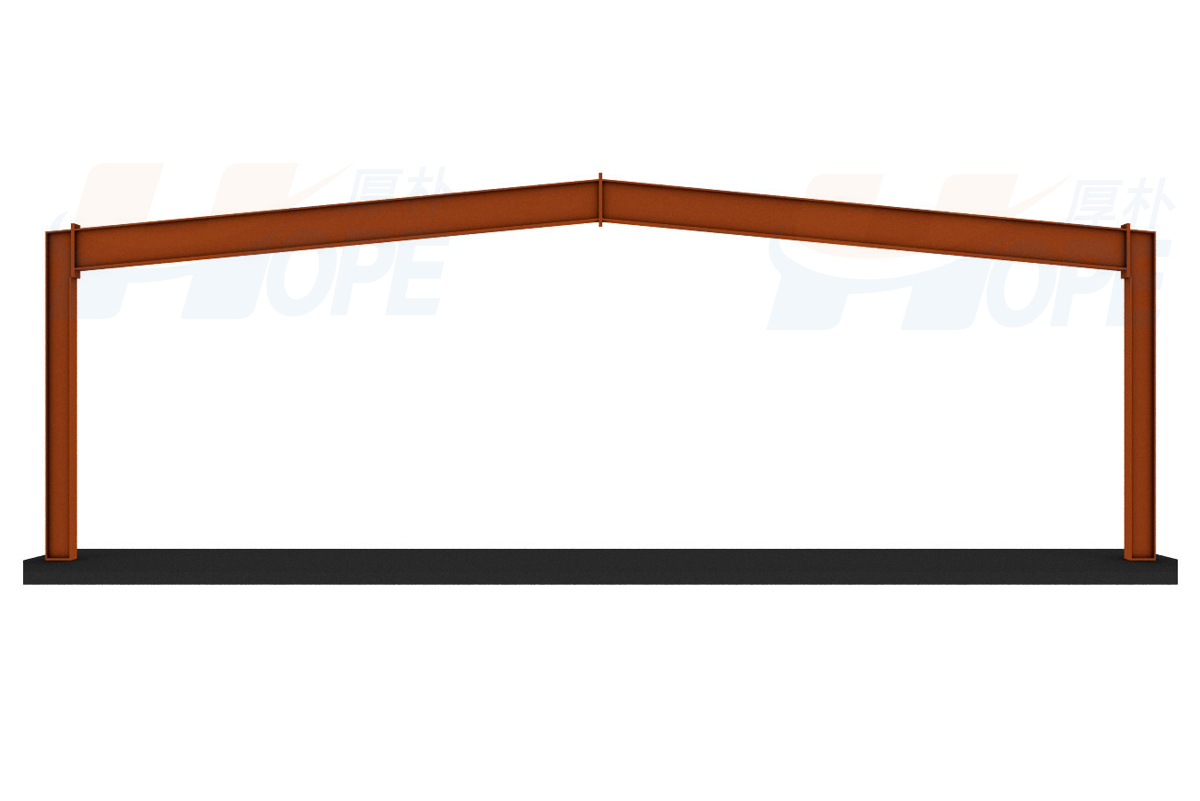

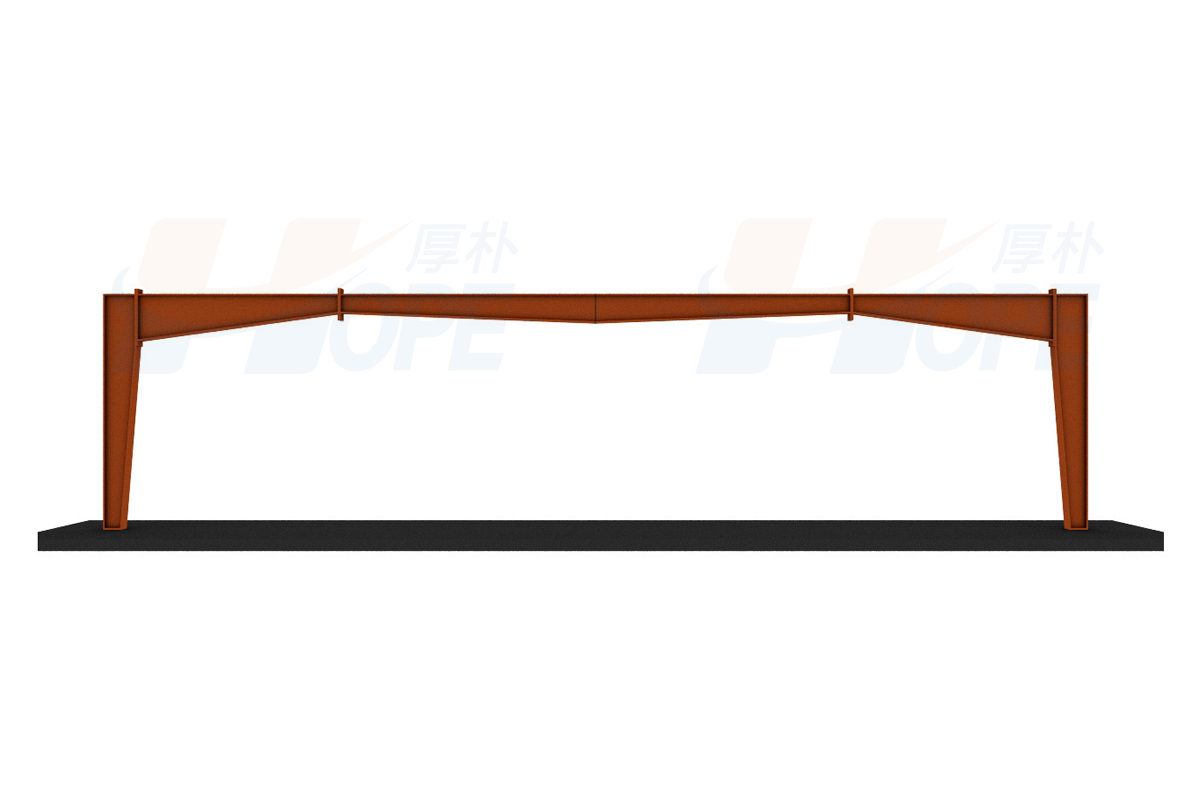

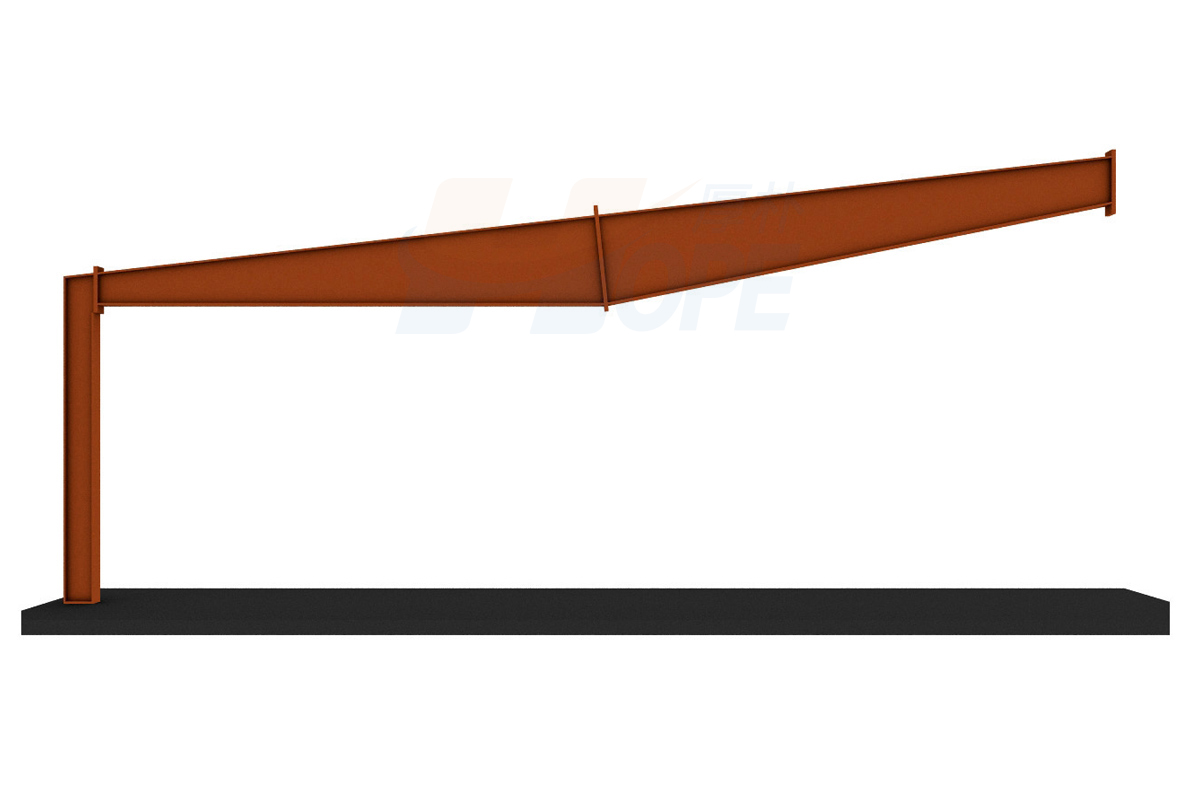

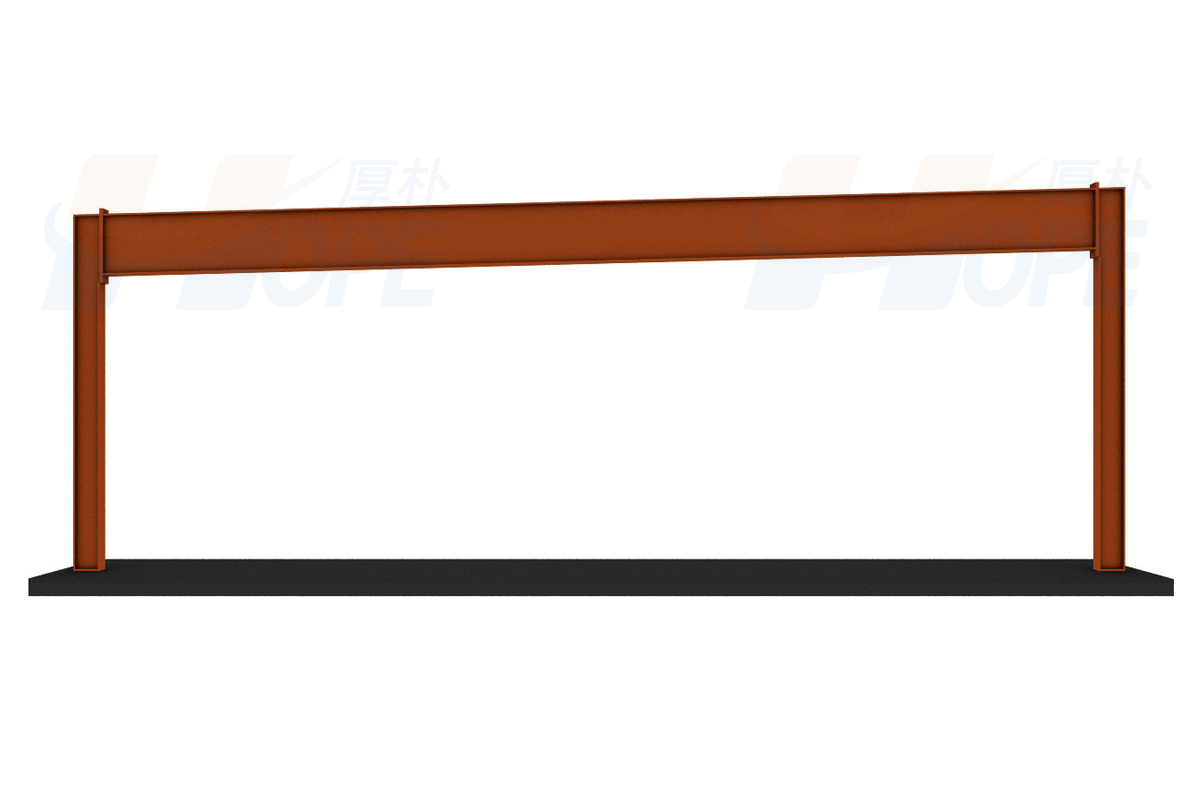

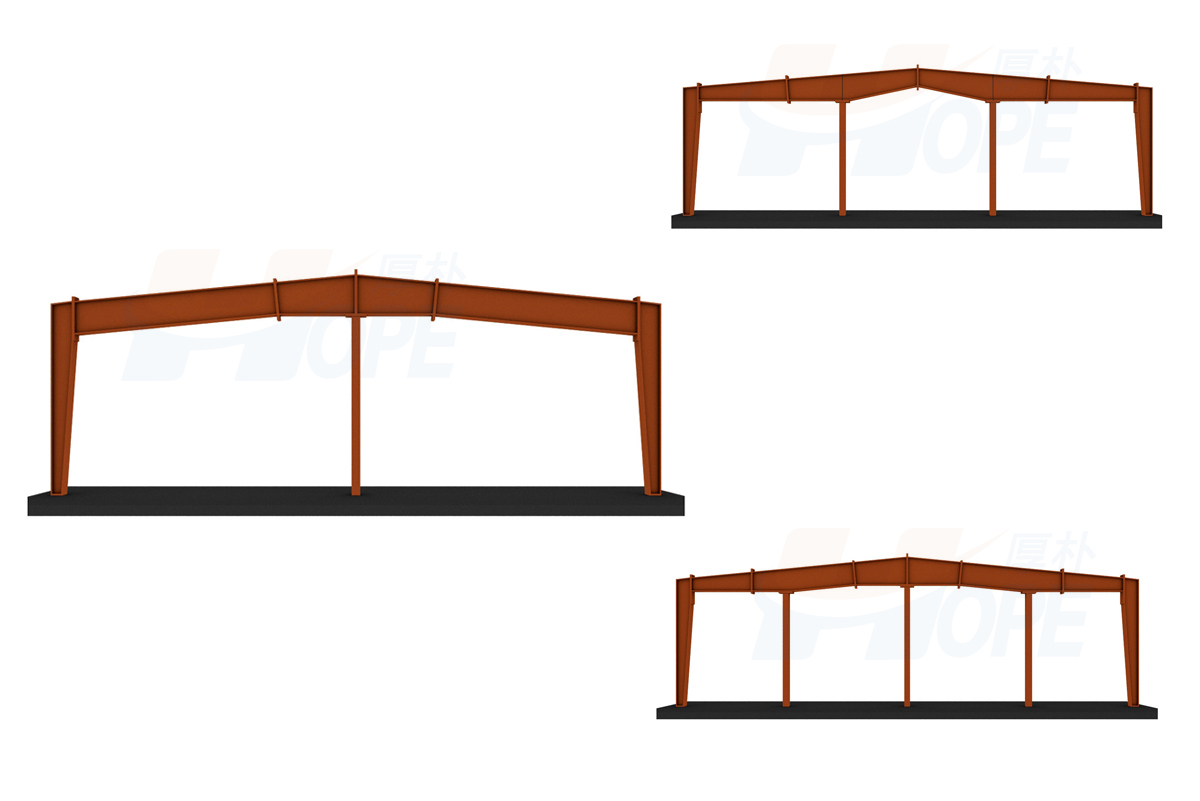

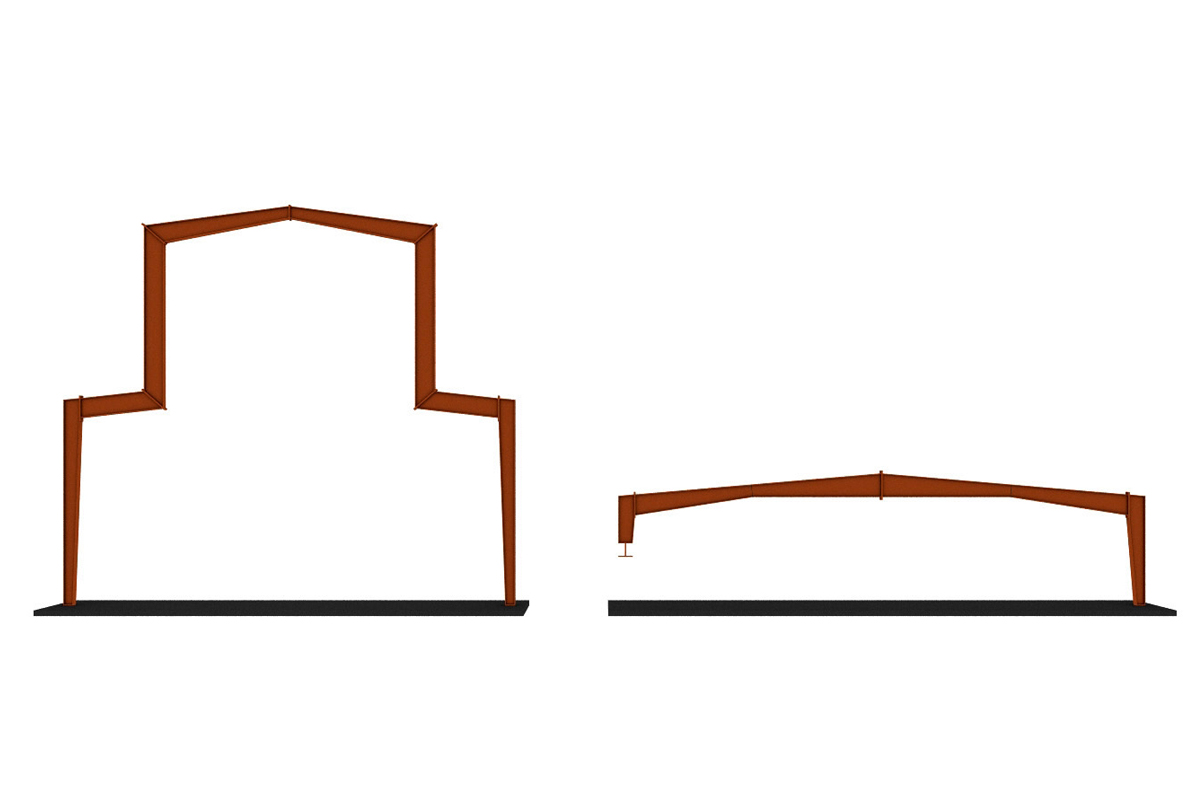

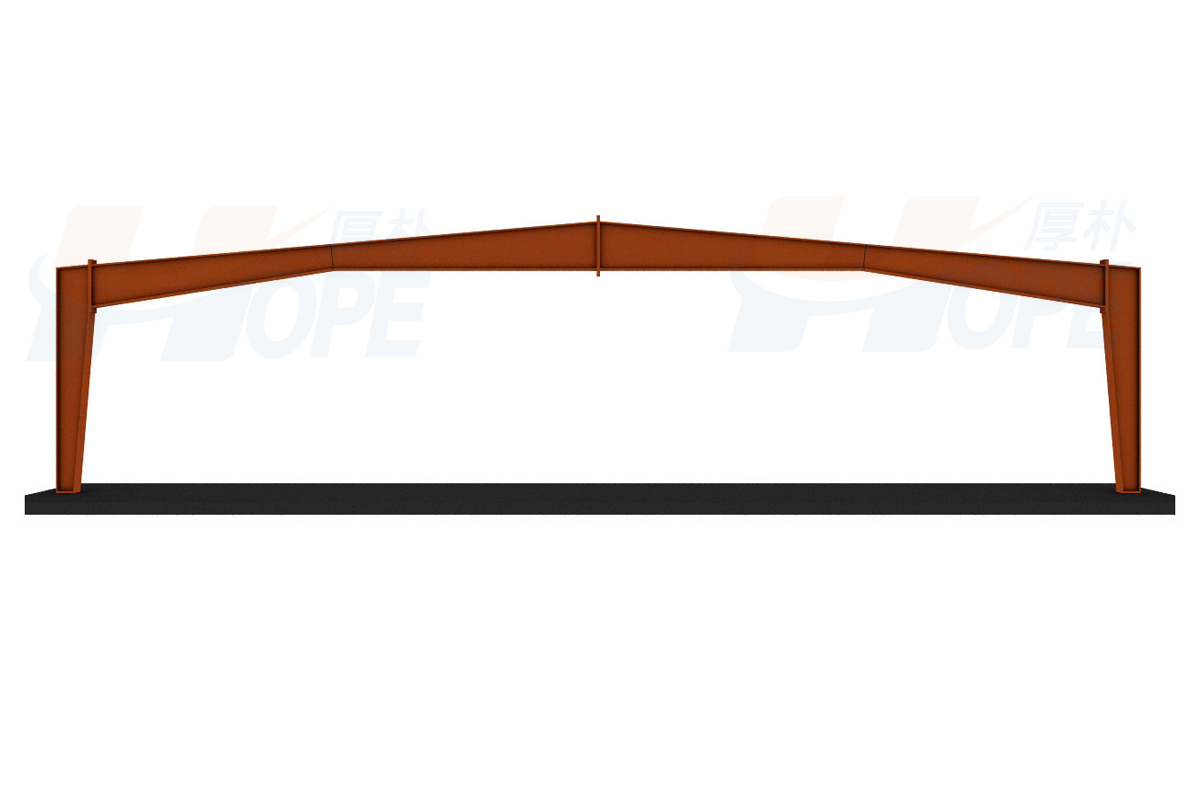

Metal building frames main categories include: CS Clear Span, MS Multi Span, CL Classic, HS High Span, SST Single Slope, SSS Single Slope, LT Lean-To, and Custom Designs.

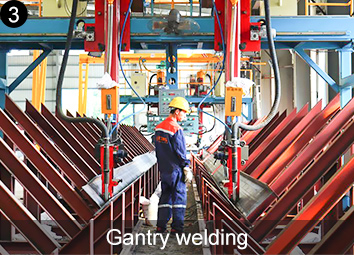

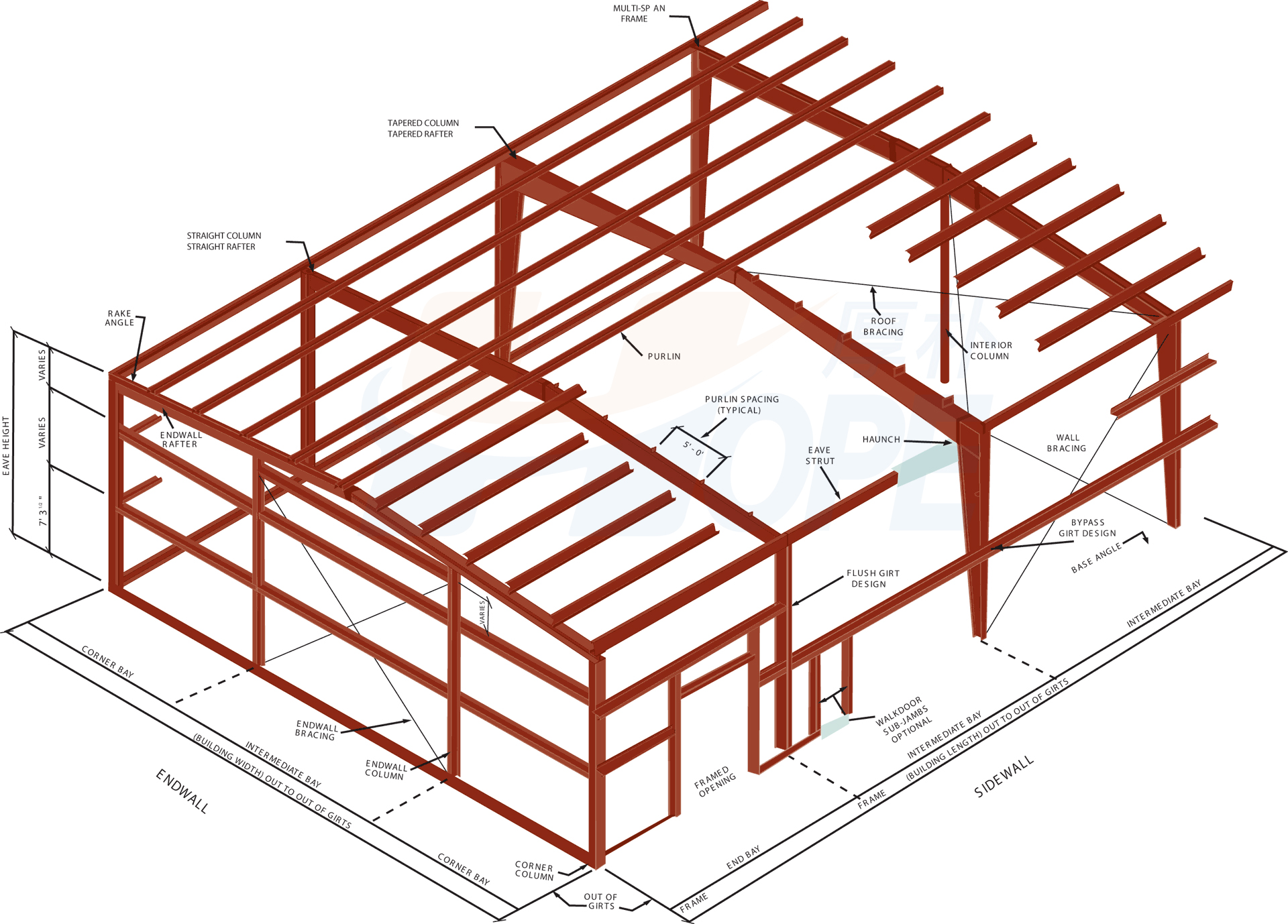

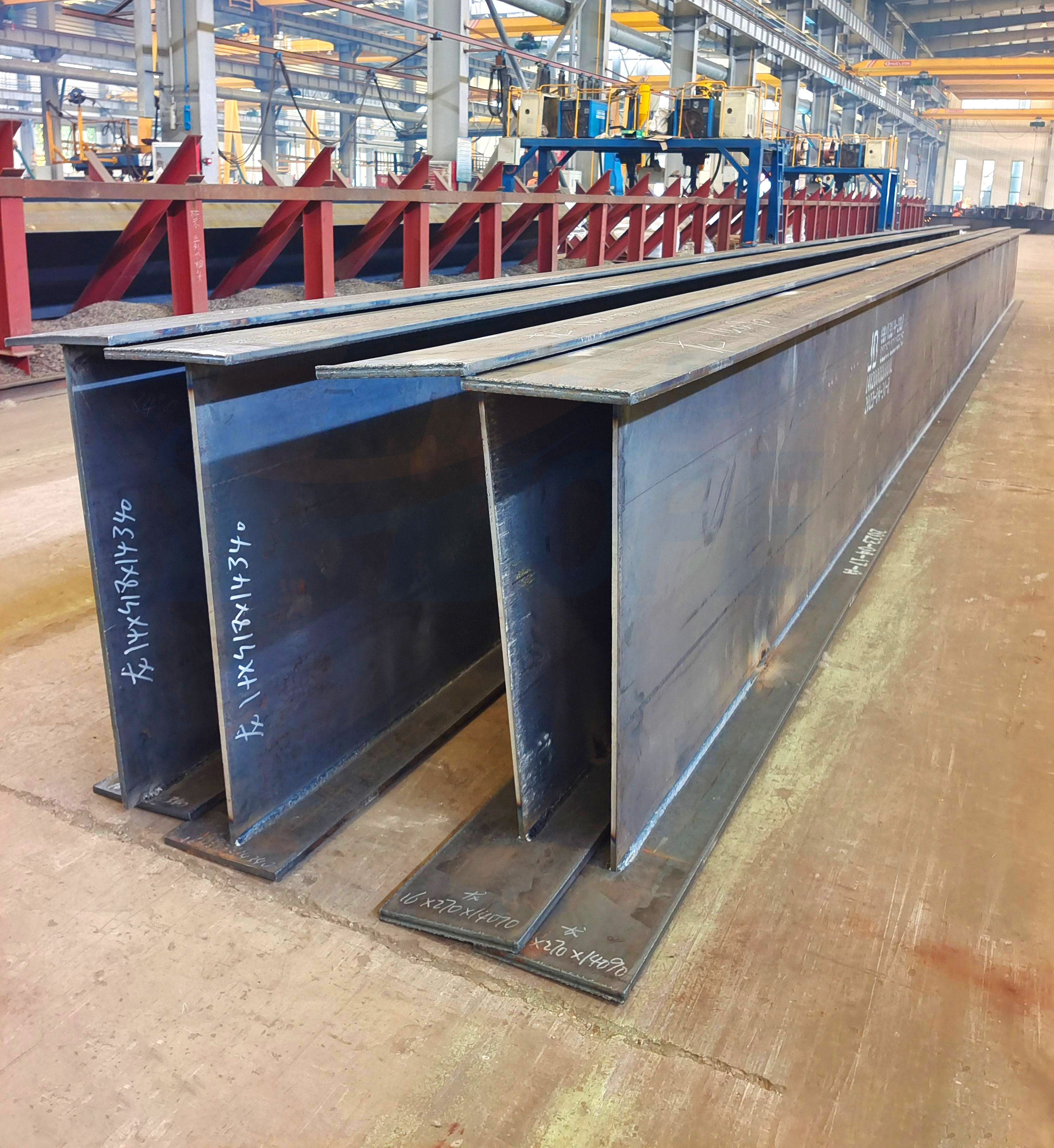

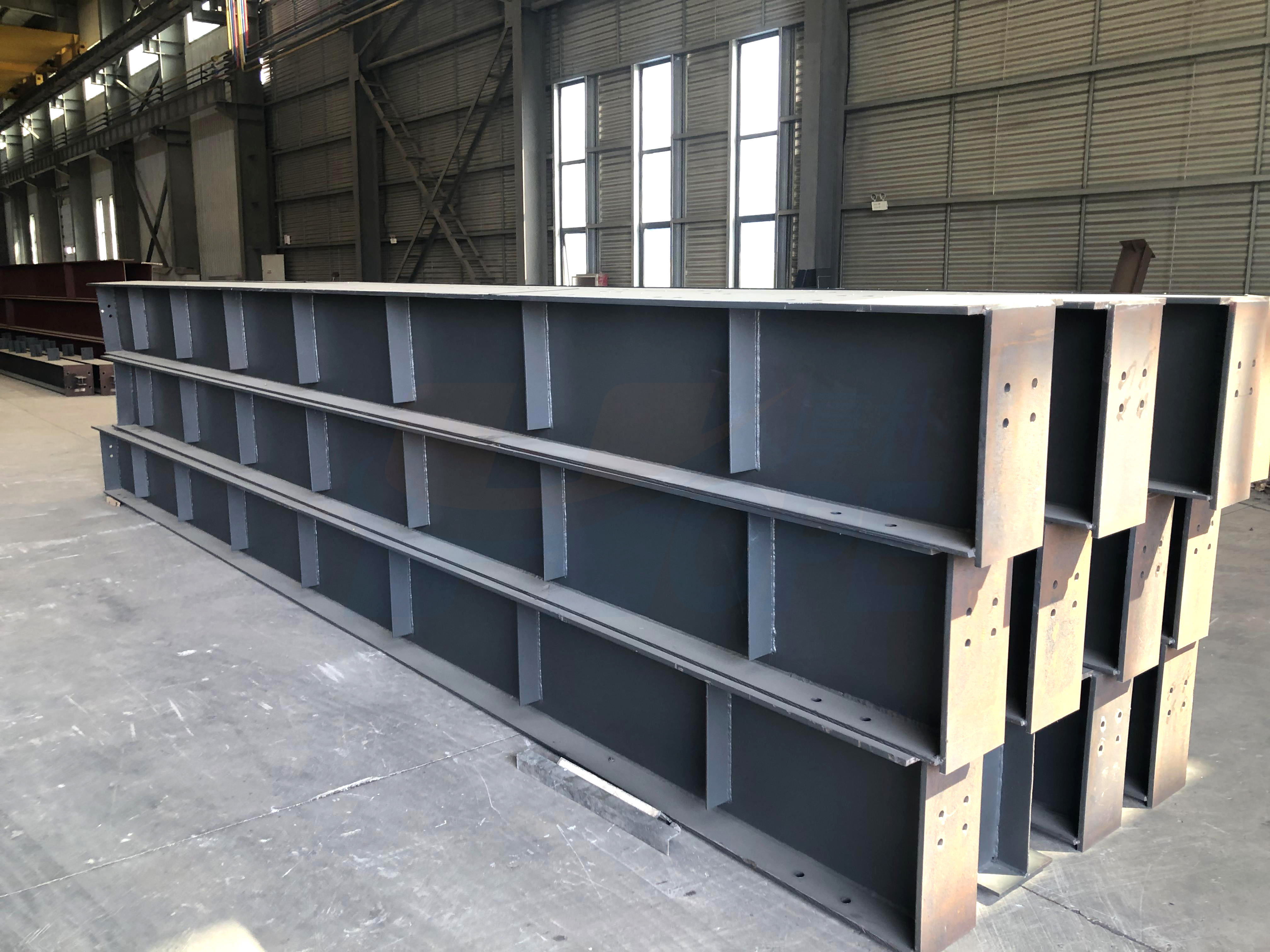

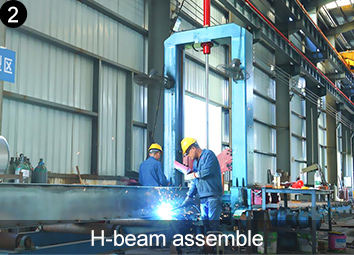

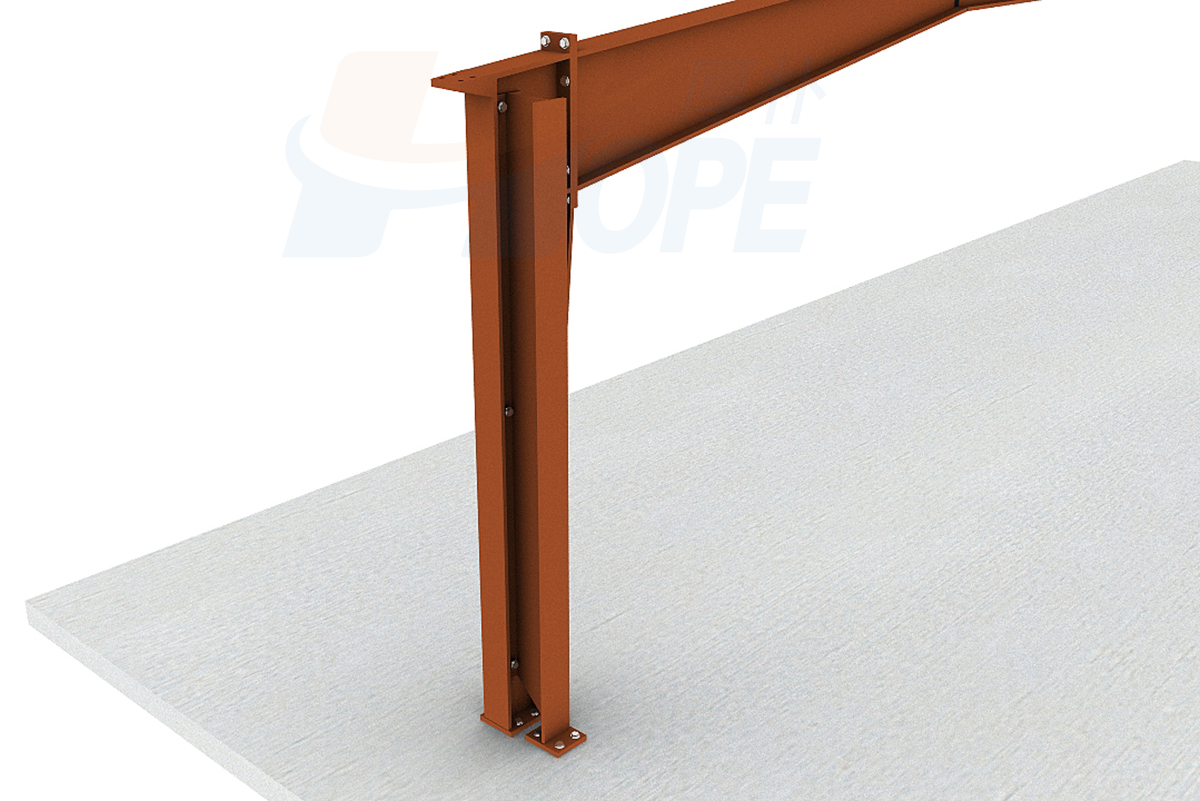

The primary framing acts as a single unit after assembly that supports the load of the finished structure while transferring the weight to the foundation. Features include solid built-up I-beam main frame construction, high strength plate steel, and submerged arc/welded frames.
| Category | Items | Specification Details |
|---|---|---|

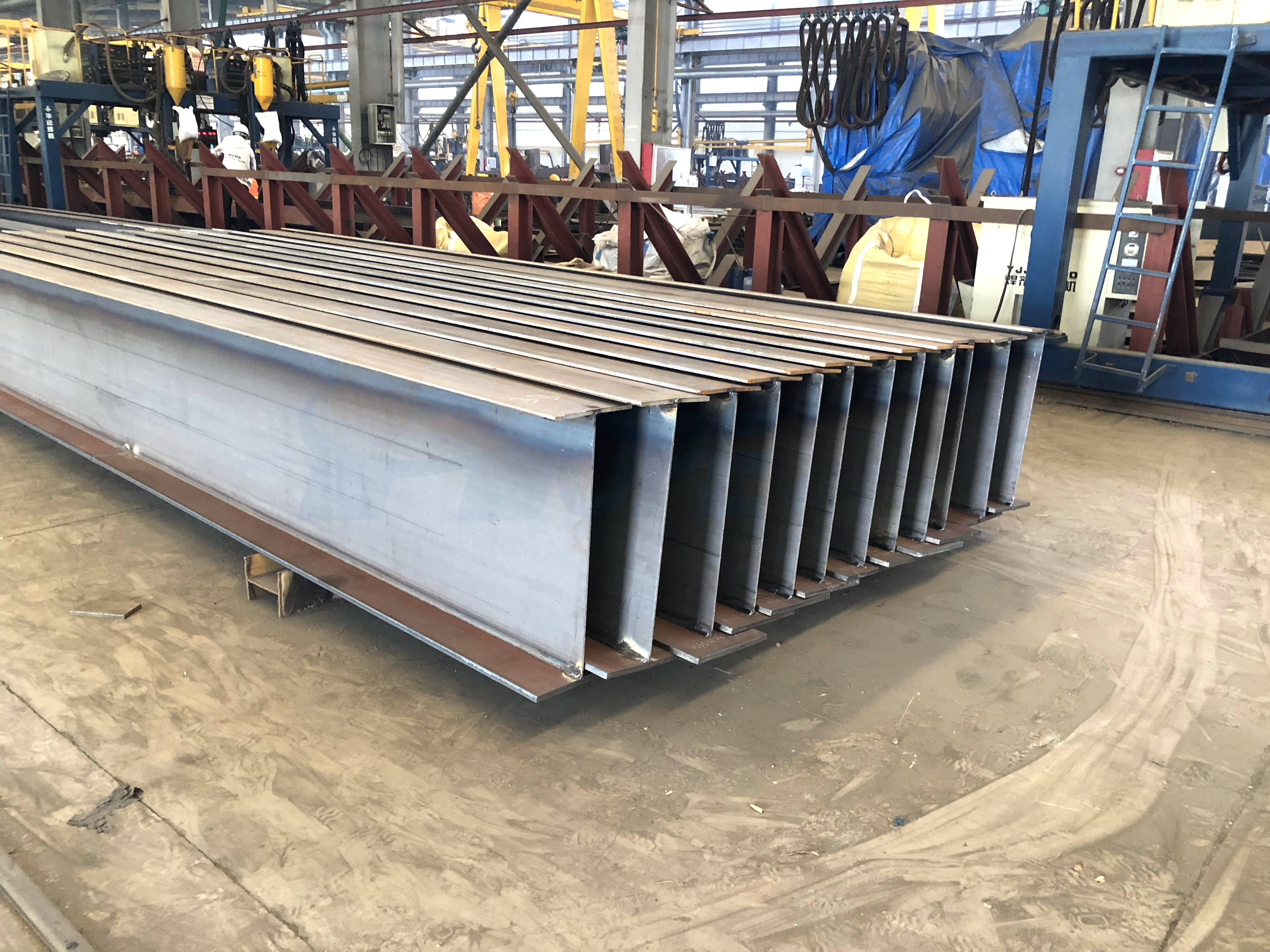

| Main Steel Frame | Column | Q235, Q355 Welded H Section Steel |
| Beam | Q235, Q355 Welded H Section Steel | |

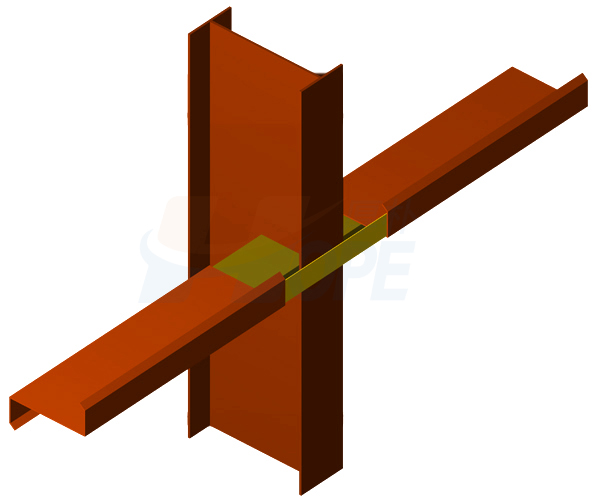

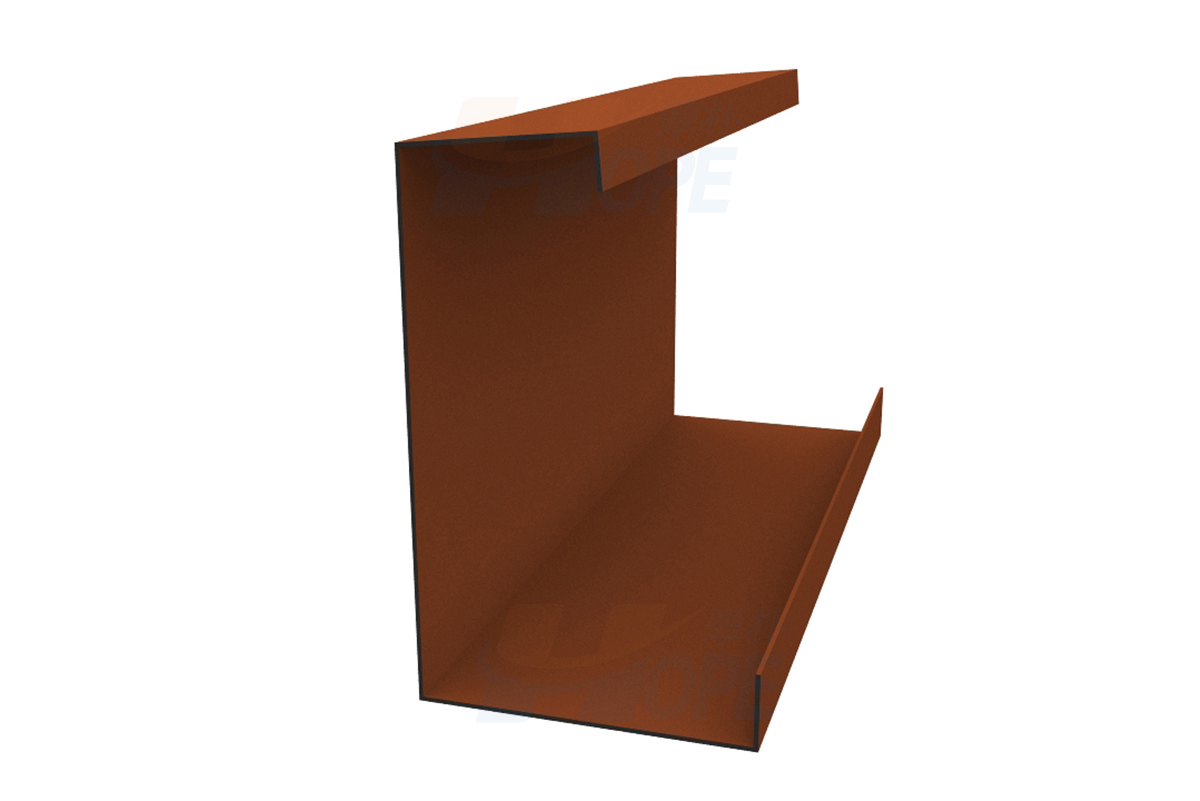

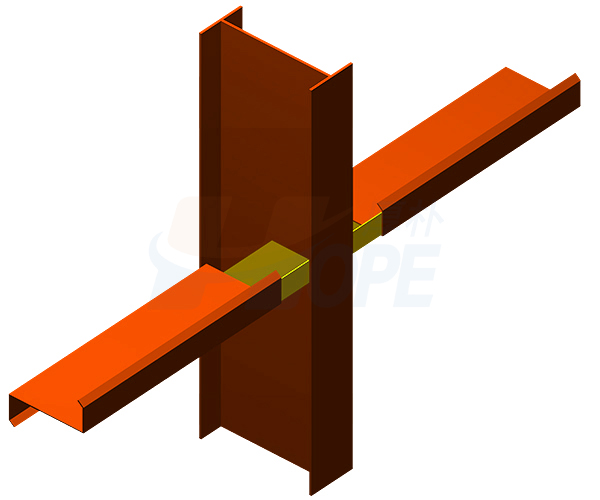

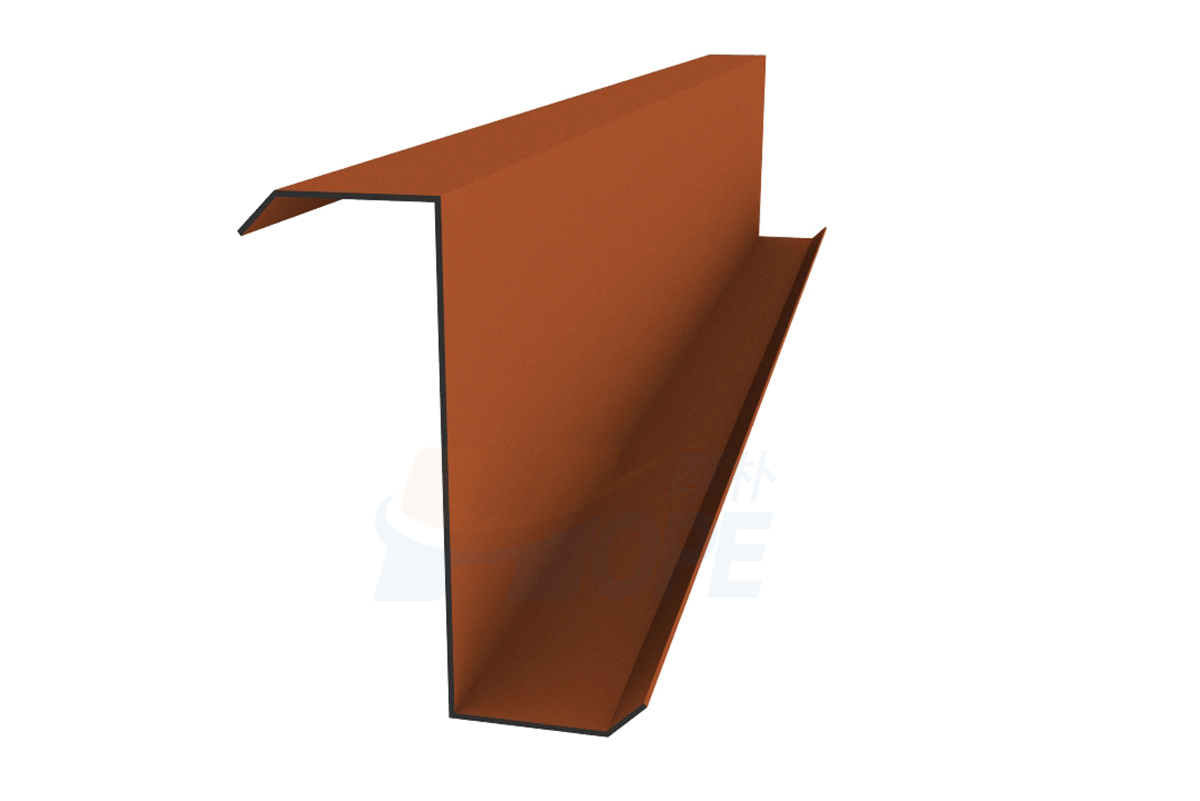

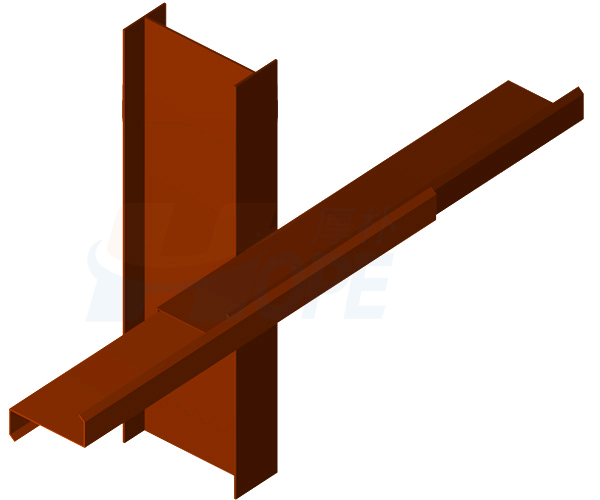

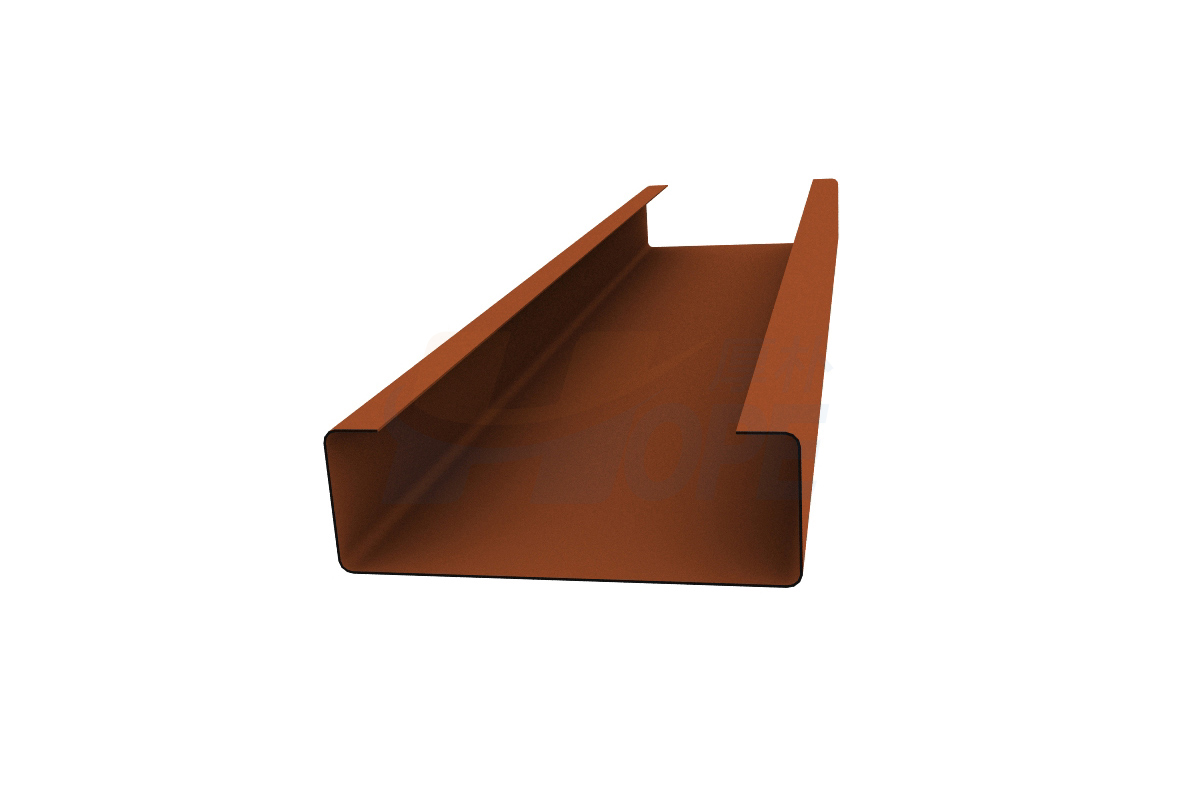

| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |

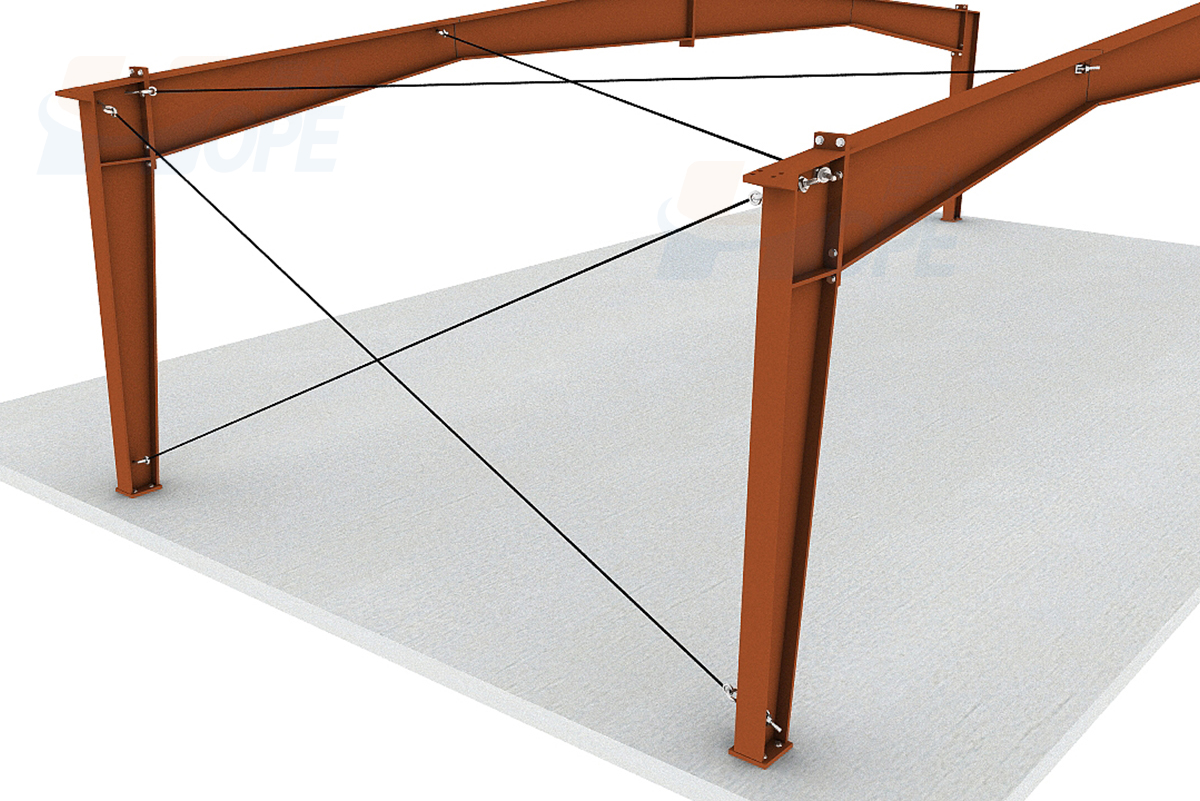

| Brace | Q235 Round Bar | |
| Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS / Glass Fiber / Rock Wool / PU Sandwich Panel / Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Resistance Grade | Wind/Earthquake | 12 Grade Wind / 8 Grade Earthquake |
(1) Lifting must be managed by responsible personnel using proper fixtures to prevent vibration, impact, or deformation.
(2) Loading is supervised to check car numbers and packing, ensuring secure binding to prevent loss.
(3) Stability is maintained during transport with trained pilots for oversized objects.
(4) Careful handling by personnel familiar with component weights and sizes to prevent accidents.
