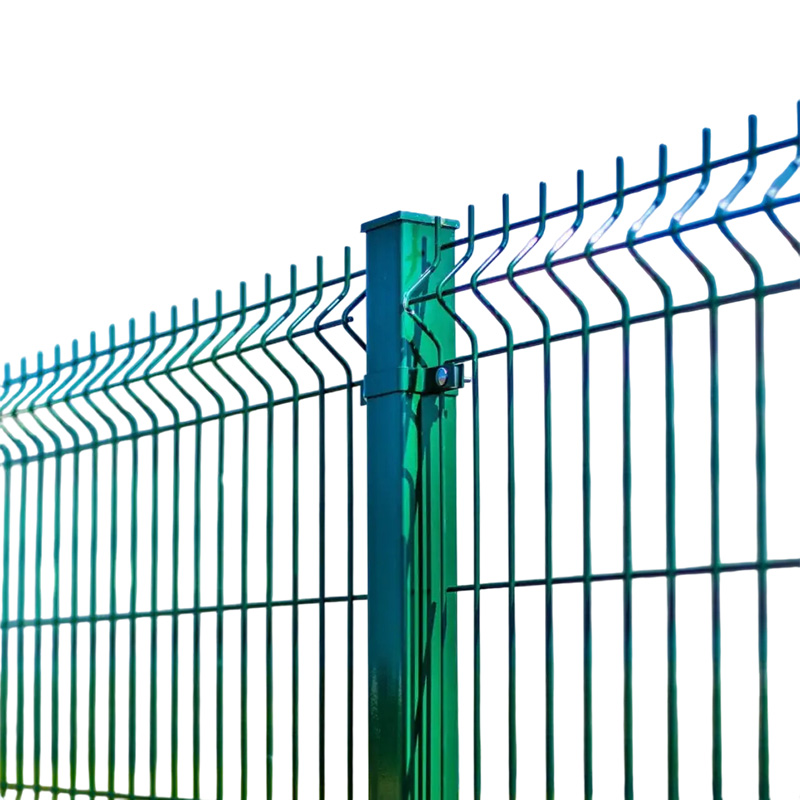

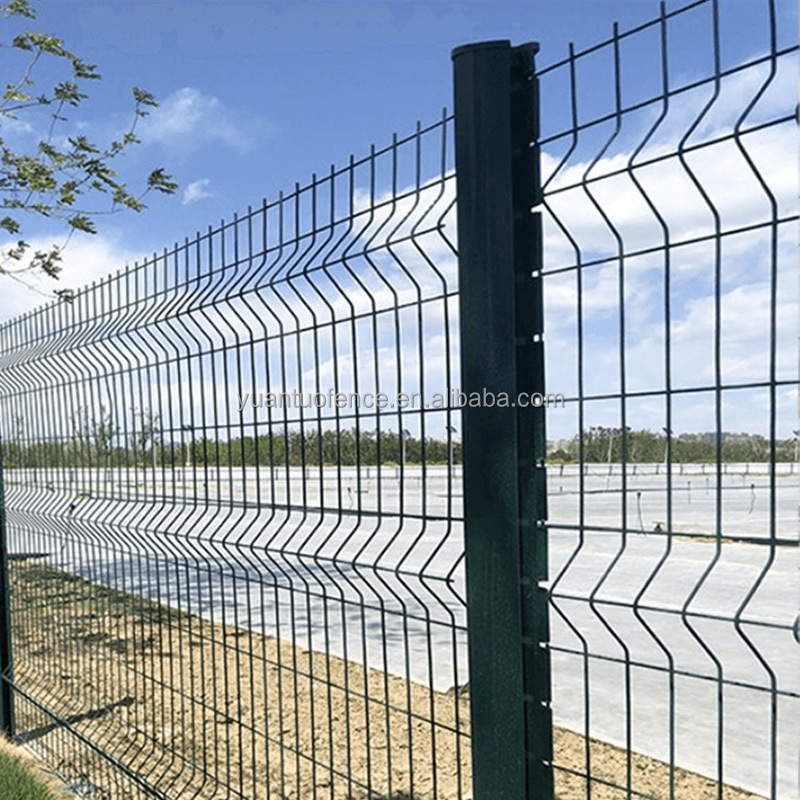

Long Life 3D Security Fencing Premium Powder Coated Resistant Eco-Friendly Rustproof Metal Mesh Fence Highway Road With Clamp

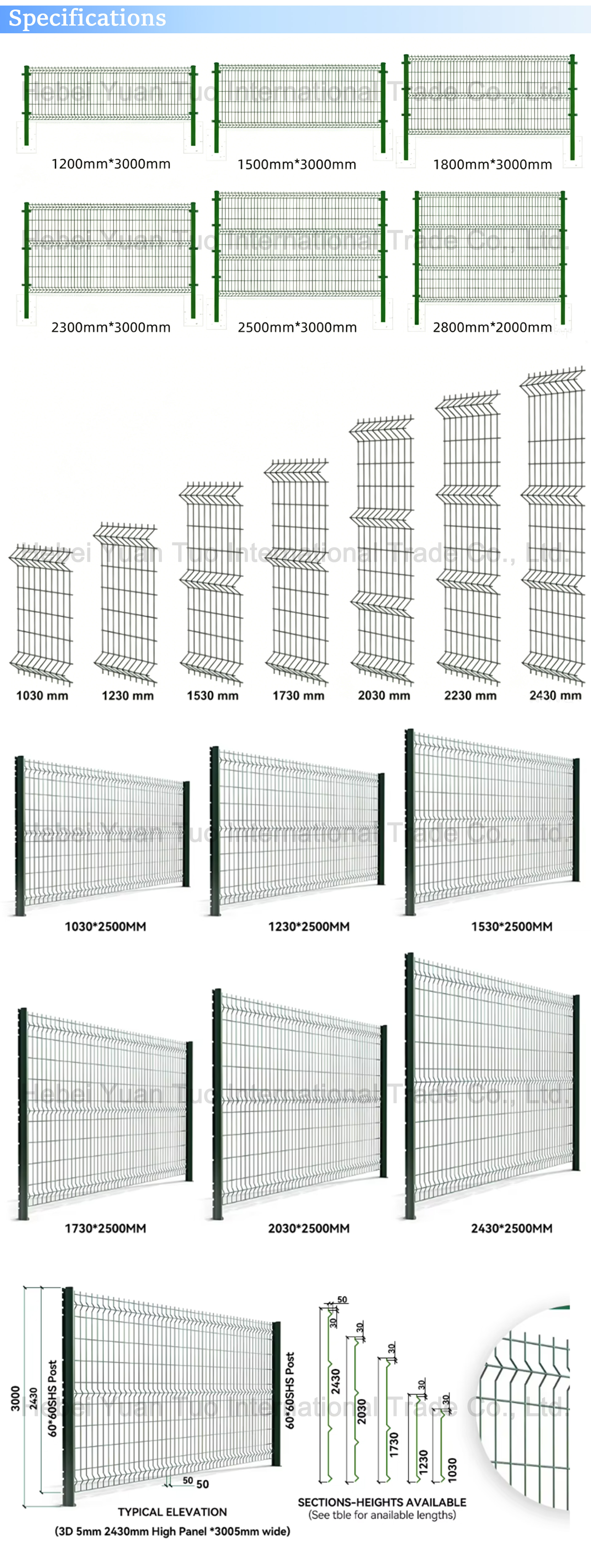

Product Specifications

Item	Specification
Panel Height	0.8m to 2.4m (Customizable)
Panel Width	2.0m / 2.5m (Standard)
Horizontal Wire	4.0 / 5.0 / 6.0mm (Twin wire)
Vertical Wire	4.0 / 5.0mm
Mesh Size	50x200, 55x200, 100x200mm
V-bends	2, 3 or 4 (Based on height)
Post Size	60x40, 80x40, 100x50mm Rect. / Ø48, Ø60mm Round
Post Thickness	1.5 / 2.0 / 2.5mm

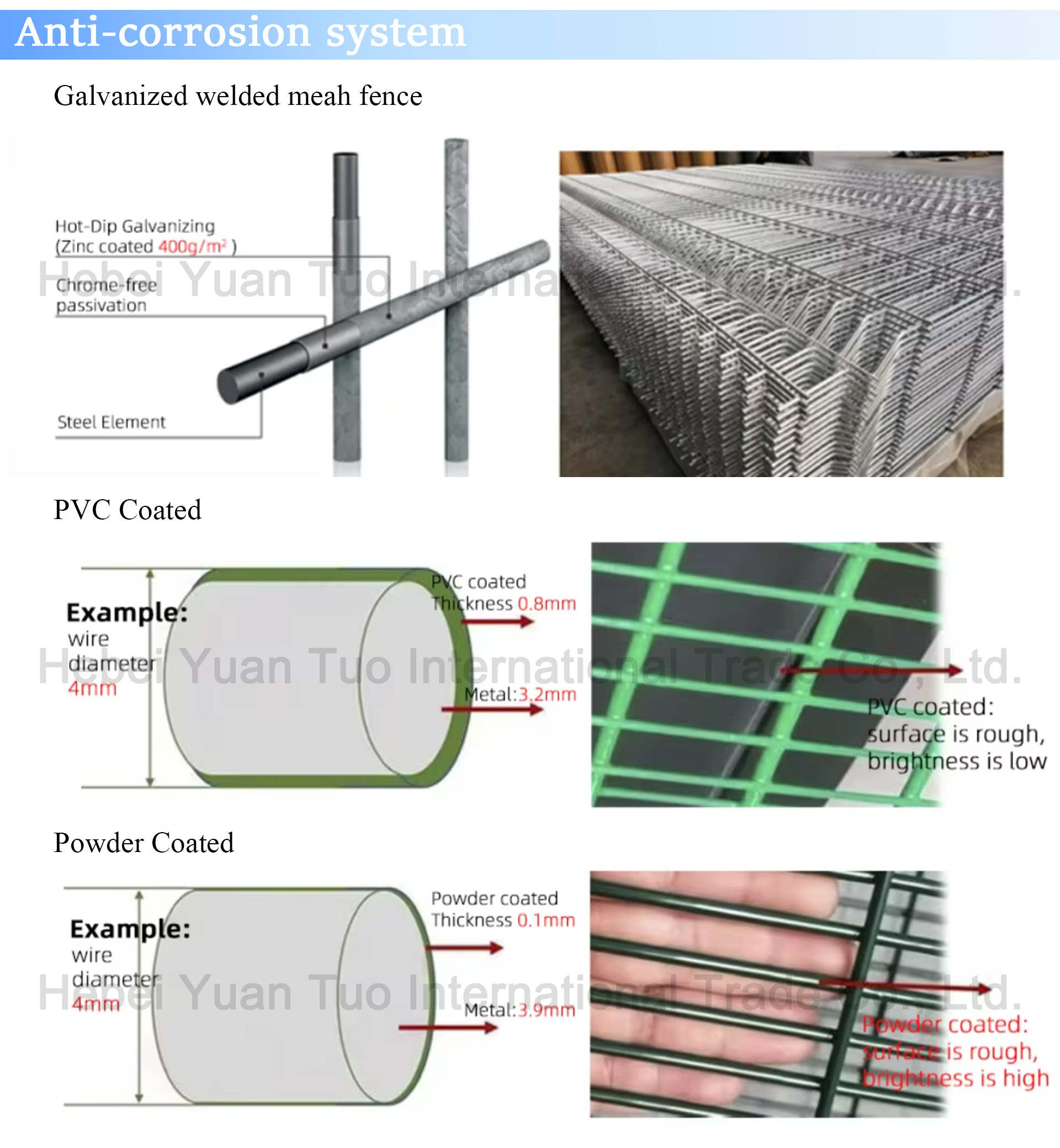

Surface Treatment	Hot-dip galvanized + Powder coating
Color	RAL color optional (e.g. 6005, 7016, 9005)
Packaging	Stackable nesting on pallet, freight saving

All specs customizable. OEM & ODM welcome.

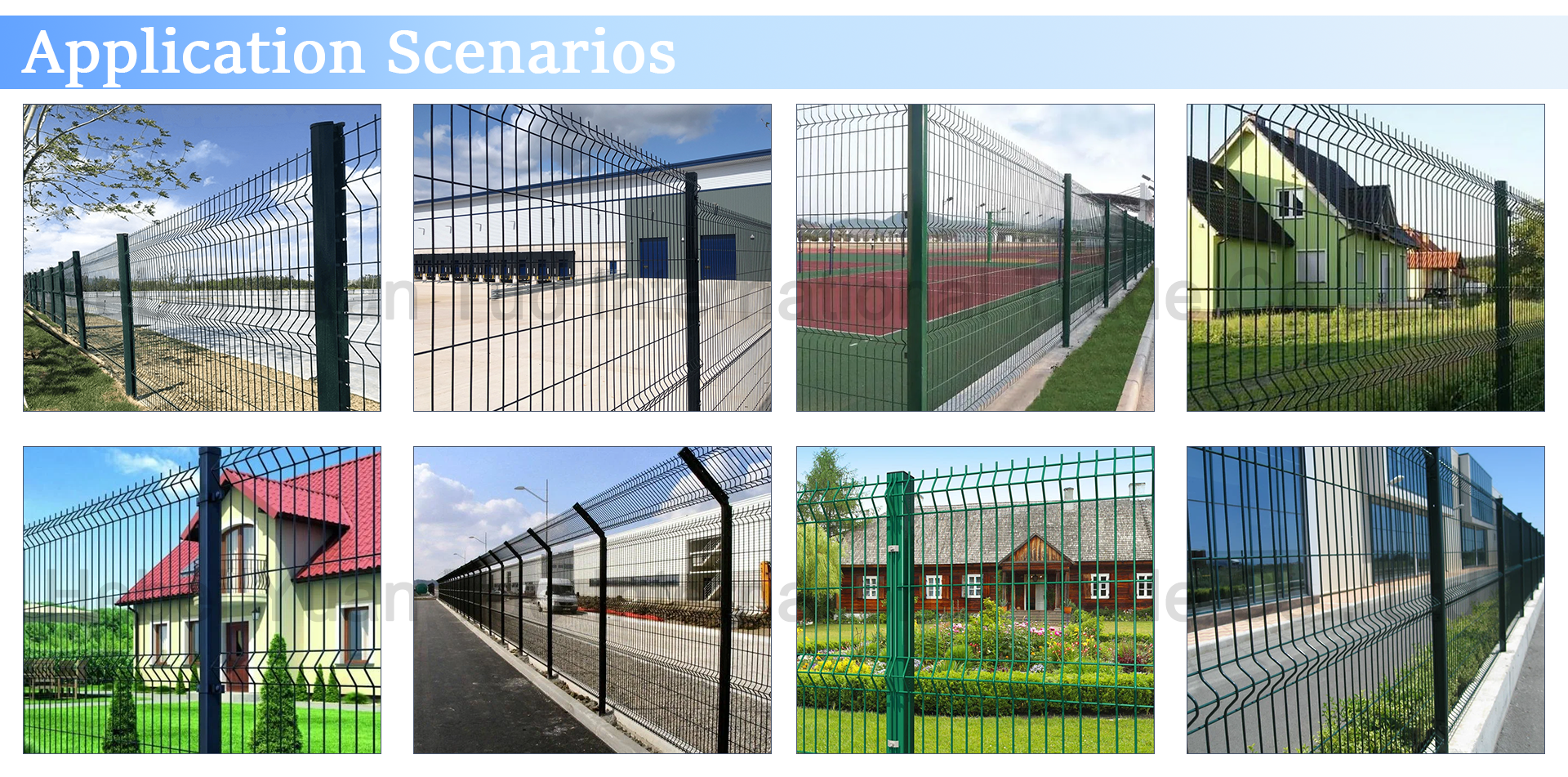

Product Details & Applications

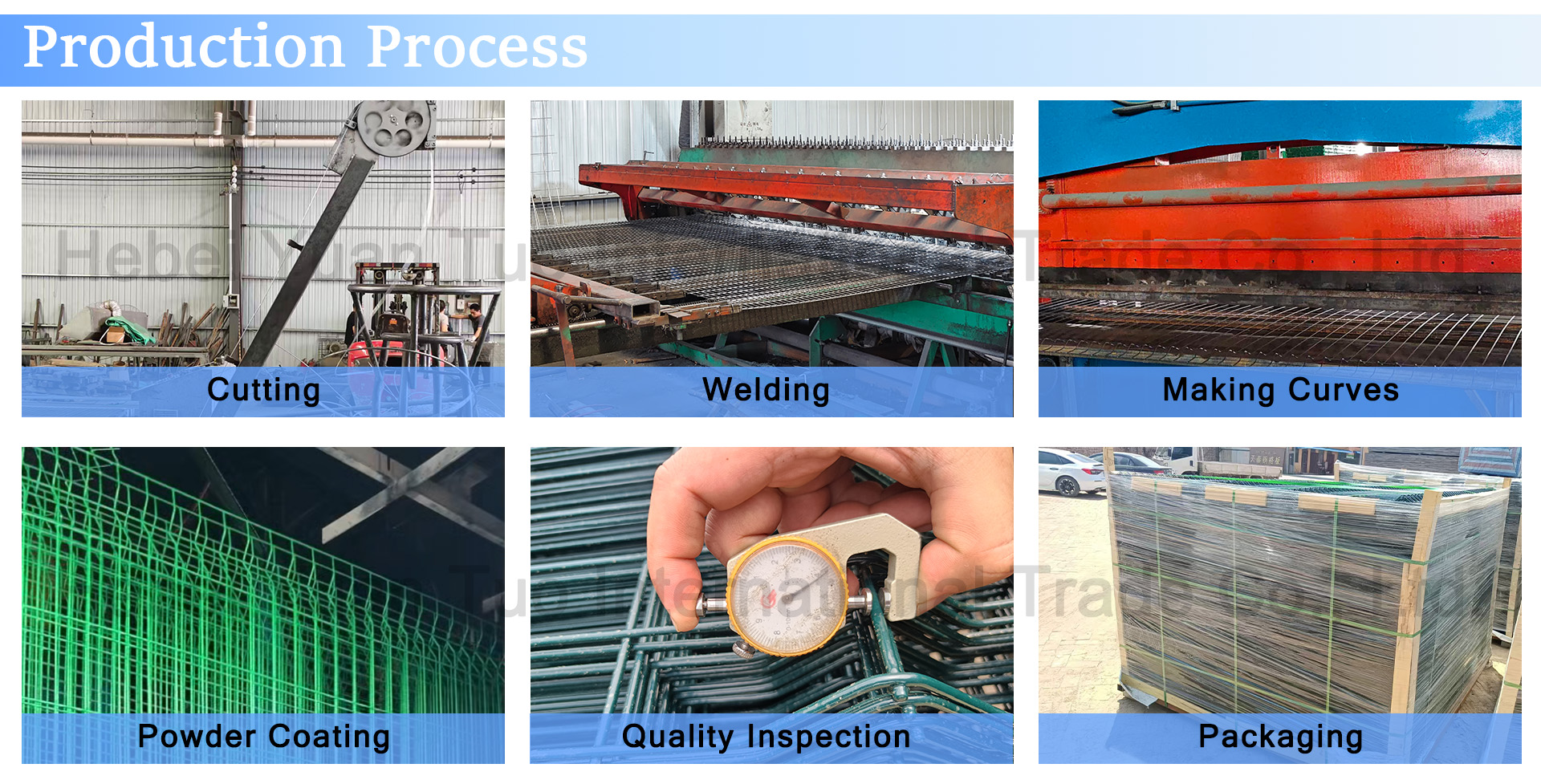

Production & Quality Control

Frequently Asked Questions

What material and surface treatment are used?

Low carbon steel wire. Hot-dip galvanized + polyester powder coating, providing strong anti-rust protection.

Can I customize the panel size and V-bends?

Yes. Height, width, wire diameter, mesh size, and number of V-bends are all fully customizable to meet your project requirements.

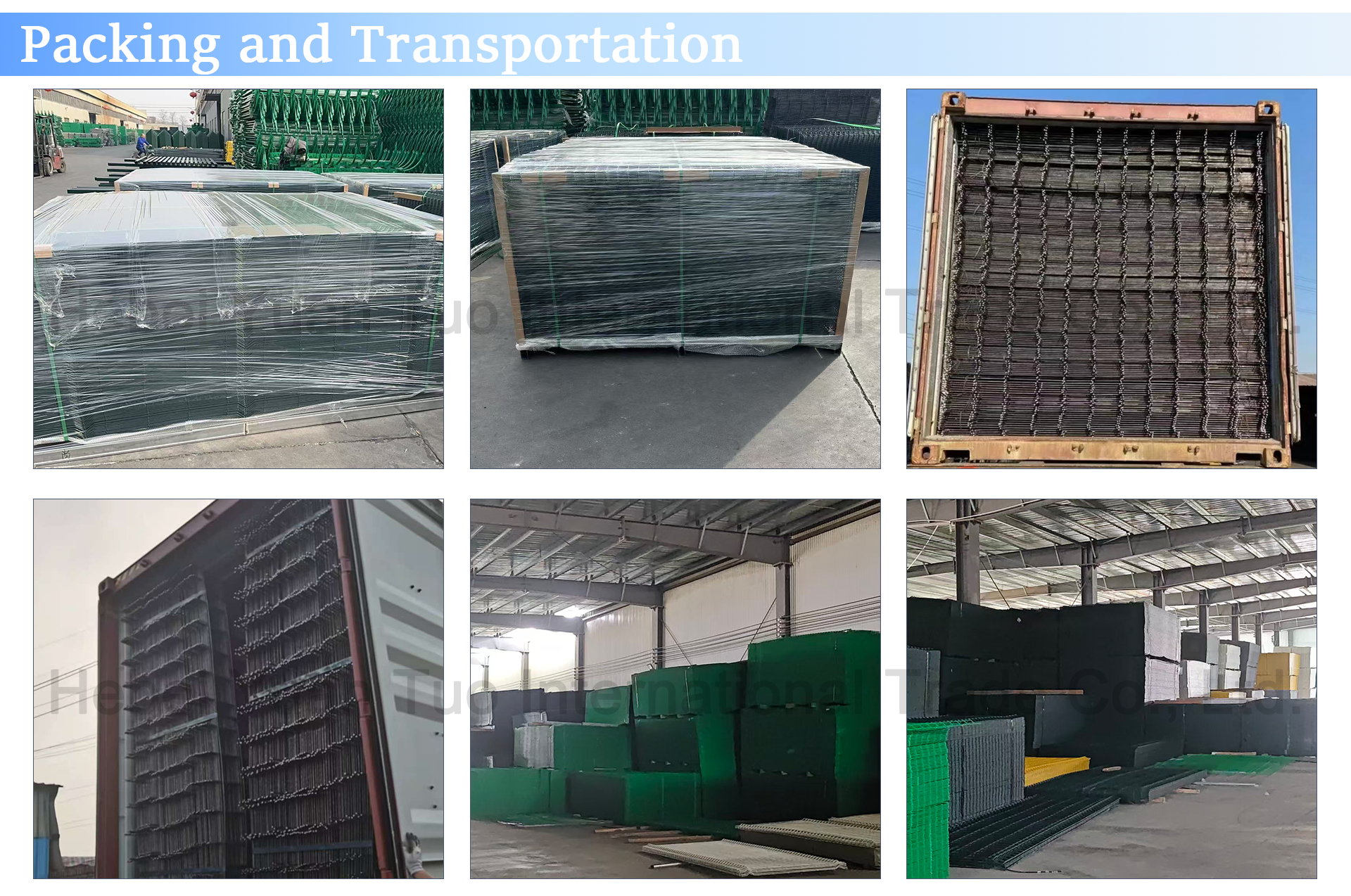

How are the panels packed? Can you save freight?

Panels are stackable on metal pallets. Our nesting design allows for more units to be loaded per container, significantly cutting freight costs.

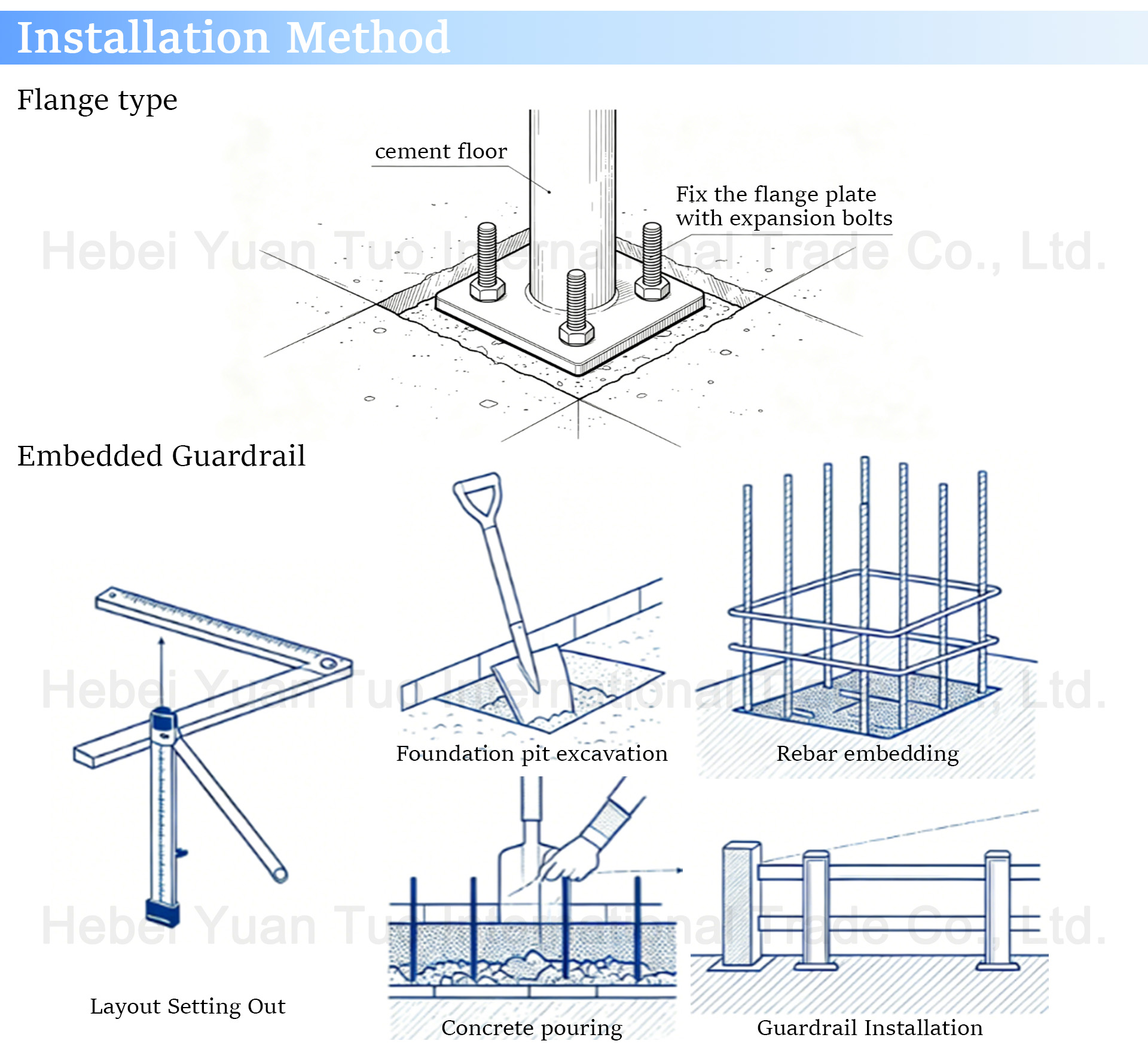

Is the fence easy to install?

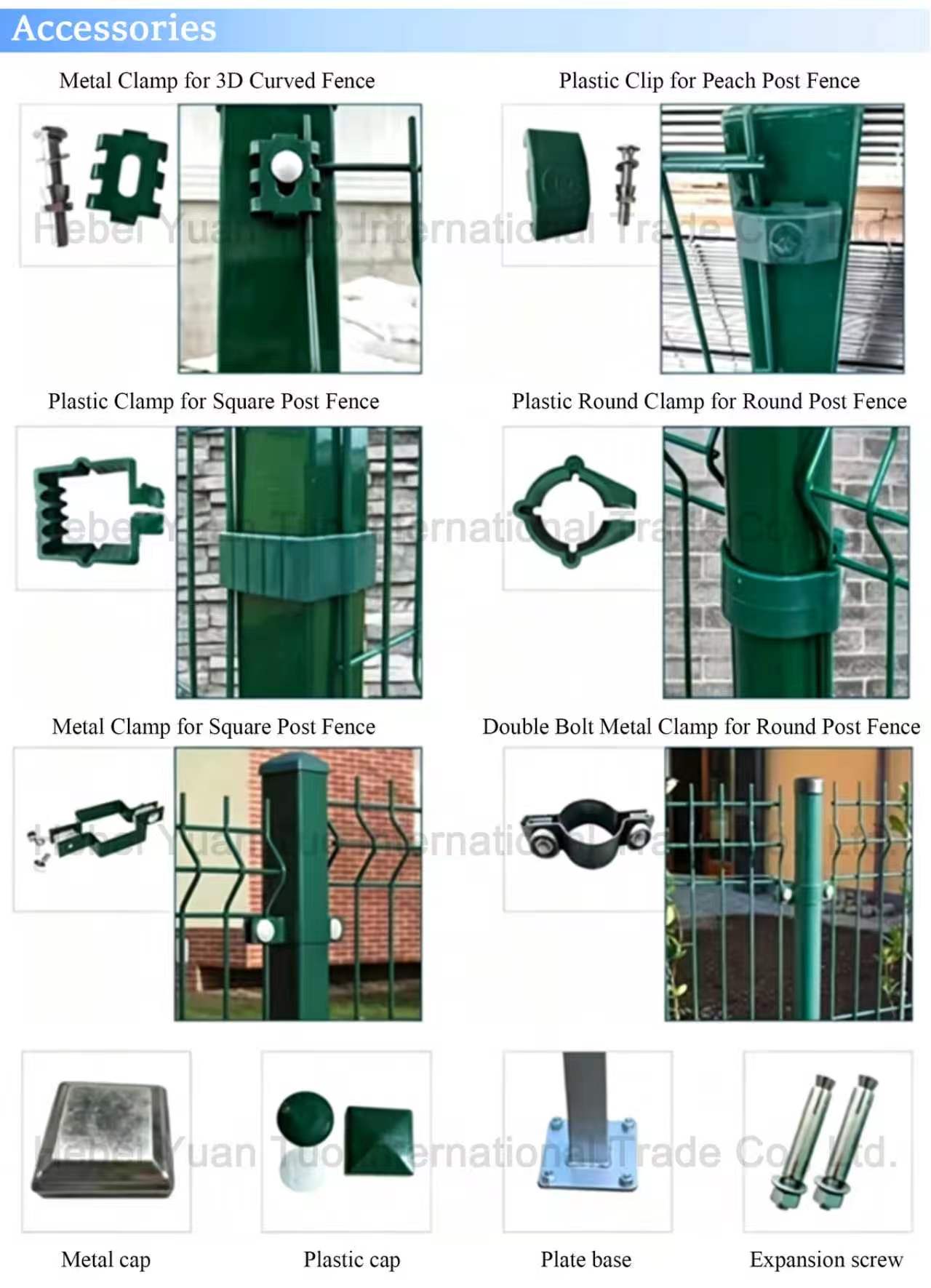

Yes, it is a modular system consisting of panels, posts, and brackets. No special tools are required, and video guides can be provided.

What colors are available for the coating?

A full RAL color chart is optional. Standard colors include RAL 6005 (Green), 7016 (Grey), and 9005 (Black). Wood grain effects are also available.

What kind of warranty do you provide?

We provide a 10-year anti-rust warranty on our standard galvanized and powder-coated products.
