| No. | Components | Detailed Specifications |
|---|---|---|

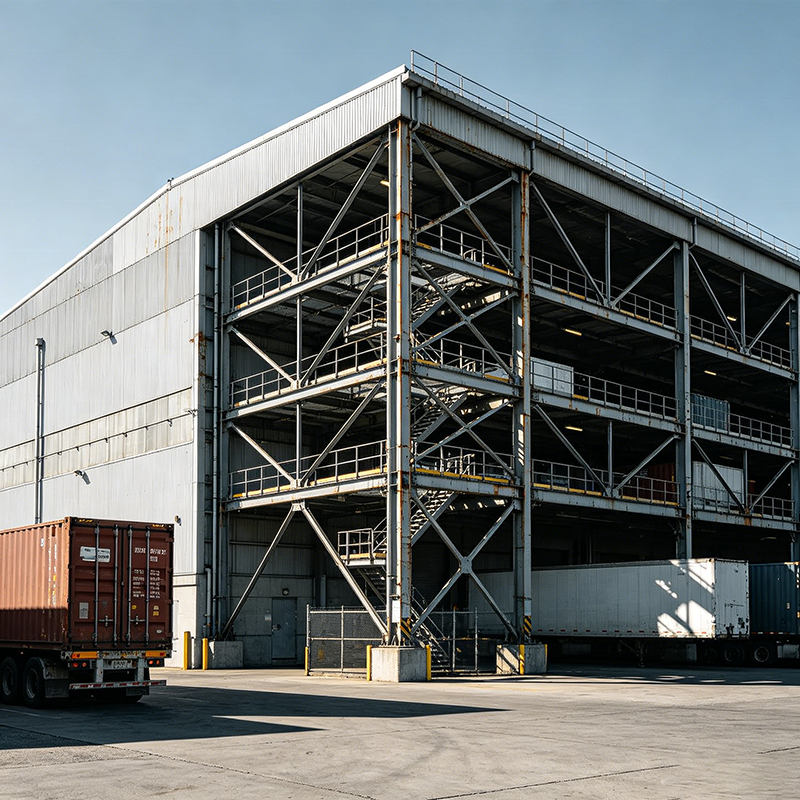

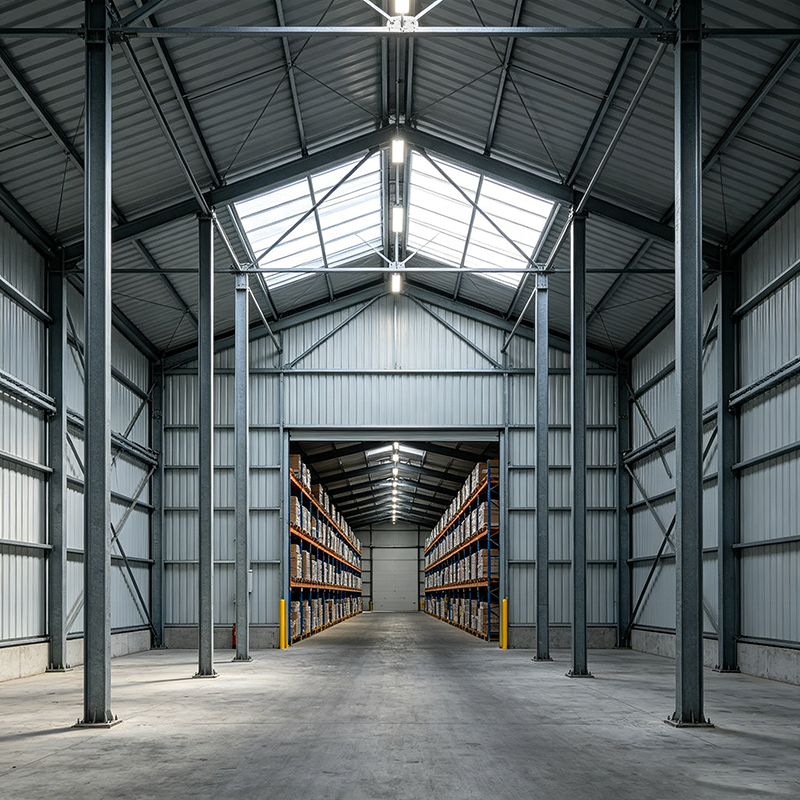

| 1 | Steel Structure Parts (Q235B / Q345B) |
(1) Steel Column: Welded H Section Steel (2) Steel Beam: Welded H Section Steel (3) Wind Column: Welded H Section Steel (4) Connected Beam: Circular Tube (5) Roof/Wall Purline: Cold formed galvanized C or Z Section Steel |
| 2 | Panel Materials |
External/Internal Walls & Roofing Options: - 50mm, 75mm, or 100mm EPS Sandwich Panel - 50mm, 75mm, or 100mm Rock Wool Sandwich Panel - 0.476mm/0.5mm Corrugated Galvanized Steel Sheet (Various Colors) Skylight: 820# Glass Fiber Reinforced Plastics (FRP) |
| 3 | Doors & Windows |
(1) External: Orbit Sliding Door (double open) or Power-operated Roller Door (2) Internal: EPS Sandwich panel with aluminum alloy frame (3) Window: UPVC or Aluminum alloy frame with glass |
| 4 | Drainage System |
(1) Water Channel: 2mm thickness galvanized steel channel (2) Down Spout: 110 PVC Down spout with accessories |
| 5 | Connecting Pieces |
- Purline Draw Bar: Φ 12 - Horizontal/Column Bracing: Φ 24 Circular Tube - Knee-Bracing: L Steel - Purline Drive Pipe: Φ 32*2 |
Available Accessories: We provide a comprehensive range of accessories including steel brackets, bolts, self-drilling screws, rivets, inner/outer cullies, rainspouts, trimming sheets, and glass cement to meet your exact project requirements.
