Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

1 / 5

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

Send Inquiry

Product Description

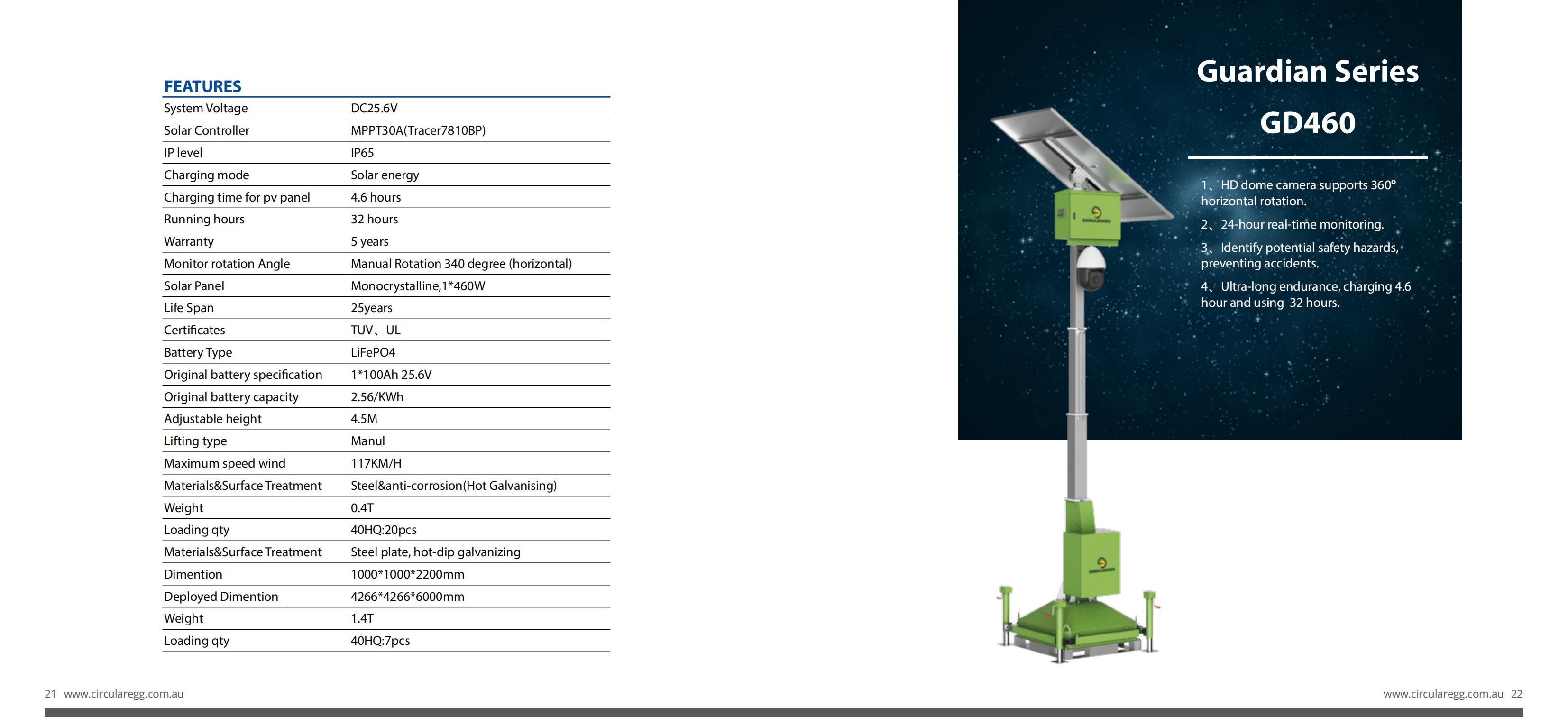

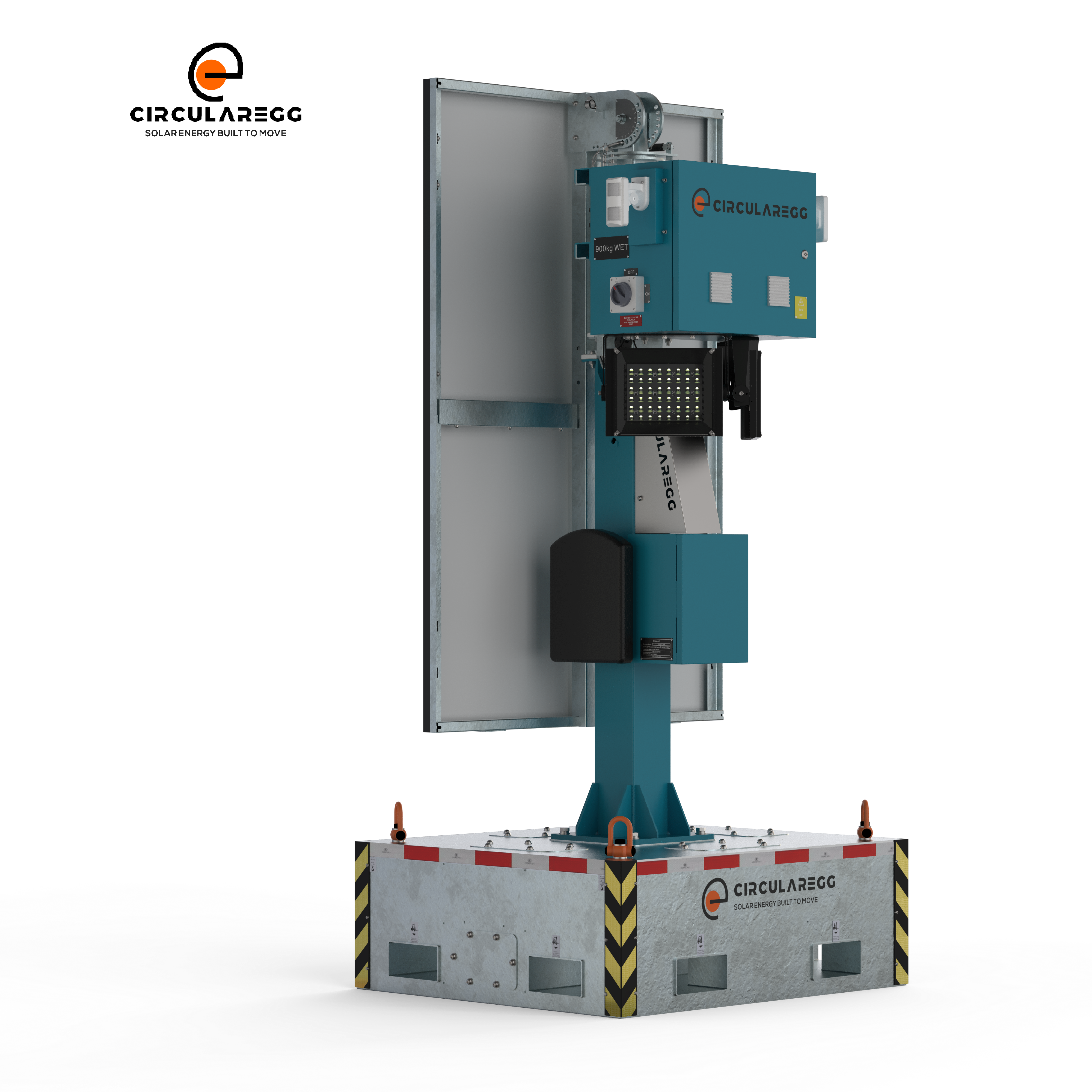

Solar Lighting Camera Illumination Tower CCTV System

Key Features

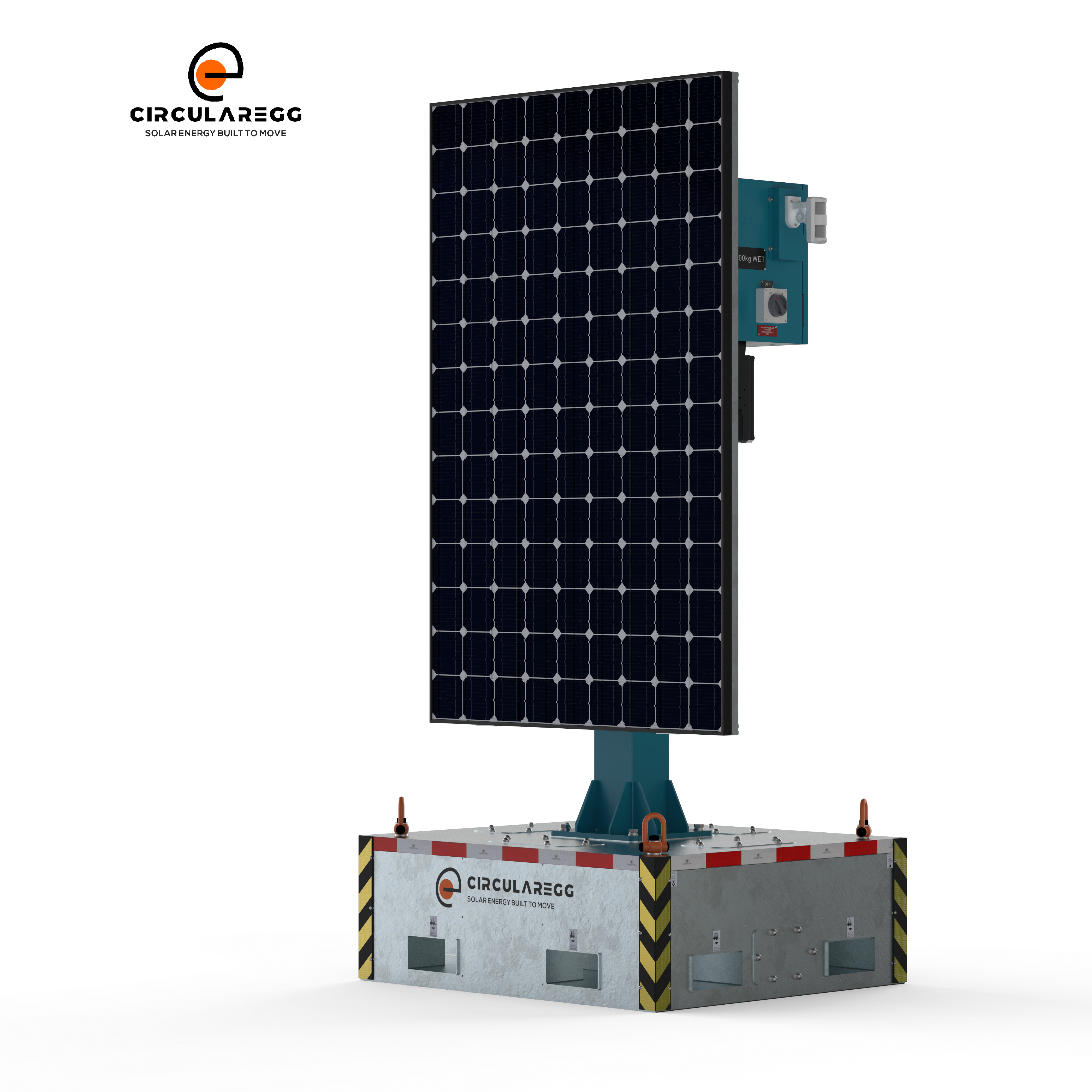

Solar Panel

1*230W Mono Solar Panel with 0°-90° tilt angle and 340° rotation.

PV Controller

High efficiency MPPT 30A controller system.

LiFePO4 Battery

1*100Ah 25.6V (2.56 KWh) capacity with 25.6V system voltage.

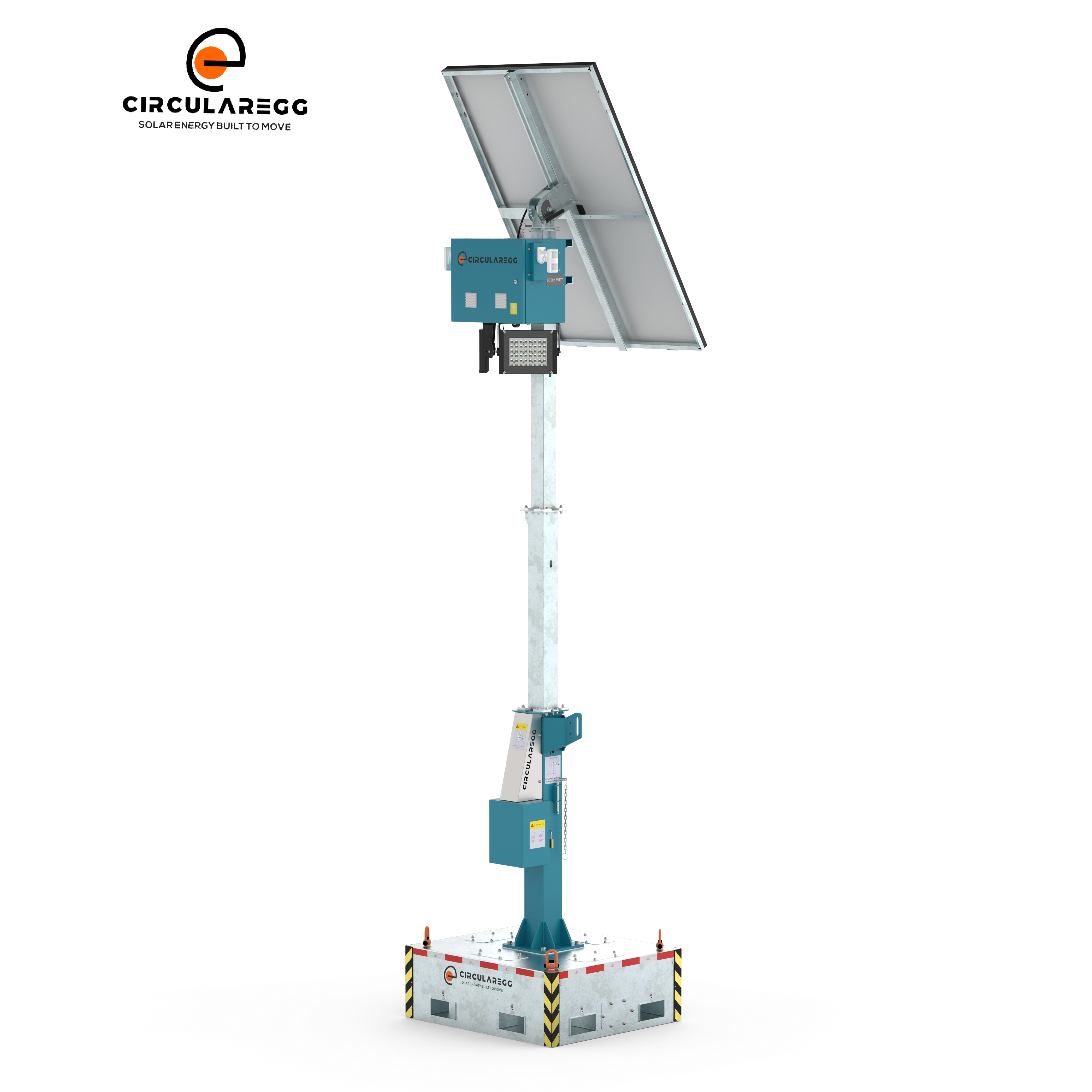

Durable Mast

4.5M hot-galvanized anti-corrosion steel mast, manual winch lifting, windproof up to 117 KM/H.

Performance Profile

PV Charging Time: 4.6 Hours | Continuous Running Time: 32 Hours.

Dimensions & Load

915*915*2410mm (Deployed: 2090*2090*5140mm). Weight: 800 KGS. Loading Qty (40HQ): 20pcs.

Technical Specifications

Parameter	Specification details
Output Voltage (V)	110/240 V
Frequency	50/60 HZ
Battery Capacity	19 KWH / 28 KWH / 43 KWH
Solar Panel Type	Monocrystalline Silicon
Solar Panel Wattage	4550 W / 6550 W / 8*550 W
PV Controller	MPPT 60A (95% efficiency) / MPPT 80A (95% efficiency)
Battery Type	Lead-acid
Battery Pack	8200 AH, DC 12V / 12200 AH, DC 12 V
Communication Interface	RS-485
Output Port	110A AC outlet + 24A AC outlets + 1*5V USB
Axle Qty	Single
Tyre and Rim	15 Inch
Support Leg	4pcs, Manual

Product Gallery

Frequently Asked Questions

What is the typical charging and running time for the solar CCTV tower?

Under standard sunlight conditions, the solar panels require approximately 4.6 hours to fully charge. Once fully charged, the system can operate continuously for up to 32 hours.

Can the solar panel angle be adjusted?

Yes, the monocrystalline solar panel offers a flexible tilt range from 0° to 90° and a wide rotation angle of up to 340°, allowing you to optimize solar harvesting efficiency depending on your location and seasonality.

How wind-resistant is the telescoping mast?

The tower is constructed with anti-corrosion hot-galvanized steel and is engineered with manual winch lifting systems. It is robustly designed to withstand wind speeds up to 117 KM/H when properly deployed.

What battery options are available for this system?

The standard layout features a 2.56 KWh LiFePO4 battery (100Ah, 25.6V). Additionally, high-capacity Lead-acid battery configurations are available, offering larger battery bank capacities of 19 KWH, 28 KWH, or 43 KWH to suit different energy needs.

What outlets and communication options does the controller offer?

The system features RS-485 communication protocols and provides diverse output ports including one 10A AC outlet, two 4A AC outlets, and a 5V USB port for versatile peripheral device connections.
