Exporting worldwide for more than 15 years, our systems conform to multiple local standards:
| Region / Standard | Compliance & Approvals | Export Destinations Served |
|---|---|---|
| Europe Standard | EN1090 EXC2, CE Approved | Norway, Iceland, France, Spain, Romania, Czech Republic, Croatia... |
| Africa Standard | EN1090, BS5950-2, GB, CE, BV, SGS Approved | Mauritania, Senegal, Côte d'Ivoire, Ghana, Nigeria, Cameroon, Congo, Angola, Zambia, South Africa, Malawi... |
| Middle Asia Standard | EN1090, BS5950-2, GB, CE, BV, SGS Approved | Saudi Arabia, Oman, Qatar, Israel, Lebanon, Jordan... |
| Southeast Asia Standard | BS5950-2, GB, BV, SGS Approved | Myanmar, Vietnam, Malaysia, Brunei, Philippines, Cambodia, etc. |
| Australia Standard | AS-4100-1998, SGS Approved | Melbourne, Sydney, Adelaide, Queensland, New Zealand |
| America Standard | AISC 360-16, EN1090, BS5950-2, GB, BV, SGS Approved | United States, Mexico, Dominica, Paraguay, Colombia, Chile, Brazil, Argentina... |
| Specification | Details / Available Configurations |
|---|---|

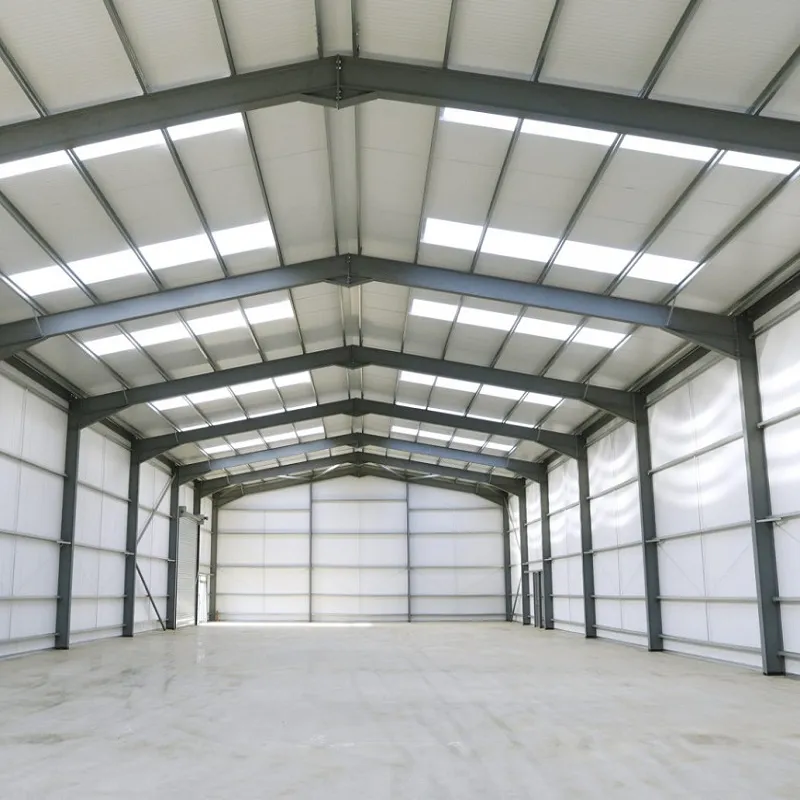

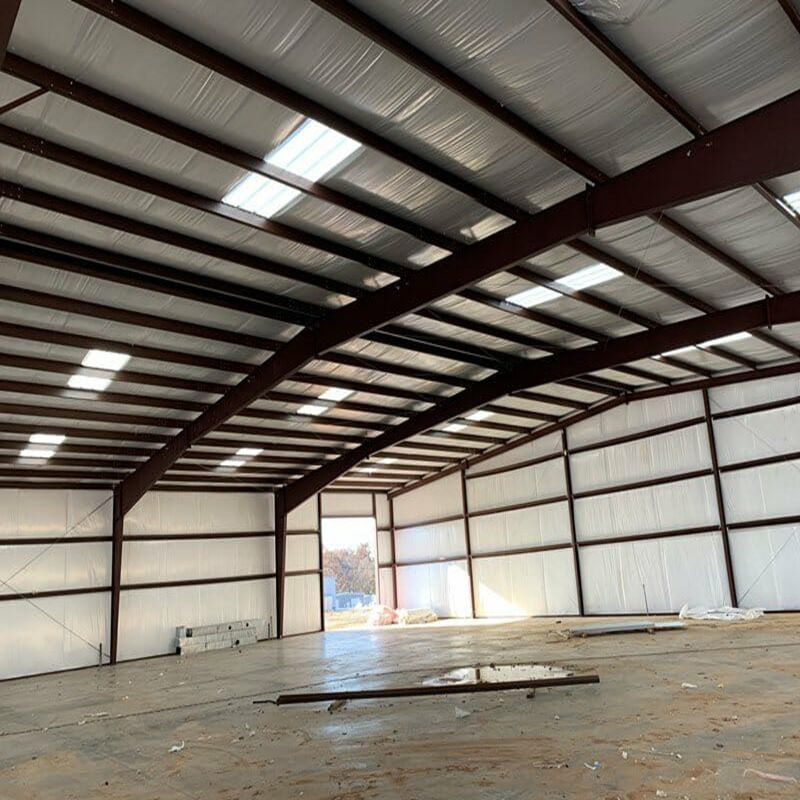

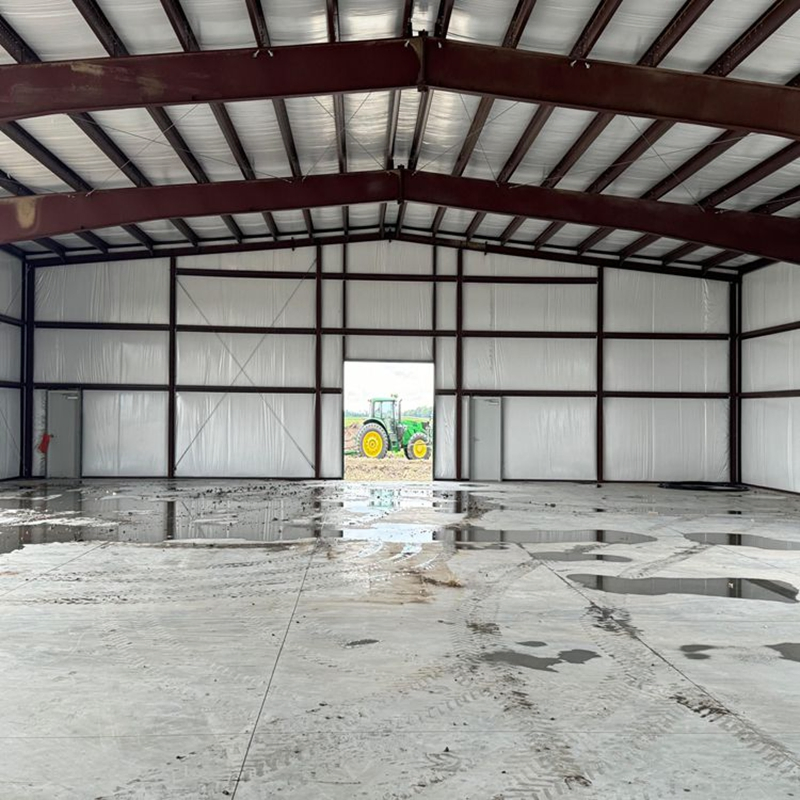

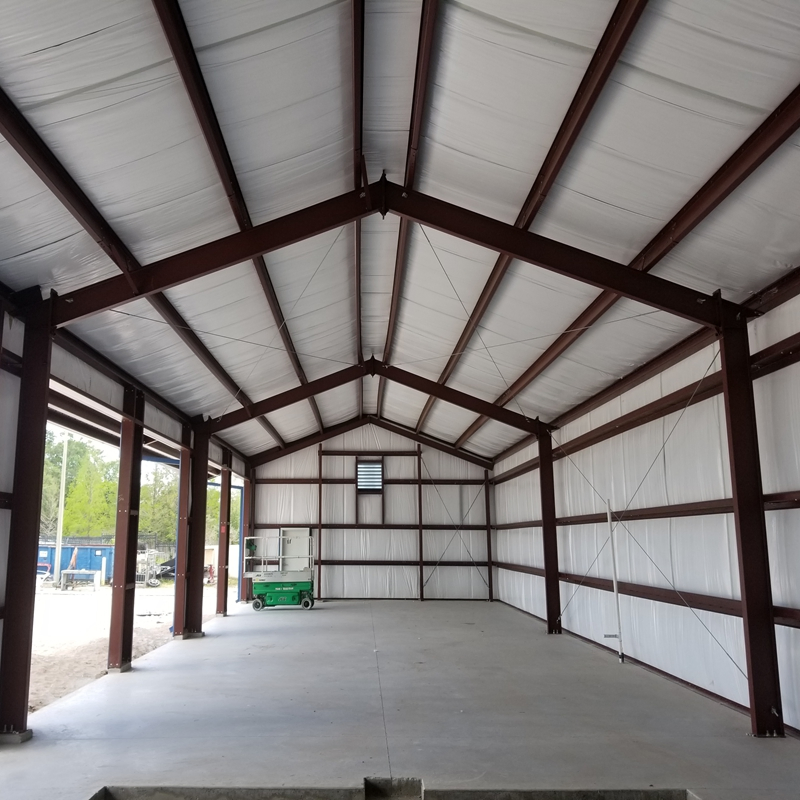

| Applications | Steel warehouses, workshops, hangars, sports halls, shopping malls, cow barns, chicken houses. |
| Clear Span Width | 6m to 50m without internal support columns. |
| Eave Height | 2m to 20m. |
| Length | Fully customizable to meet client demands. |
| Material Grade | Q345 (S355JR) or Q235 (S235JR) structural carbon steel. |

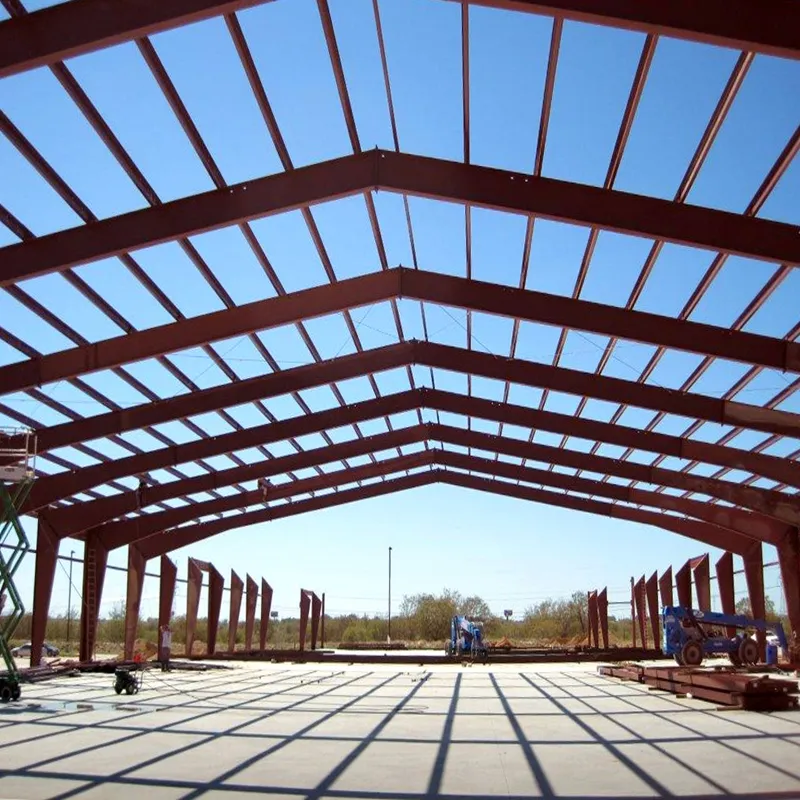

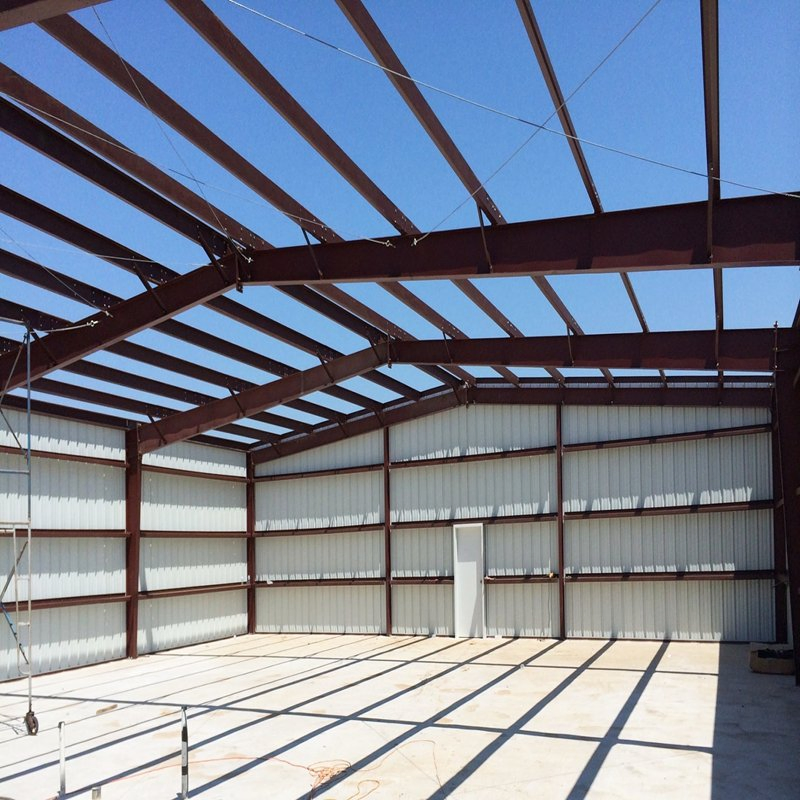

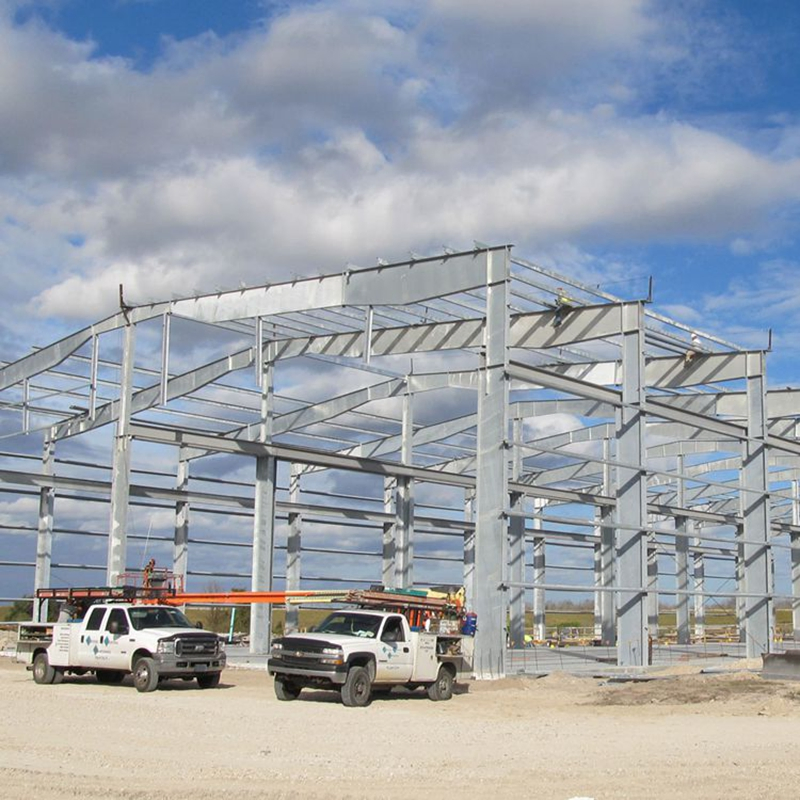

| Primary Frame | Welded or hot-rolled H-Beams. |
| Purlin Options | C/Z purlins in thicknesses of 2.0mm, 2.2mm, 2.5mm, and 3.0mm. |
| Bracing Systems | Round steel bar, angle steel, or structural C-purlins. |
| Cladding & Coverage | Single corrugated steel sheets (0.12 - 1.2mm) or insulation sandwich panels (EPS, Rockwool, Glasswool, PU). Core thicknesses: 50mm, 75mm, 100mm, 150mm, 200mm. |
| Surface Finishes | Shot-blasting with anti-rust primers / epoxy zinc-rich coatings, or hot-dip galvanizing. |
| Building Type | Popular Sizes | Popular Height | Coverage Option | Gate Dimension |
|---|---|---|---|---|
| Steel Warehouse | 20m x 30m | 5m | Single corrugated steel sheets | 4m x 4.5m |
| Steel Workshop | 20m x 50m | 6m | Insulated roof panels with single steel sheet walls | 4.5m x 5m |
| Farm Storage / Shed | 16m x 36m | 4m | Single steel sheet or open sides (roof only) | 4m x 3.5m |

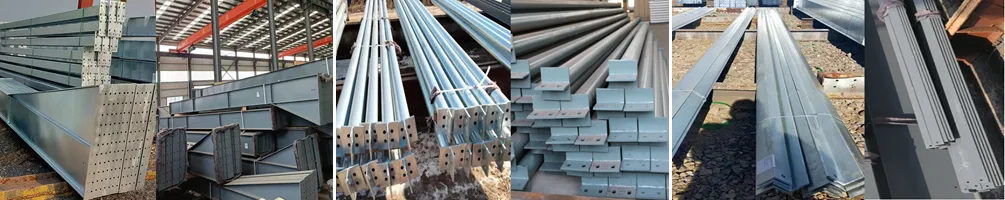

| Material Type | Grade & Surface Treatment | Key Application & Function |
|---|---|---|
| Column and Rafter | Q355 (S355JR/Gr50). Hot-dip galvanized or anti-rust painted. | Primary structural building skeleton frame. |
| Tie Beam / Eave Strut | Q235 (S235JR/A36). Round/square tubing finish. | Maintains longitudinal structural stability and limits frame sway. |
| X-Bracing Systems | Q235 (S235JR/A36). Round steel bars or angle steel. | Stabilizes the overall structure, tying the frame sections together. |
| Material Type | Specifications & Types | Applications & Advantages |
|---|---|---|
| Purlin & Wall Girt | C/Z shape, 80-300mm depth, 1.8-3.0mm thickness. Galvanized. | Support skeleton for exterior structural insulation and wall panels. |
| Corrugated Steel Sheet | PPGI Ral colors, 0.13-0.8mm thick. Types V840, V900 waves. | Exterior roof and wall coverage. Durable, weather-resistant. |
| Sandwich Insulation Panel | EPS, Rockwool, Glasswool, PU core insulation. PPGI skins. | Thermal insulation, fire resistance, noise dampening. Easy install. |
| Material Type | Grades & Configurations | Functionality |
|---|---|---|

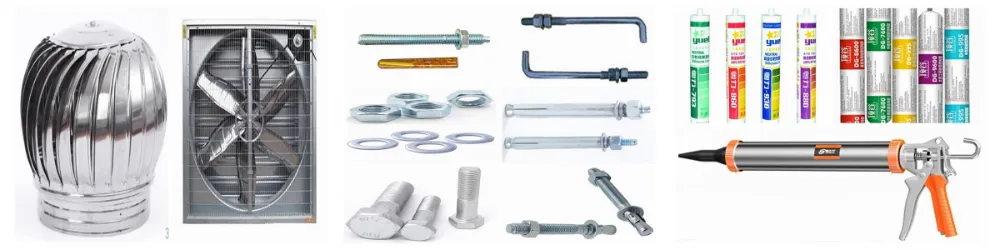

| Ventilation Facilities | Stainless steel natural-power roof fan turbines. | Promotes interior airflow and handles heat dispersion. |
| Structural Joint Bolts | Strength grades 10.9S, 8.8S, and 4.8S. Galvanized or stainless. | High-strength structural connections for column, rafter, and anchor points. |
| Silicone Glue & Fasteners | High grade neutral curing adhesive, rivets, self-tapping screws. | Sealing flashings, fixing cladding, and ensuring weather tightness. |
To receive a tailored design and price quote, please define these specifications for our engineering team:
Our export division has been operating since 2007. Having a comprehensive understanding of international design norms and construction requirements allows us to optimize communication, deliver prompt revisions, and supply high-quality prefabricated structures globally.

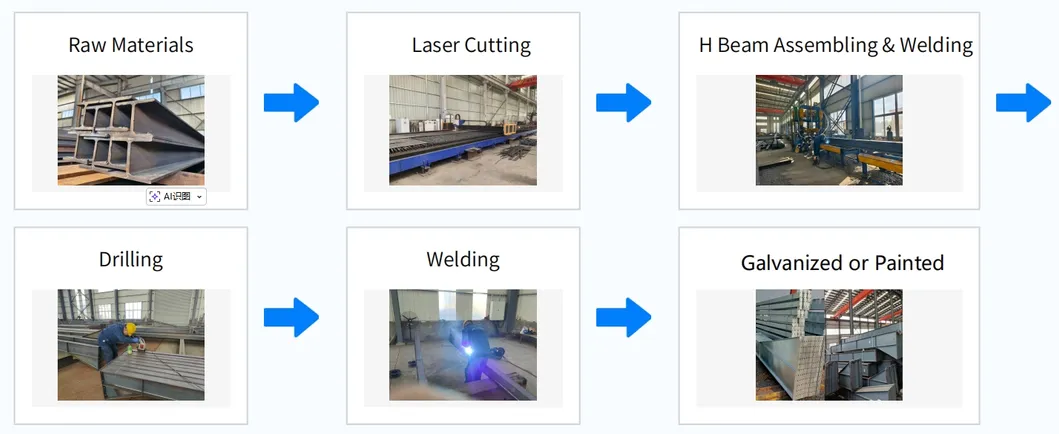

Our structure fabrication facilities utilize two complete steel processing lines. We utilize specialized slitting processes to eliminate edge defects common in standard flame cutting, laser-cutting systems for precise dimensional accuracy, and 3D H-beam drilling machines to ensure exact alignment of structural bolt connections. Our fabrication line capabilities extend to customized C/Z structural steel profiles, colored corrugated steel sheets, and composite sandwich panels to support projects worldwide.
Our production facilities support an annual capacity of:

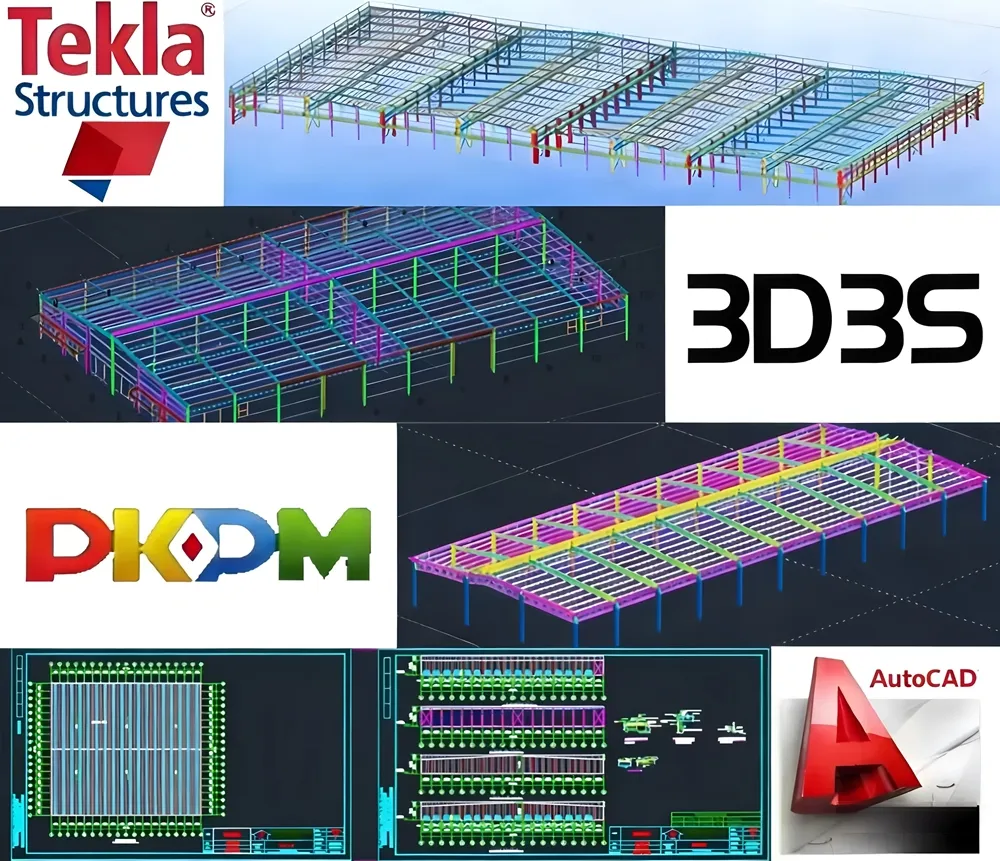

From early concept layout configurations to logistics planning, we offer complete support. Clients receive a comprehensive design, progress video reporting during production, physical laboratory material reports, and detailed structural blueprints to coordinate building assemblies successfully.

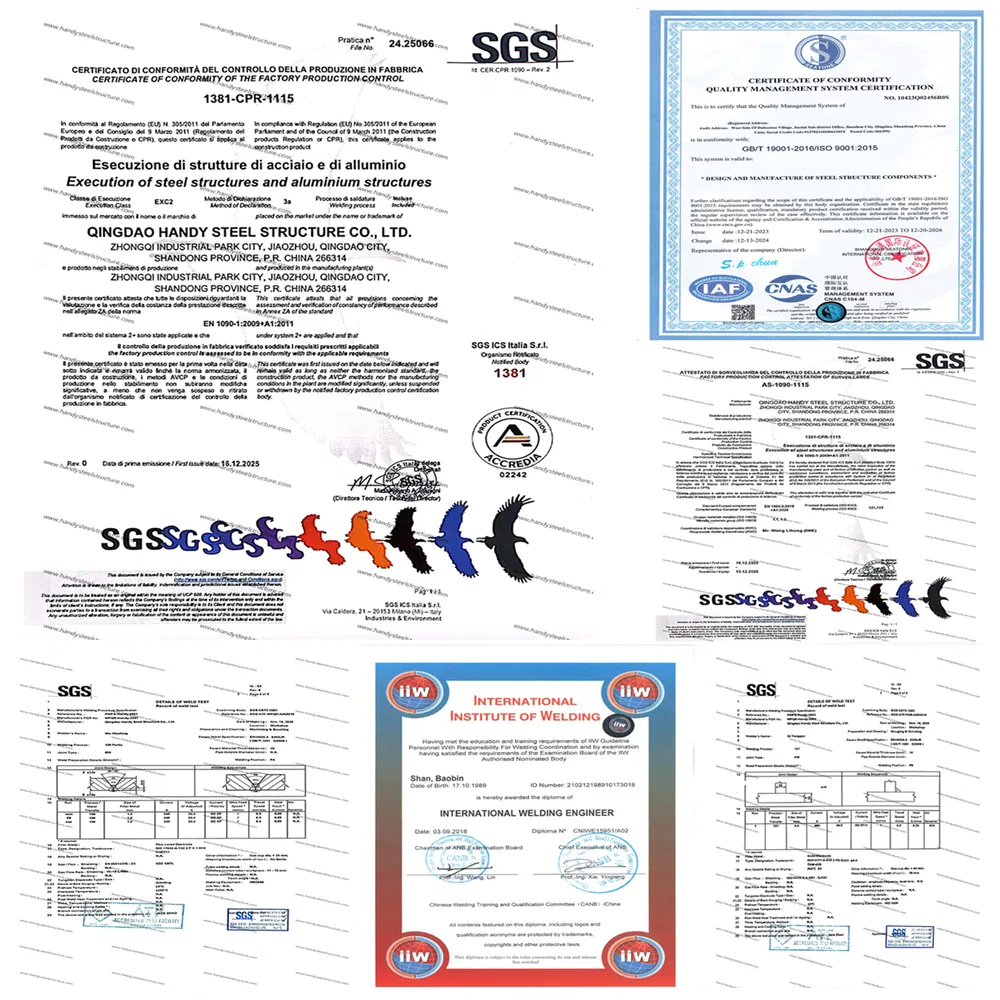

Our operations comply with global quality standards, verified by international inspection bodies and standard certifications, including CE EN1090 EXC2, ISO9001, Bureau Veritas, and SGS approvals.
| Machine View | Equipment Name | Technical Introduction |
|---|---|---|
 |
Steel Plate Laser Cutting Machine | High-precision laser processing reduces thermal distortion, maintains precise edges, and eliminates potential welding porosity. |
 |
Profile Laser Cutting Machine | Integrates cutting processes into a single-step setup, enhancing profile utilization rates, complex notch configurations, and structural fit-ups. |
 |
H-Beam Welding & Assembly Machine | Integrates H-profile assembly, welding, and alignment adjustments into a single workstation, reducing welding stress and structural frame distortion. |
