In today's fast-paced world, the need for efficient storage solutions is on the rise. With the growth of industries and businesses, the demand for warehouses has increased significantly. As a result, the construction of traditional warehouses made of concrete and wood has become a time-consuming and expensive process. This is where steel structure warehouses come in as a cost-effective and practical solution.

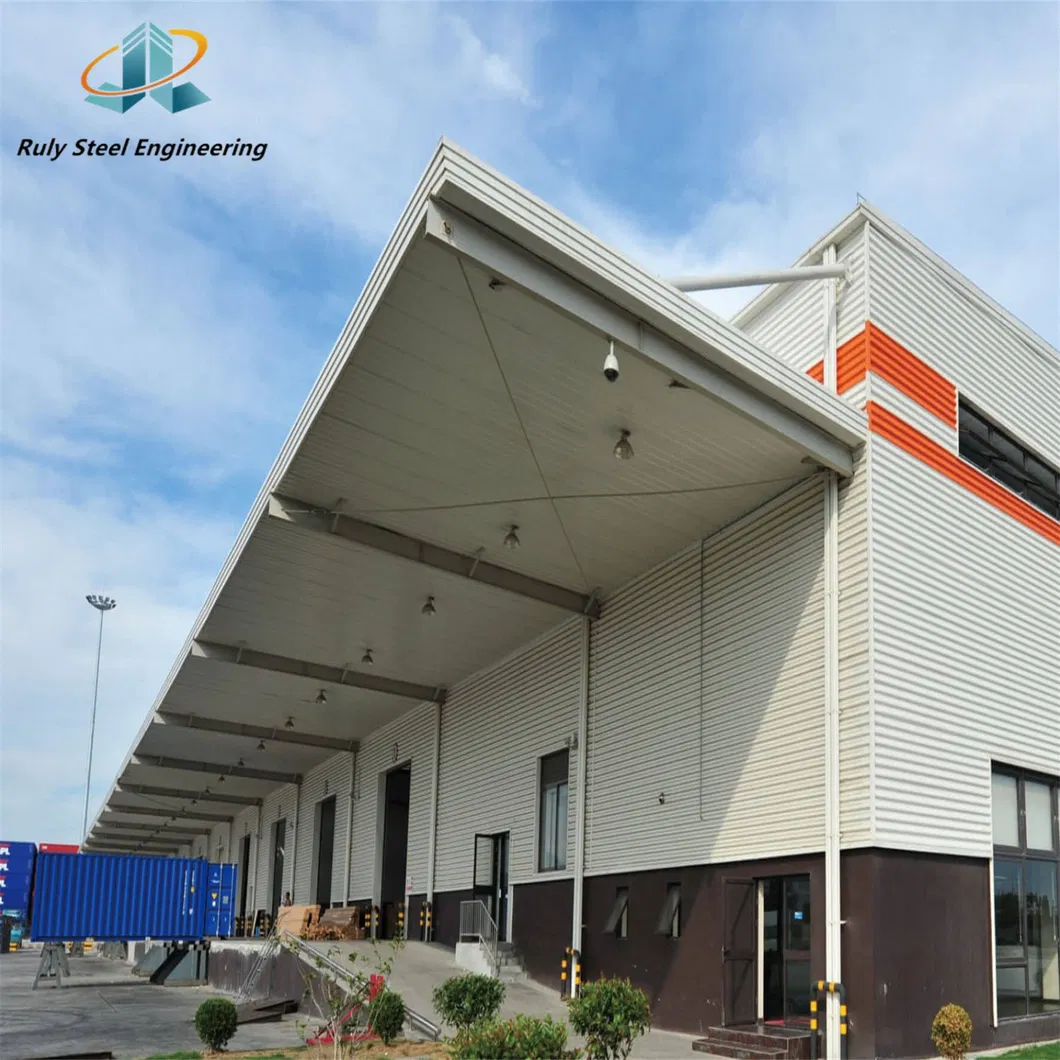

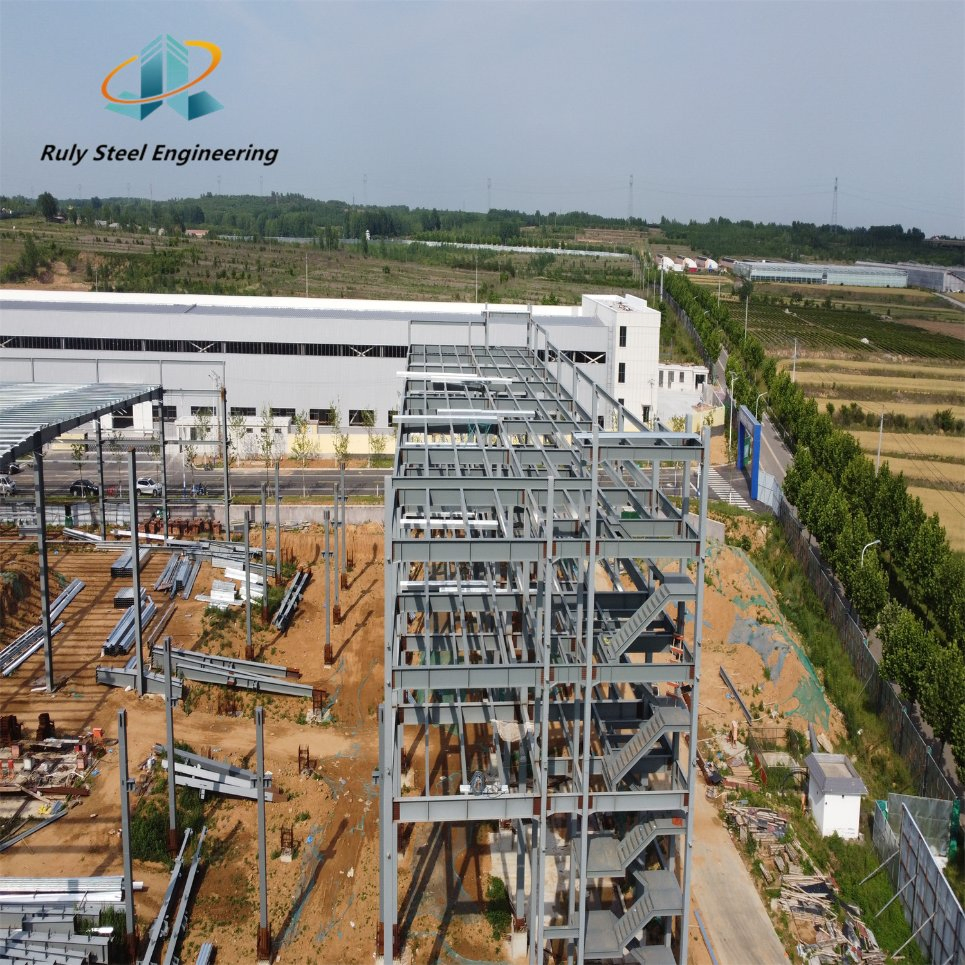

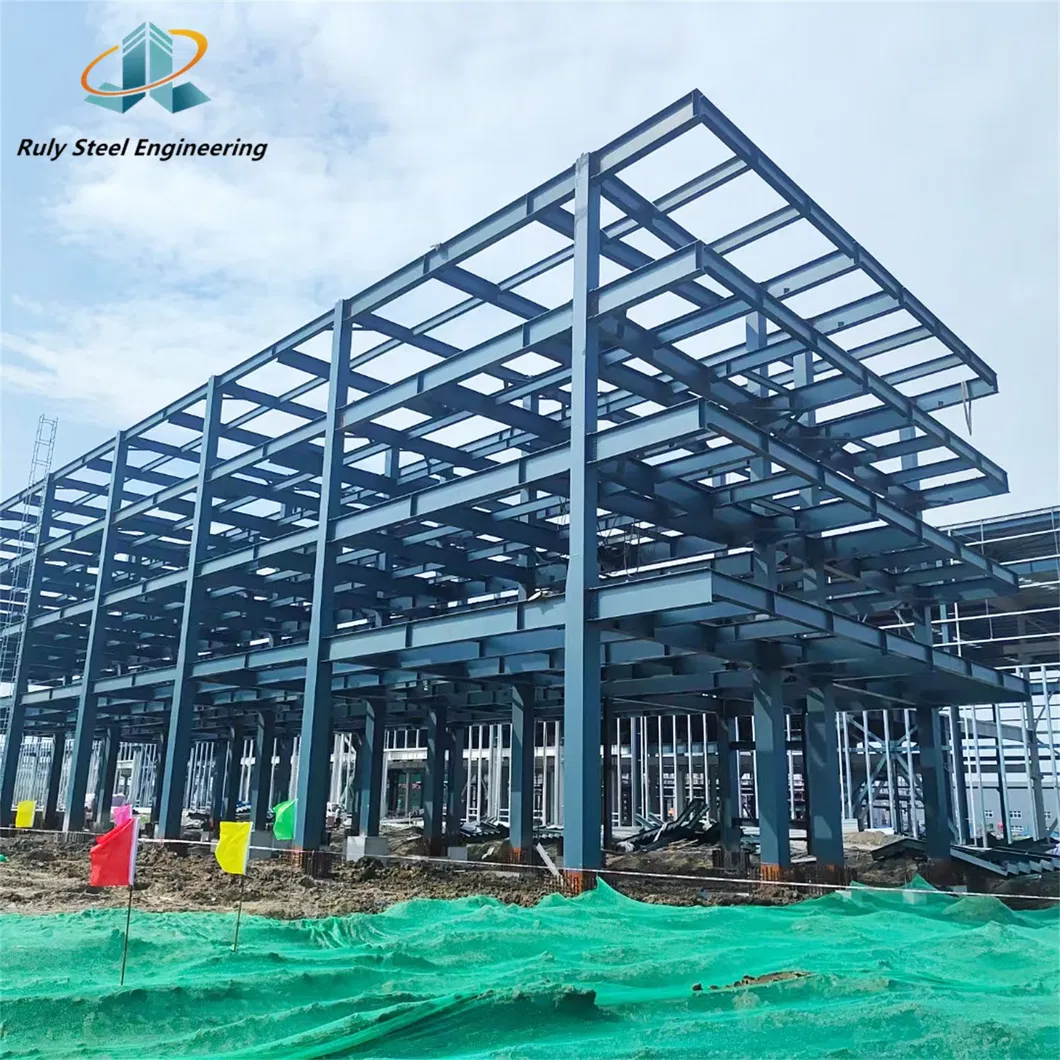

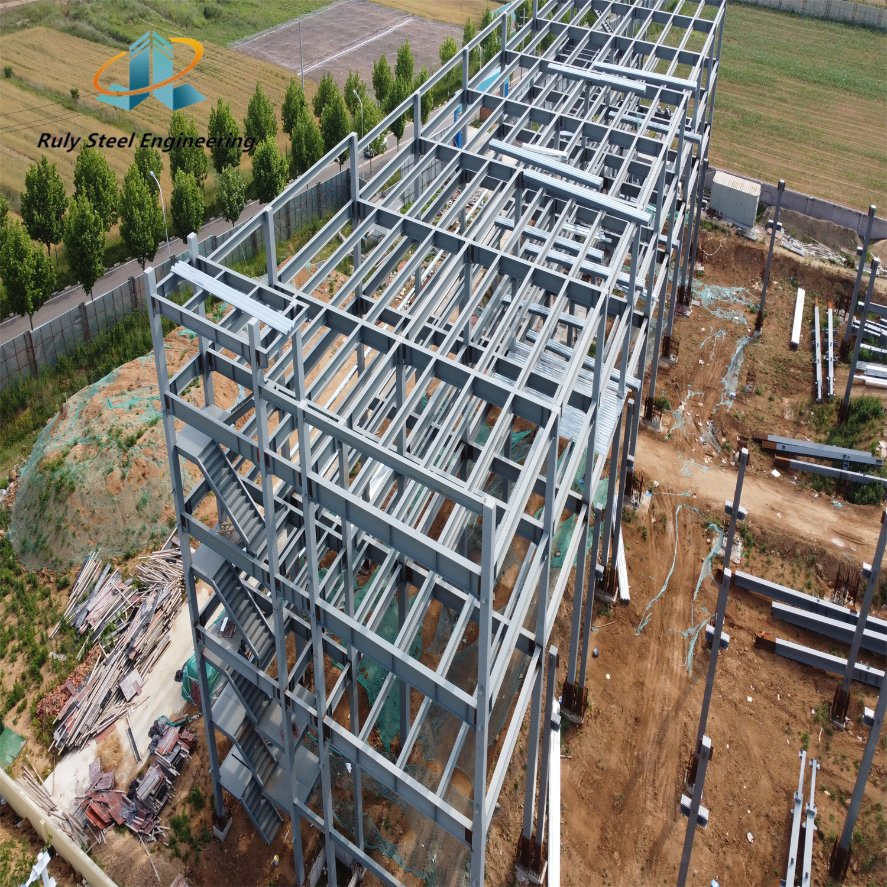

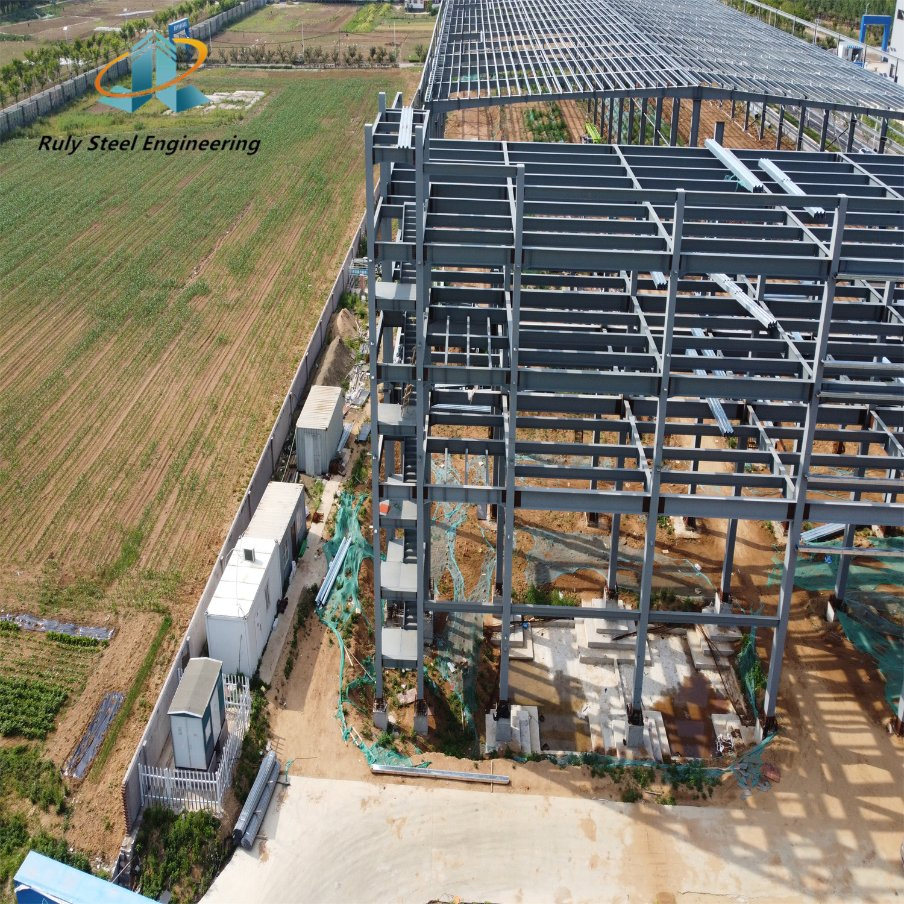

Steel structure warehouses are pre-engineered metal buildings that are designed to store a variety of goods and materials. They are made of high-quality steel and are known for their strength, durability, and versatility. These warehouses are easy to install and can be customized to meet specific storage requirements. This makes them a popular choice for businesses of all sizes.
One of the main advantages of steel structure warehouses is their cost-effectiveness. Traditional warehouses require a significant amount of time and money to construct. On the other hand, steel structure warehouses are prefabricated in factories and then assembled on-site. This not only reduces the construction time but also lowers the labor and material costs. Additionally, steel is a highly durable material, which means that these warehouses require minimal maintenance, resulting in long-term cost savings.
Another benefit of steel structure warehouses is their flexibility. The design of these warehouses allows for easy expansion or modification in the future. This is especially useful for businesses that are experiencing growth and need to increase their storage capacity. With traditional warehouses, expanding or modifying the structure can be a complex and expensive process. However, with steel structure warehouses, it can be done quickly and at a lower cost.
In addition to cost-effectiveness and flexibility, steel structure warehouses offer several other advantages. They are resistant to fire, termites, and other pests, making them a safe storage option for various types of goods. They are also environmentally friendly, as steel is a recyclable material. This makes steel structure warehouses a sustainable choice for businesses looking to reduce their carbon footprint.
| Category | Component Name | Specification / Material Details |
|---|---|---|
| Steel Frame | H Section Steel | Q235/Q345 steel plate thickness: 8-30mm |
| Welding | Automatic submerged arc welding | |
| Rust Removal | Sand blasting SA 2.5 | |
| Surface Finish | Alkyd paint or galvanized | |
| Intensive Bolt | M20, Grade 10.9 | |
| Supporting System | Angle Brace | L50x4, Steel Q235, processed and painted |
| Horizontal Brace | Φ20, Steel Q235, processed and painted | |
| Column Brace | Φ20, Steel Q235, processed and painted | |
| Tie Rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary Bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5, Steel Q235, galvanized and painted |
| Roof Panel | Sandwich panel or corrugated steel sheet | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge Cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down Pipe | Φ110 PVC | |
| Walls | Purlin | C160*60*2.5, Steel Q235, painted |
| Wall Panel | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge Cover | 0.4mm steel sheet profile trimming |

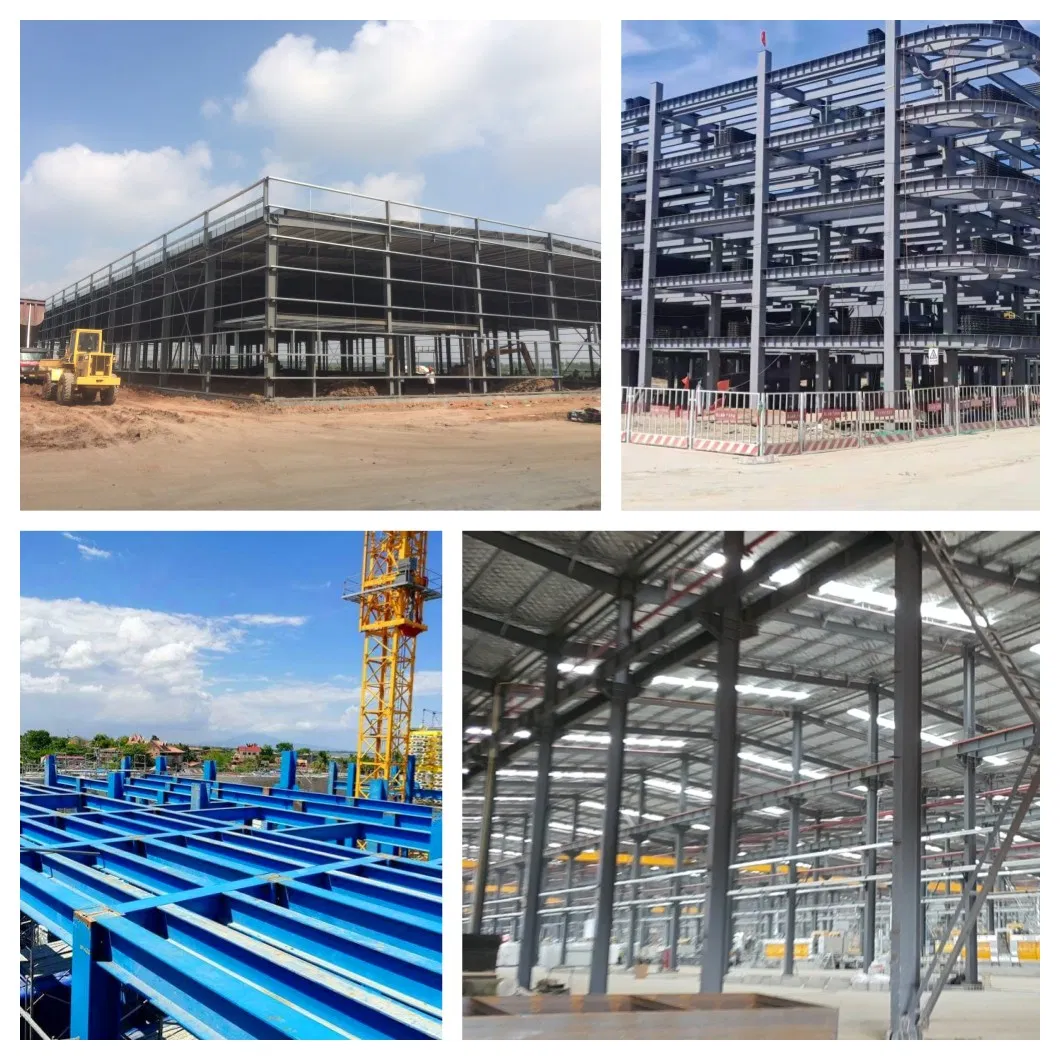

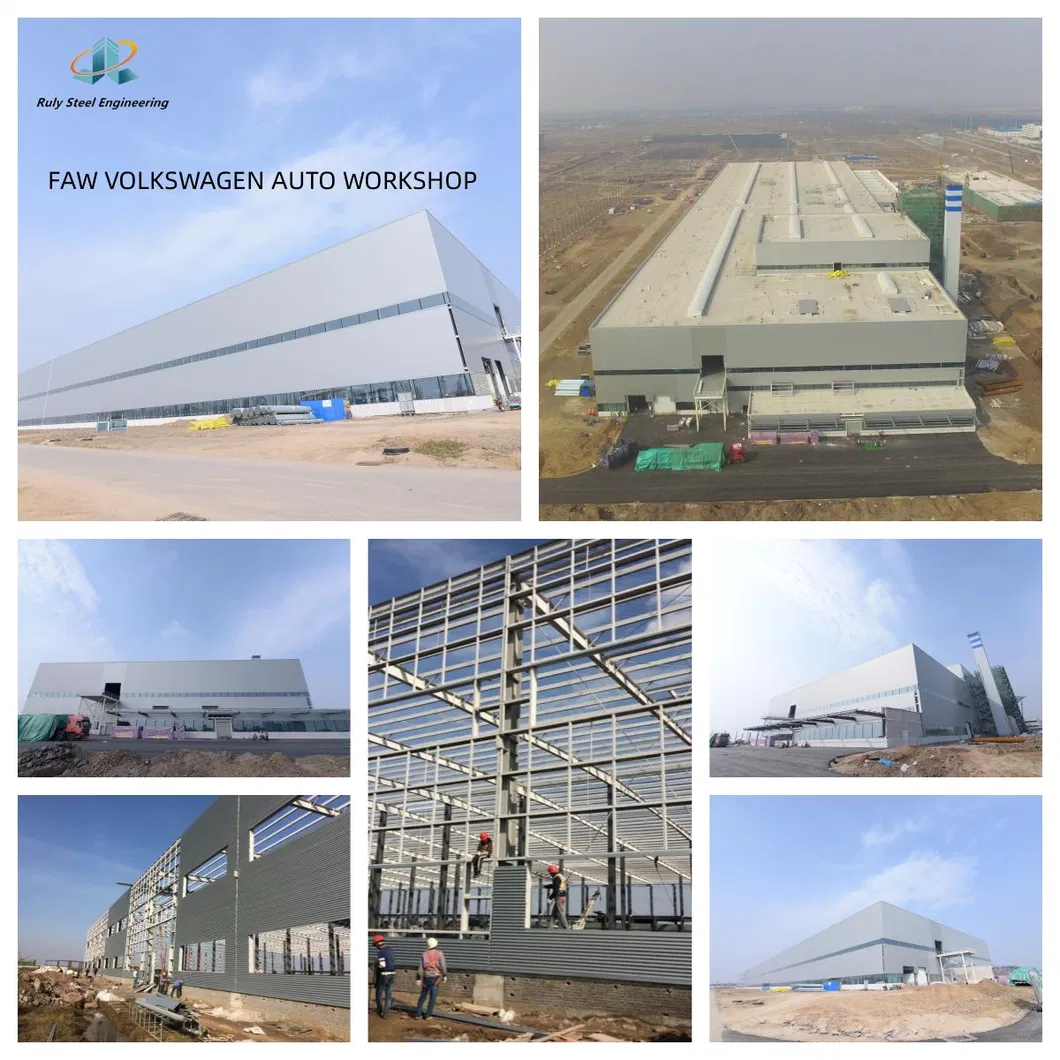

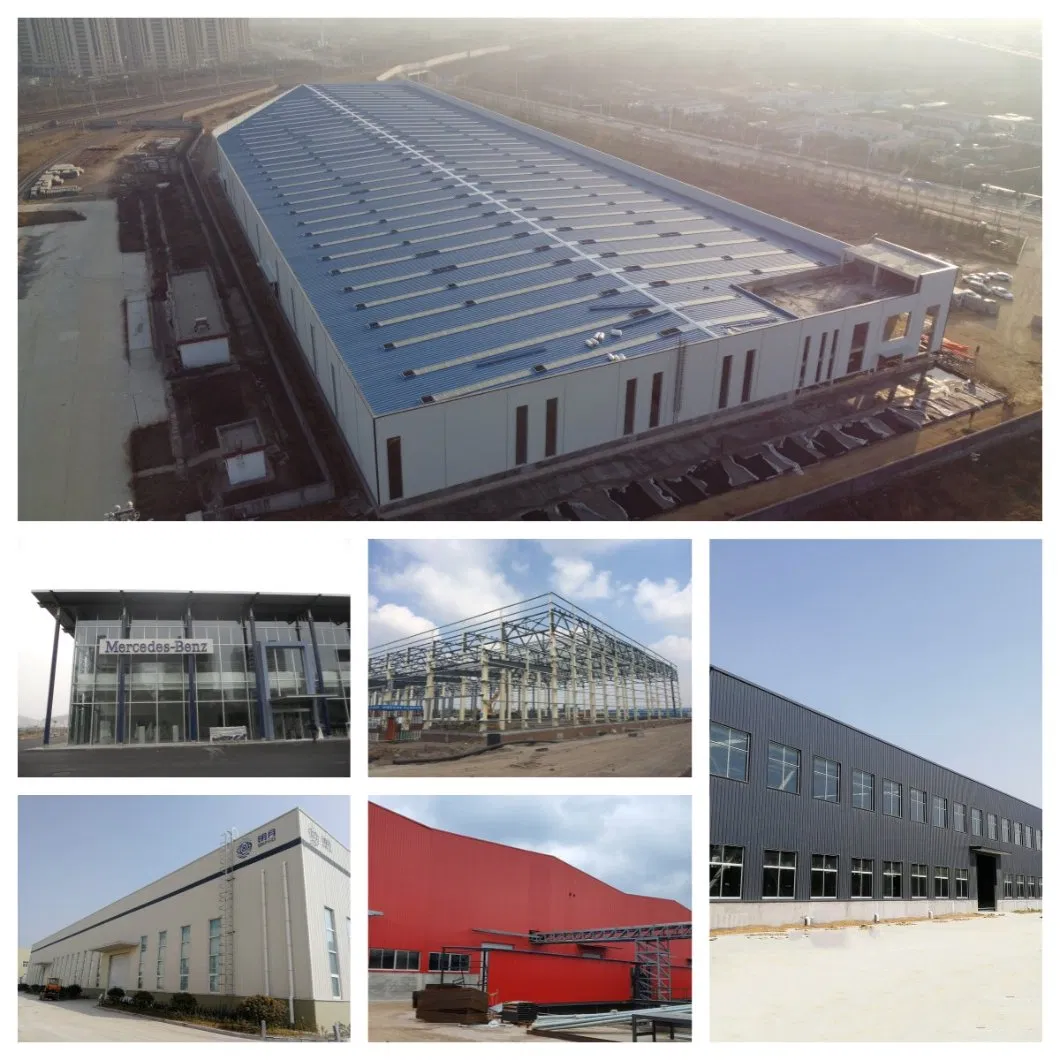

Our enterprise is a professional steel structure fabrication and engineering company that integrates steel structure design, research and development, manufacturing, and installation. Project types include prefabricated steel workshops, warehouses, logistics parks, civil building systems, high-rise residential buildings, exhibition centers, stadiums, airport stations, bridges, power plants, chemical plants, oil & gas structures, and mining infrastructure.

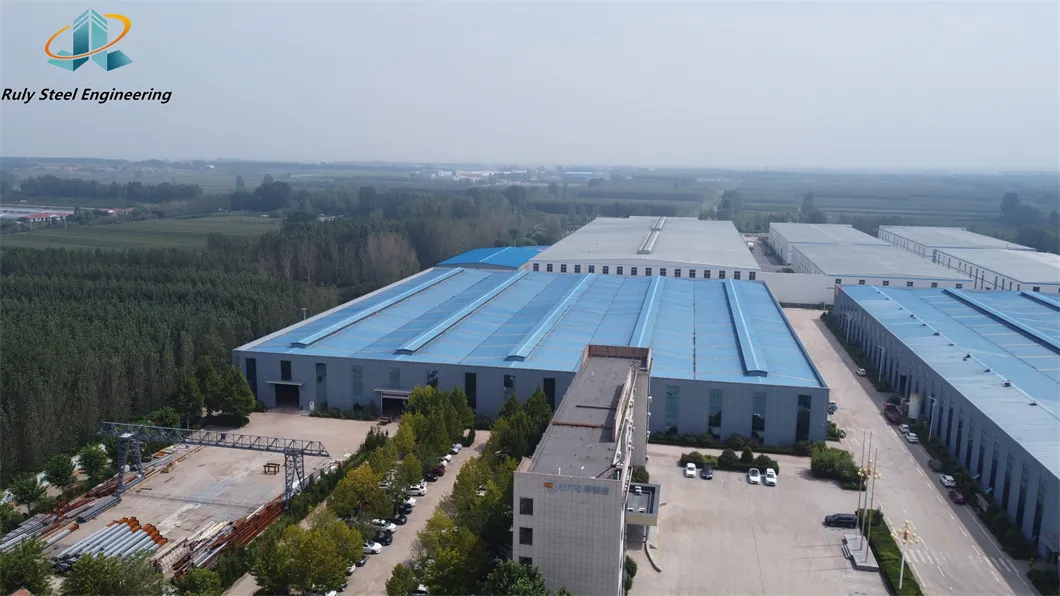

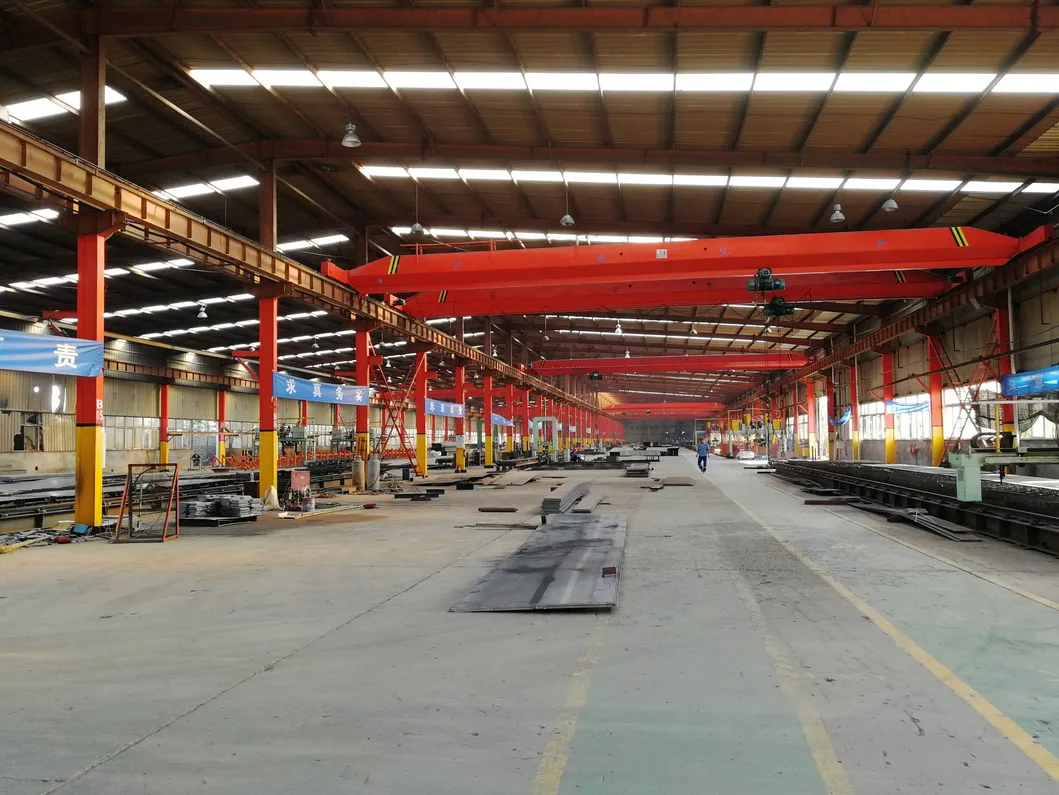

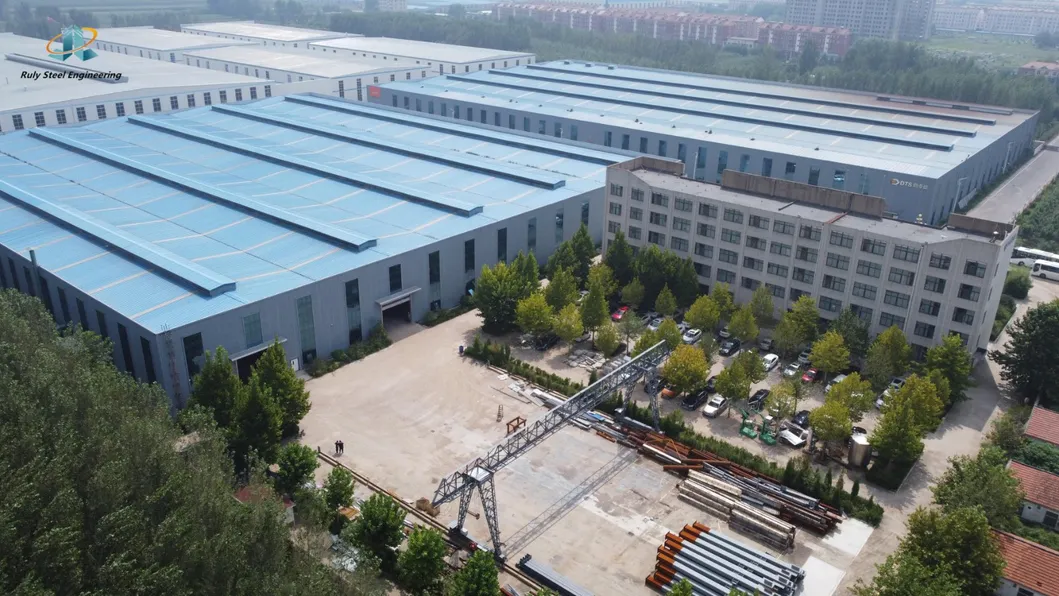

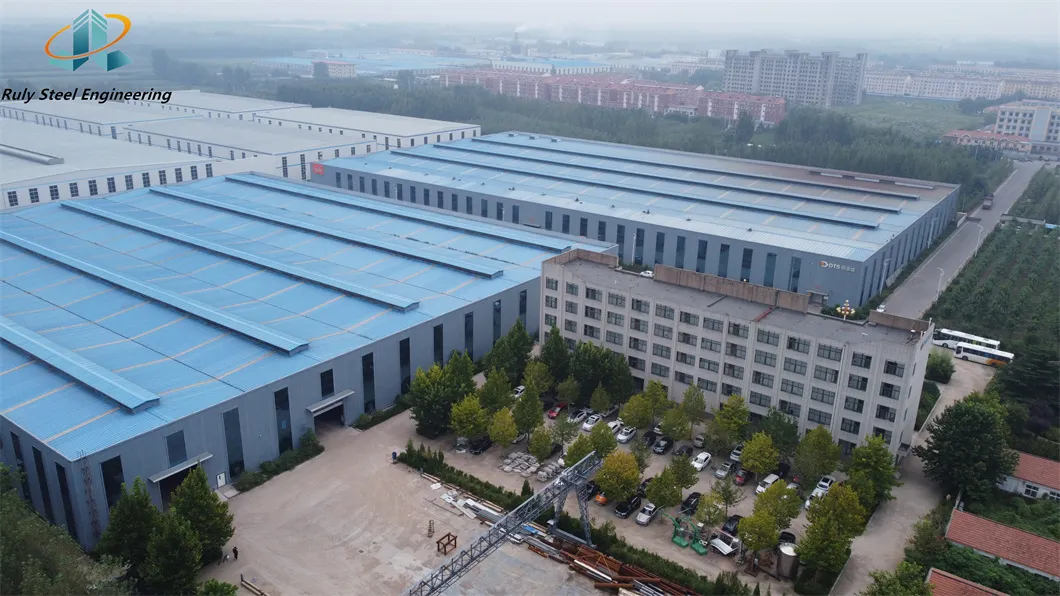

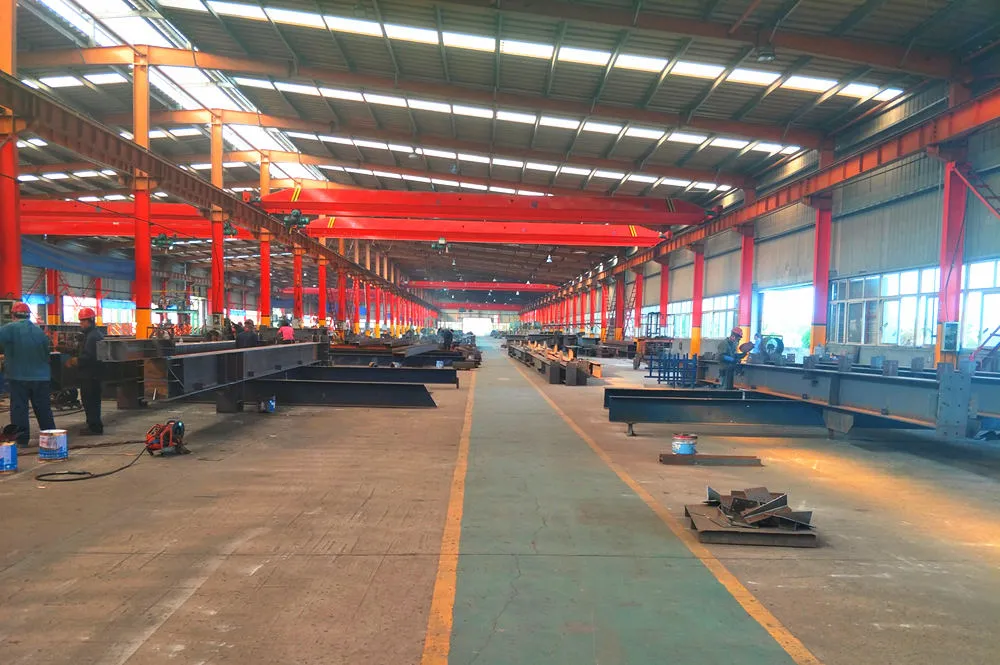

Our steel structure processing facility covers an area of 35,000 square meters, featuring a 20,000 square meter plant operated by more than 100 skilled professionals. The monthly production capacity for steel structures exceeds 1,500 tons. Our primary fabrication capabilities include light/heavy H steel, BOX steel, cross-shaped section steel, large-diameter submerged arc straight-weld pipes, steel model structures, C/Z purlins, and customized machining fitting components.

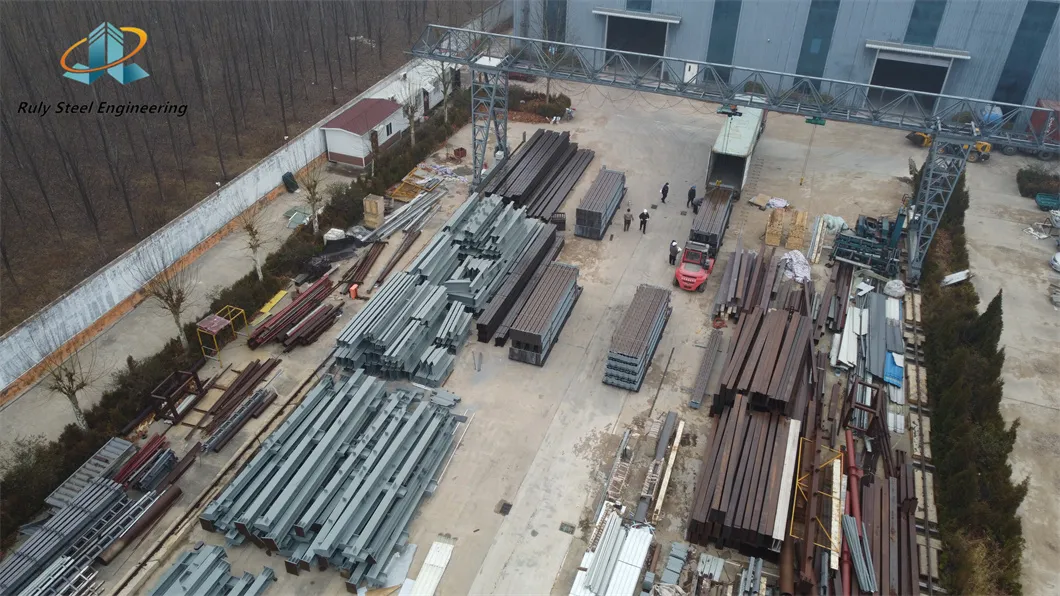

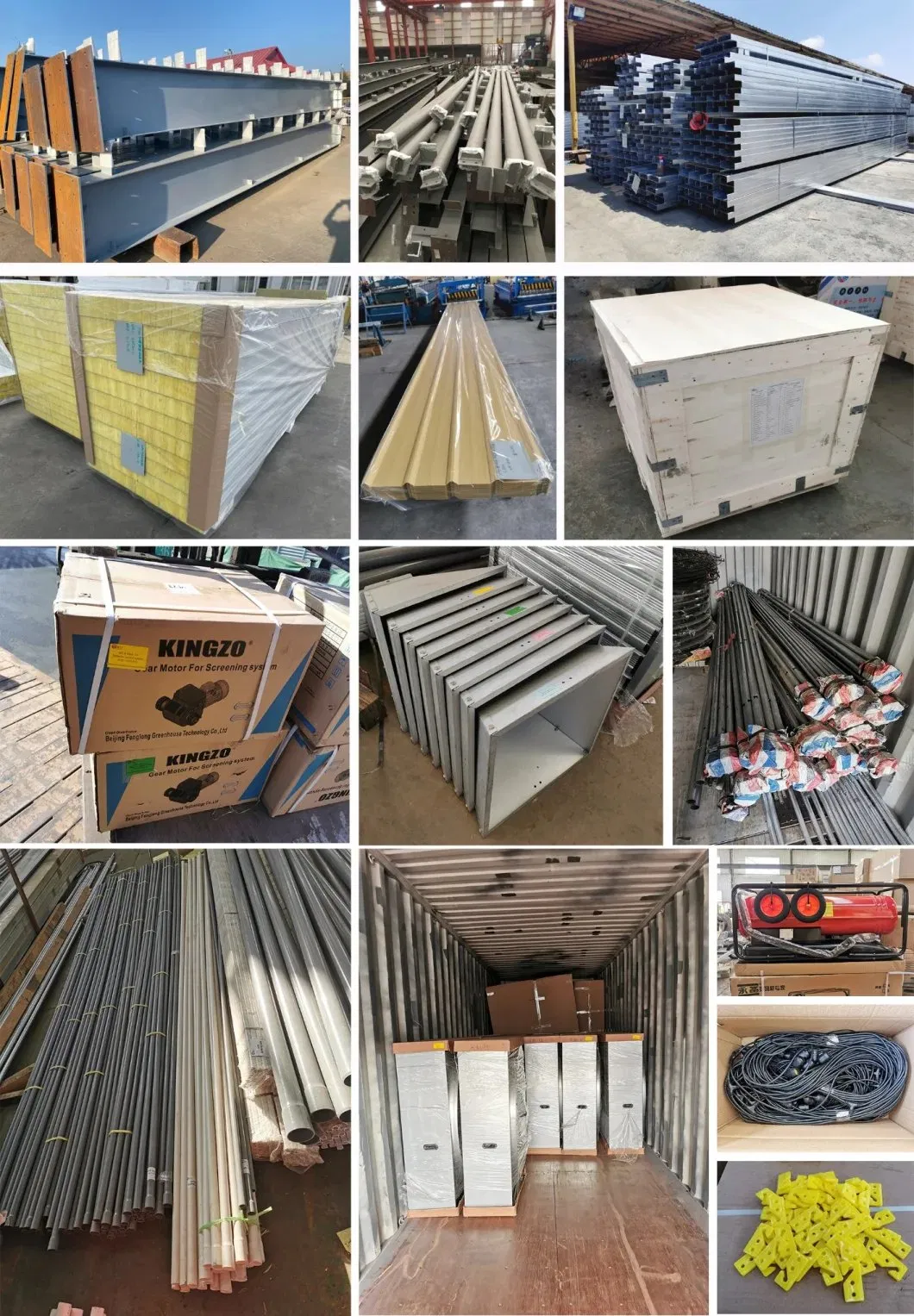

All structural components, wall and roof panels, high-strength bolts, and miscellaneous accessories are bundled and secured using professional packing standards optimized for ocean shipping. Everything is safely loaded directly into standard 40' HQ containers.
To prevent surface damage or structural bending, skilled shipping teams execute all container loading at our factory yard utilizing specialized cranes and forklifts.
Please refer to the following guide detailing key environmental parameters and dimensions required for engineering estimation. Providing these details helps us generate an accurate quote:
| No. | Project Parameter Detail Required | Customer Input Fields |
|---|---|---|
| 1 | Project Site Location | ____________________ Country, Region |
| 2 | Overall Dimensions (Length x Width x Height) | _______mm x _______mm x _______mm |
| 3 | Wind Load Parameters (Max Wind Speed) | _______kn/m², _______km/h, _______m/s |
| 4 | Snow Load Parameters (Max Snow Height) | _______kn/m², _______mm |
| 5 | Anti-Earthquake / Seismic Level | _______ level |
| 6 | Concrete Brick Wall Needed at Base? | If yes, height recommendation: [ ] 1.2m or [ ] 1.5m |
| 7 | Thermal Insulation Panel Requirements | EPS / Fiberglass Wool / Rockwool / PU sandwich panels (or single layer metal steel sheets for non-insulated structures) |
| 8 | Door Types, Quantity & Dimensions | _______ units, _______(W)mm x _______(H)mm |
| 9 | Window Types, Quantity & Dimensions | _______ units, _______(W)mm x _______(H)mm |
| 10 | Overhead Bridge Crane Requirements | If yes, _______ units, max capacity: _______ tons, lift height: _______m |
